WASHER LEVEL SWITCH SIGNAL CIRCUIT

Description

Transmits the washer level switch signal to the combination meter.


Diagnosis Procedure


1. CHECK WASHER LEVEL SWITCH SIGNAL CIRCUIT

1.Turn ignition switch OFF.
2.Disconnect combination meter connector and washer level switch connector.

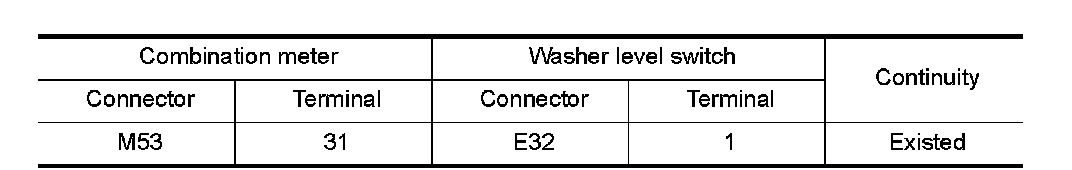

3.Check continuity between combination meter harness connector terminal and washer level switch harness connector terminal.

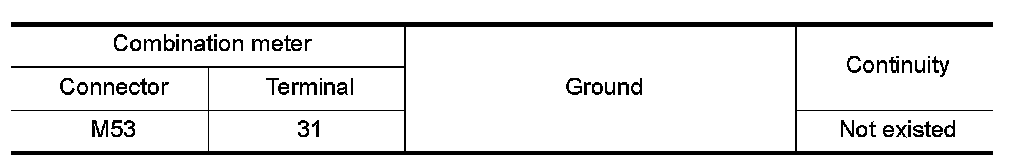

4.Check continuity between combination meter harness connector terminal and ground.





Is the inspection result normal?
YES- INSPECTION END
NO- Repair harness or connector.


Component Inspection


1. CHECK WASHER LEVEL SWITCH

1.Turn ignition switch OFF.
2.Disconnect washer level switch connector.

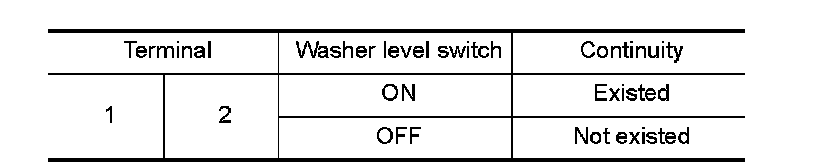

3.Check washer level switch.





Is the inspection result normal?
YES- INSPECTION END
NO- Replace washer level switch. Refer to "Removal and Installation" Service and Repair.
