Component Function Check

PARKING BRAKE SWITCH SIGNAL CIRCUIT

Component Function Check


1. CHECK UNIFIED METER AND A/C AMP. INPUT SIGNAL

1.Connect the CONSULT.

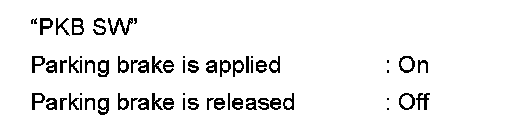

2.Select the "Data Monitor" for the "METER/M&A" and check the "PKB SW" monitor value.





- INSPECTION END
