G37 Convertible V6-3.7L (VQ37VHR)
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Fuel Gauge
>>
Locations
Fuel Gauge: Locations
METER SYSTEM

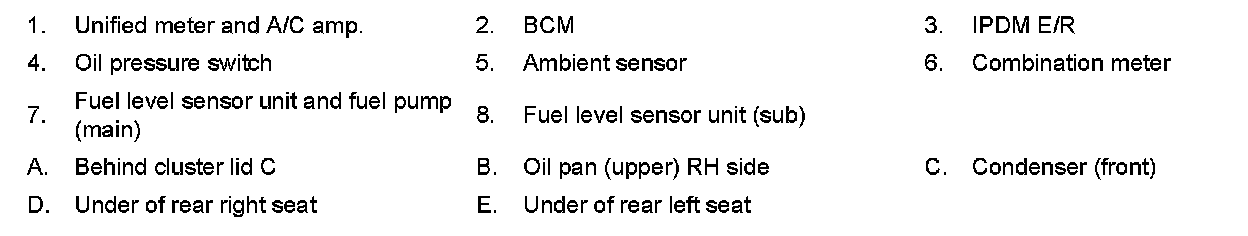

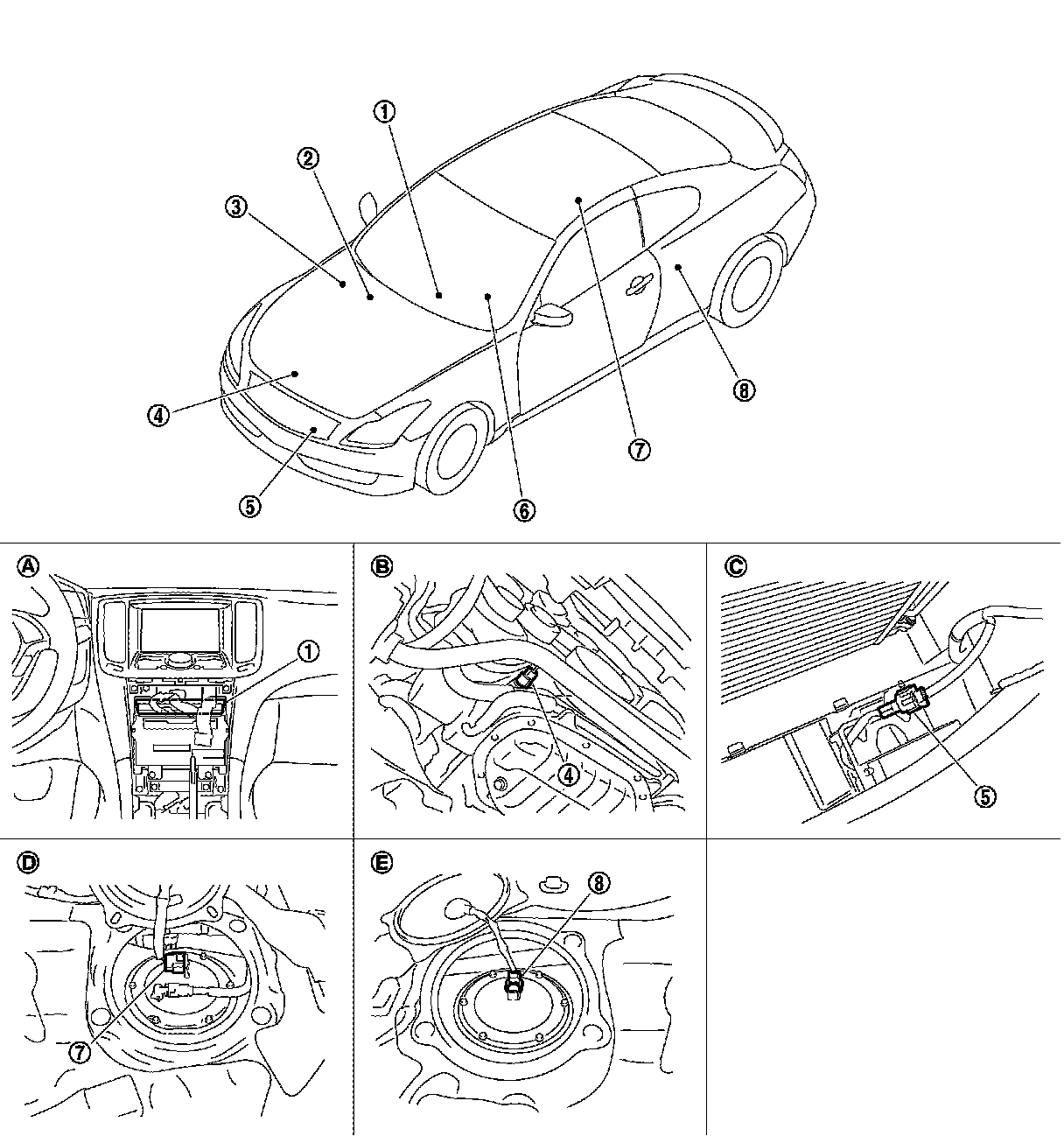

FUEL GAUGE : Component Parts Location
