Combination Meter




COMBINATION METER

Reference Value


VALUES ON THE DIAGNOSIS TOOL

Refer to "Reference Value" Warning Chime System.

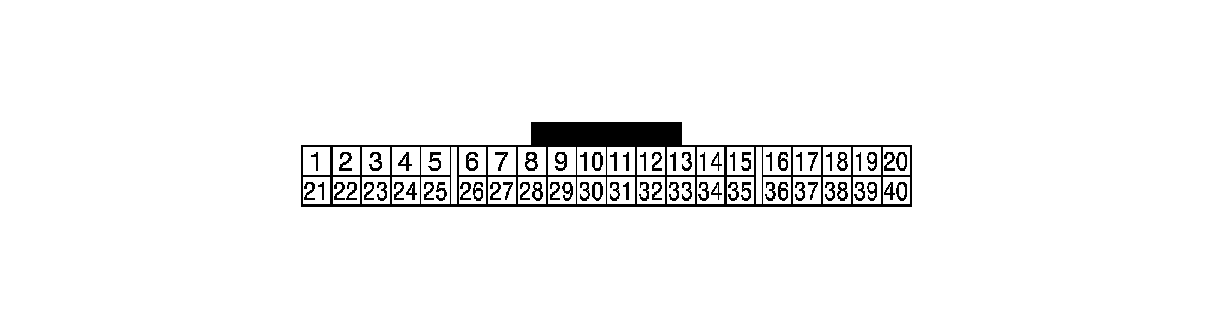

TERMINAL LAYOUT

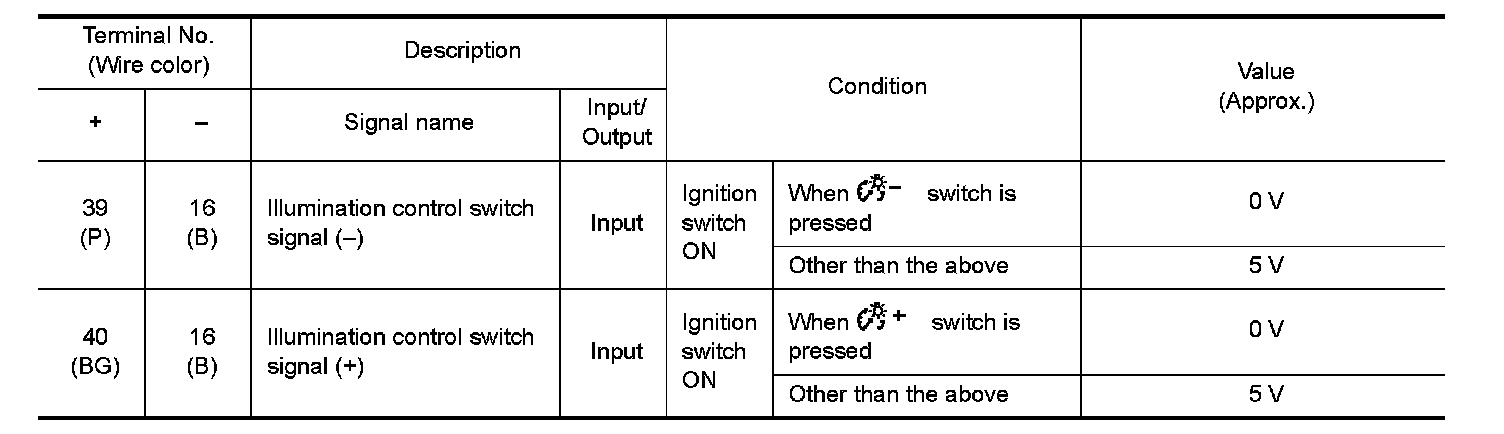

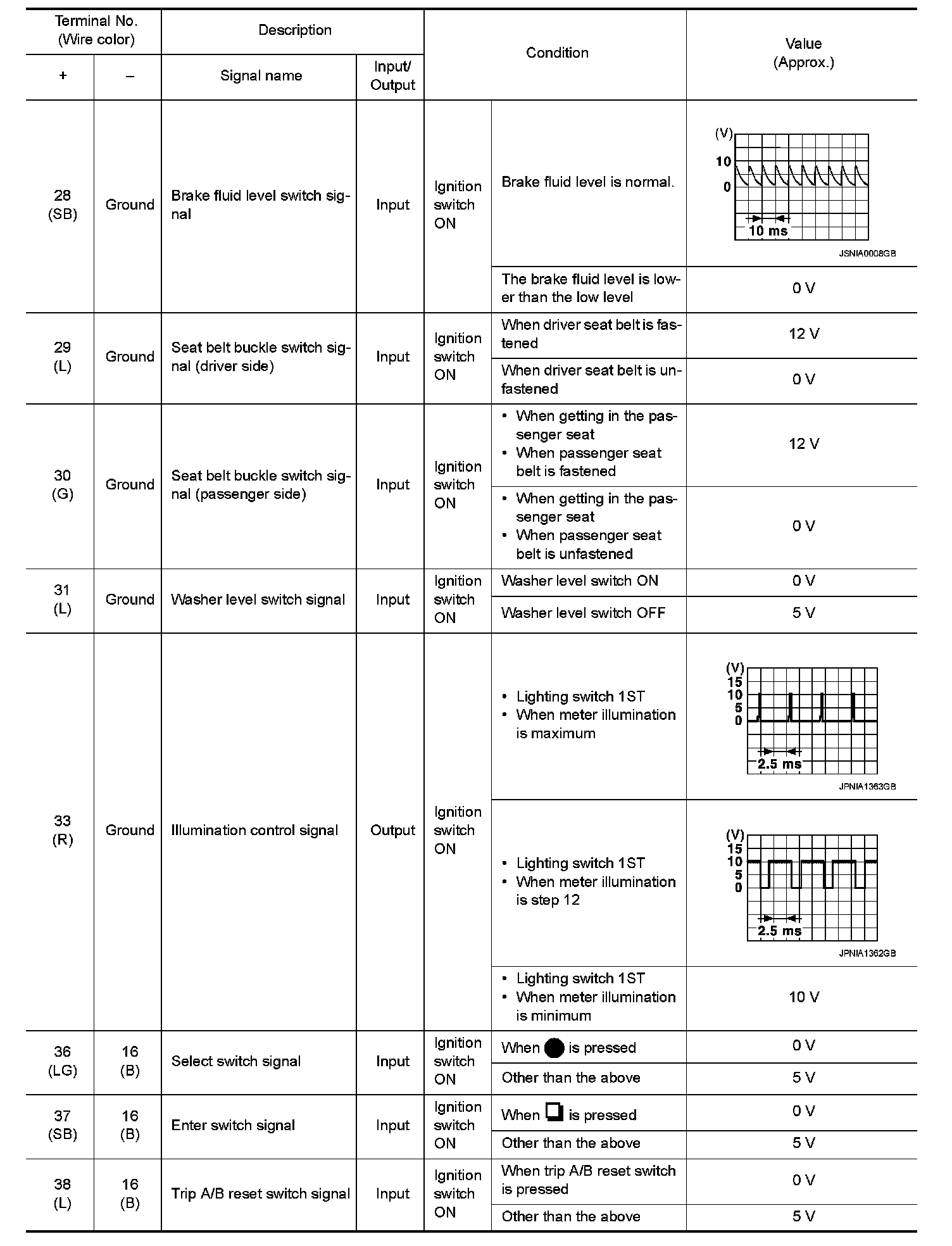

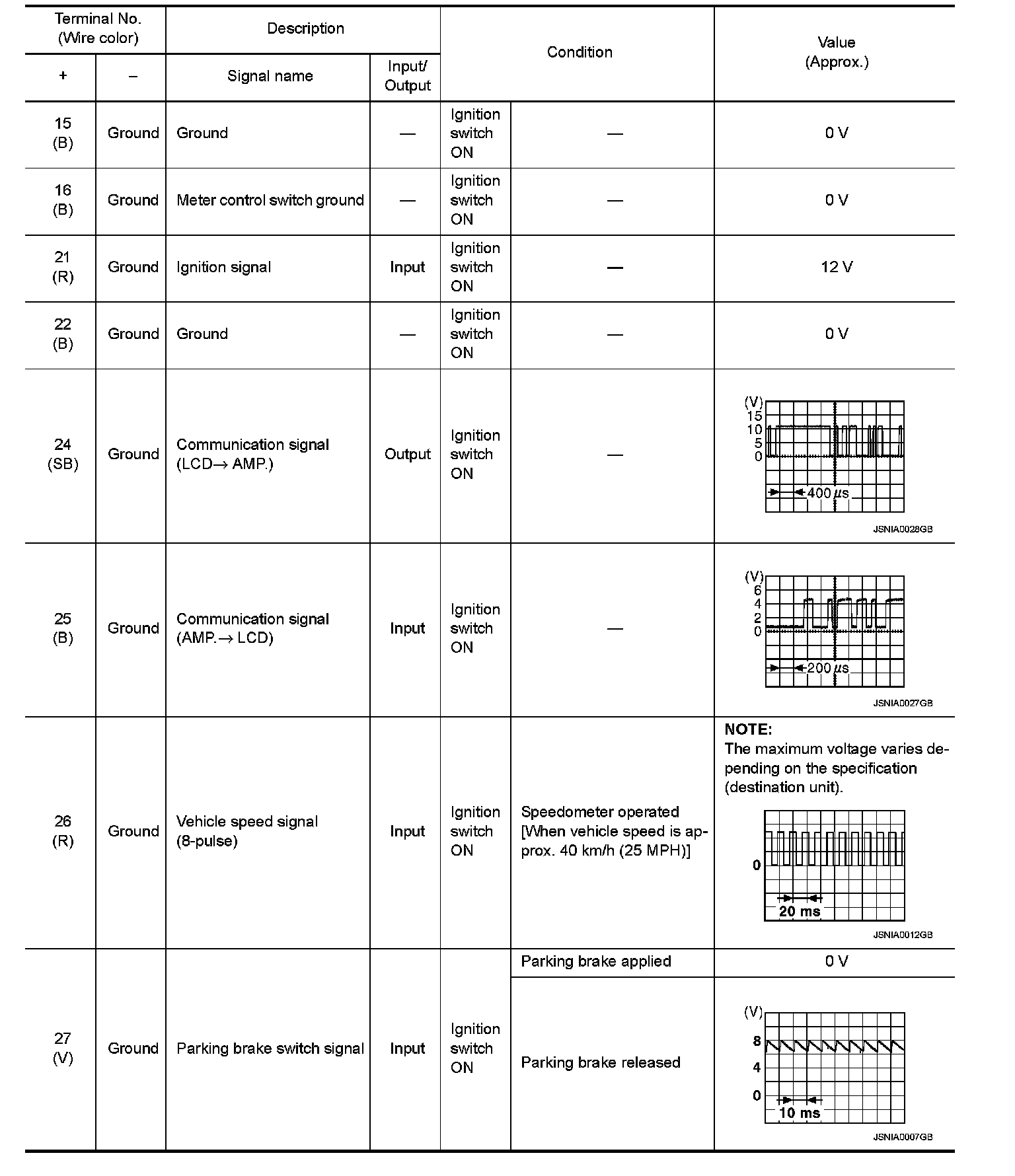

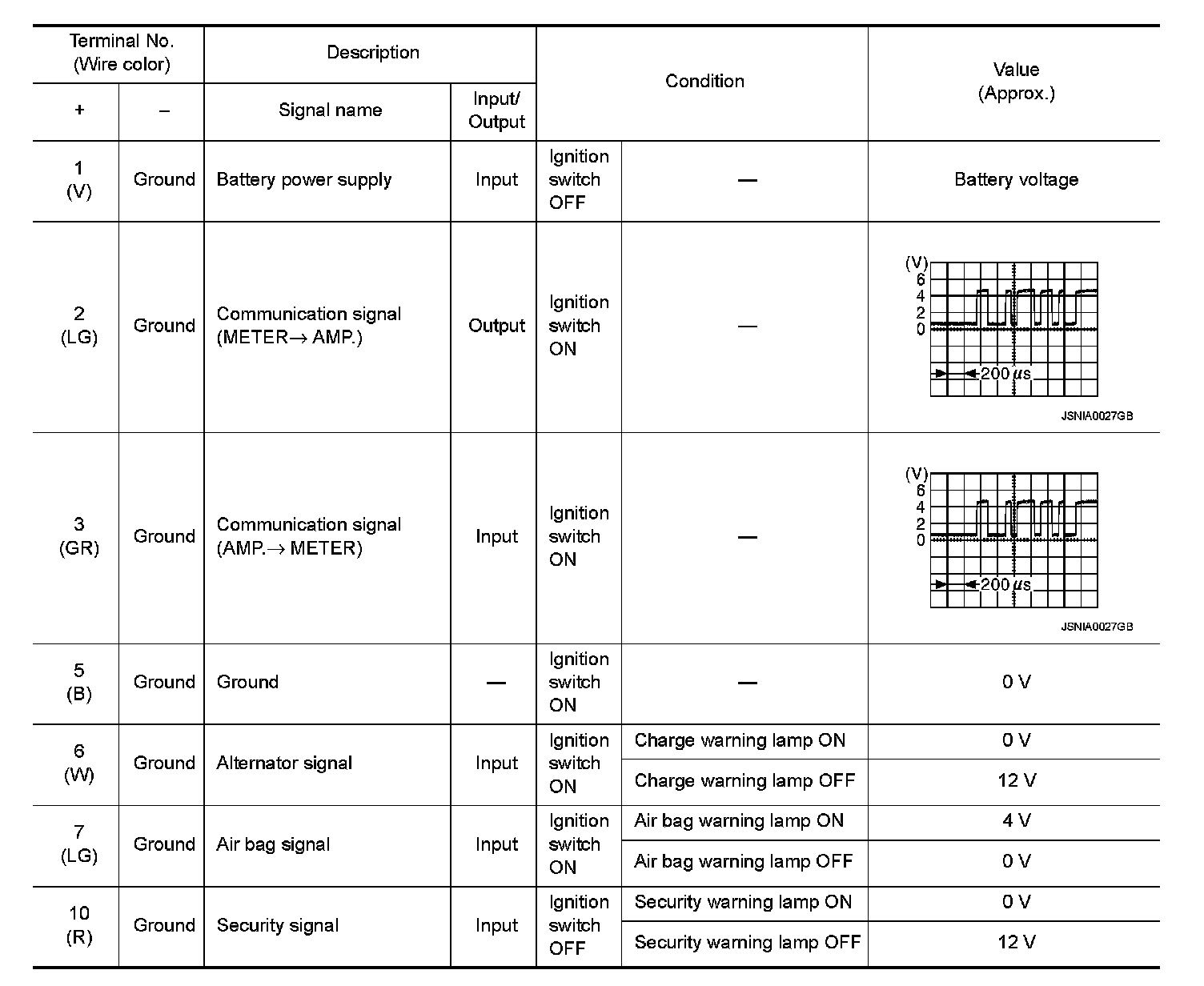

PHYSICAL VALUES
