Temperature Setting Trimmer

INSPECTION AND ADJUSTMENT

Temperature Setting Trimmer


DESCRIPTION

The trimmer compensates for differences in range of �3�C (�6�F) between temperature setting (displayed digitally) and temperature felt by customer.

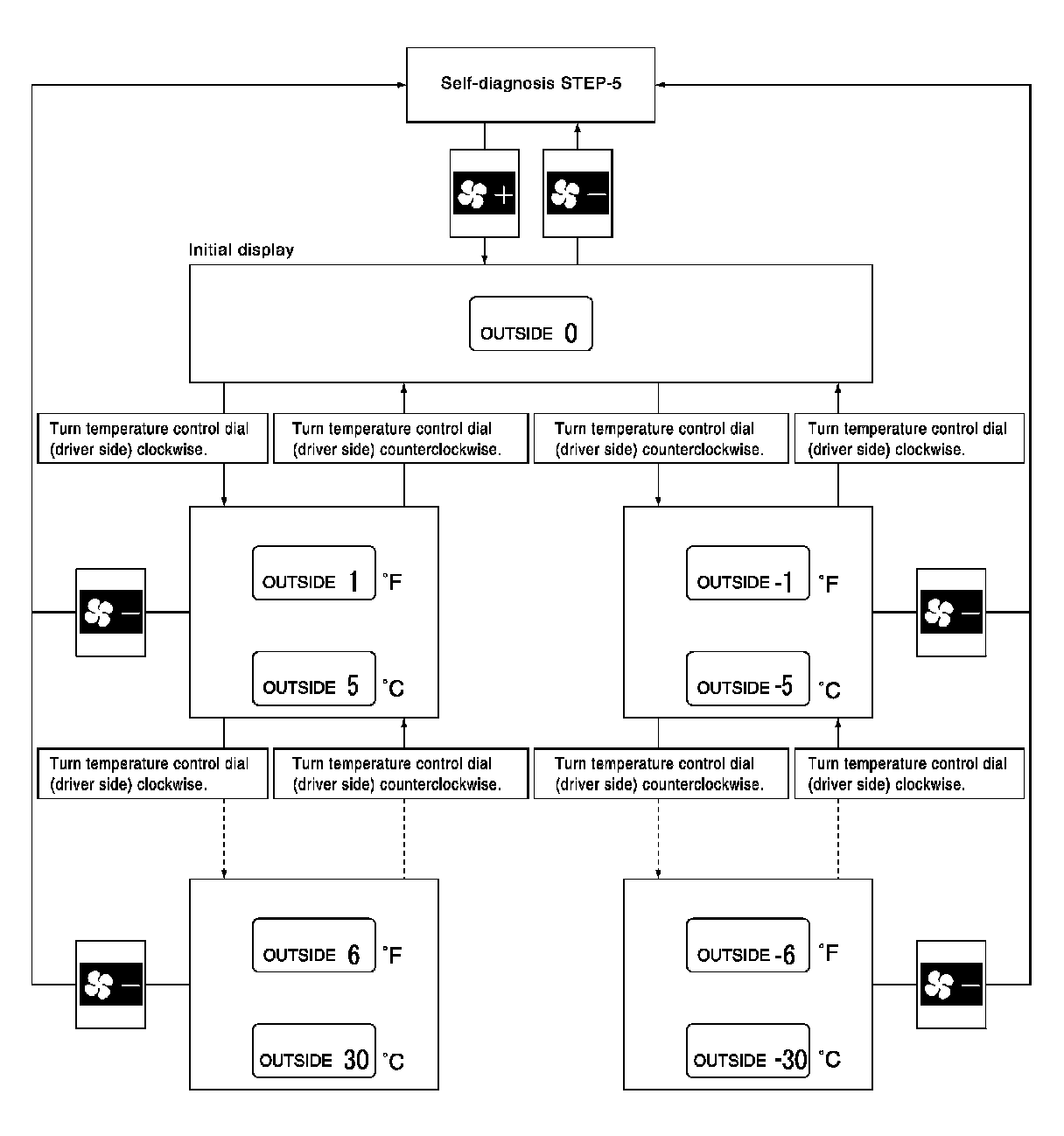

Operating procedures for this trimmer are as per the following:
1.Begin self-diagnosis STEP-5 mode. Refer to "Diagnosis Description" Scan Tool Testing and Procedures.
2.Press fan (UP: +) switch to set system in auxiliary mode.
3.Display shows "61" in auxiliary mechanism. It takes approximately 3 seconds to enable setting operation.
4.Turn temperature control dial (driver side) as desired. Temperature will change at a rate of 0.5�C (1.0�F)
each time a dial is turned.

CAUTION:
A decimal point is not indicated on the display.





NOTE:
When battery cable is disconnected or battery voltage is below 10 V, trimmer operation is canceled. Temperature set becomes that of initial condition.
