Exhaust Gas/Outside Odor Detecting Sensor Sensitivity Adjustment Function

INSPECTION AND ADJUSTMENT

WITH ACCS : Exhaust Gas/Outside Odor Detecting Sensor Sensitivity Adjustment Function


DESCRIPTION

According to customer's sense of smell, exhaust gas/outside odor detecting sensor sensitivity can be changed.

Operating procedures for this trimmer are as follows;
1.Begin self-diagnosis STEP-5 mode. Refer to "Diagnosis Description" Scan Tool Testing and Procedures.
2.Press fan (UP: +) switch two times to set system in auxiliary mode.

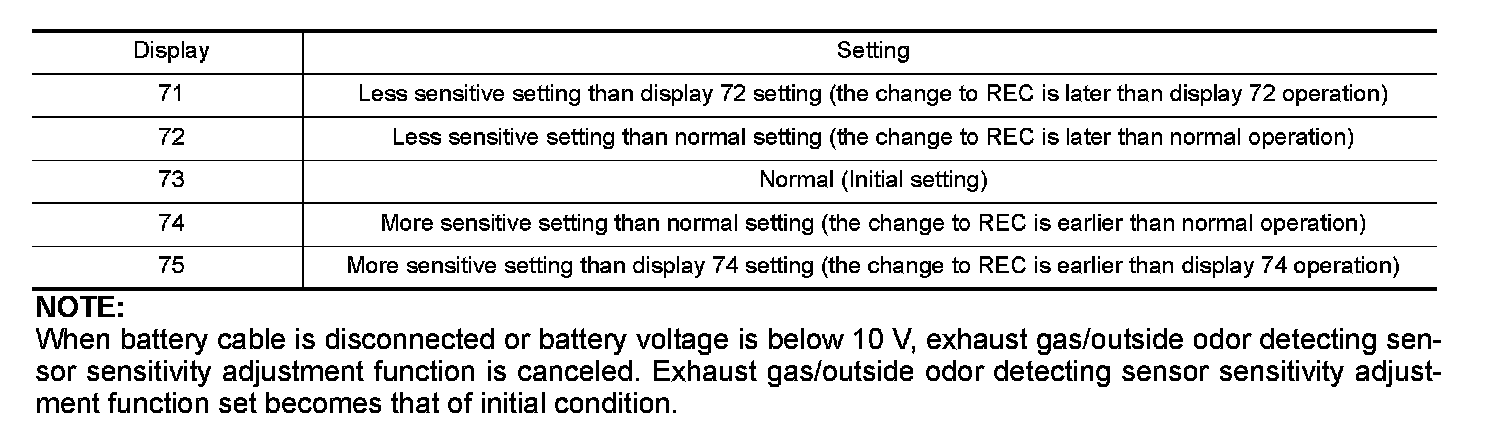

3.Turn temperature control dial (driver side) as desired.





NOTE:
When battery cable is disconnected or battery voltage is below 10 V, exhaust gas/outside odor detecting sensor sensitivity adjustment function is canceled. Exhaust gas/outside odor detecting sensor sensitivity adjustment function set becomes that of initial condition.
