Removal and Installation

CONDENSER

REFRIGERANT PRESSURE SENSOR : Removal and Installation


REMOVAL

1.Remove liquid tank. Refer to "Exploded View" Exploded View.

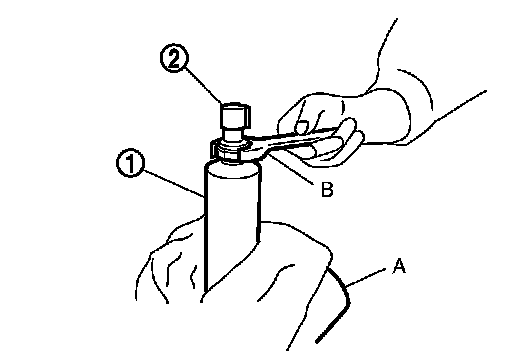

2.Fix the liquid tank (1) using a vise (A). Remove the refrigerant pressure sensor (2) using a wrench (B).

CAUTION:
Be careful not to damage liquid tank.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:
- Replace O-ring with new one. Then apply compressor oil to them when installing.
- Check for leakages when recharging refrigerant.
