Switches and Their Control Function

SWITCHES AND THEIR CONTROL FUNCTION

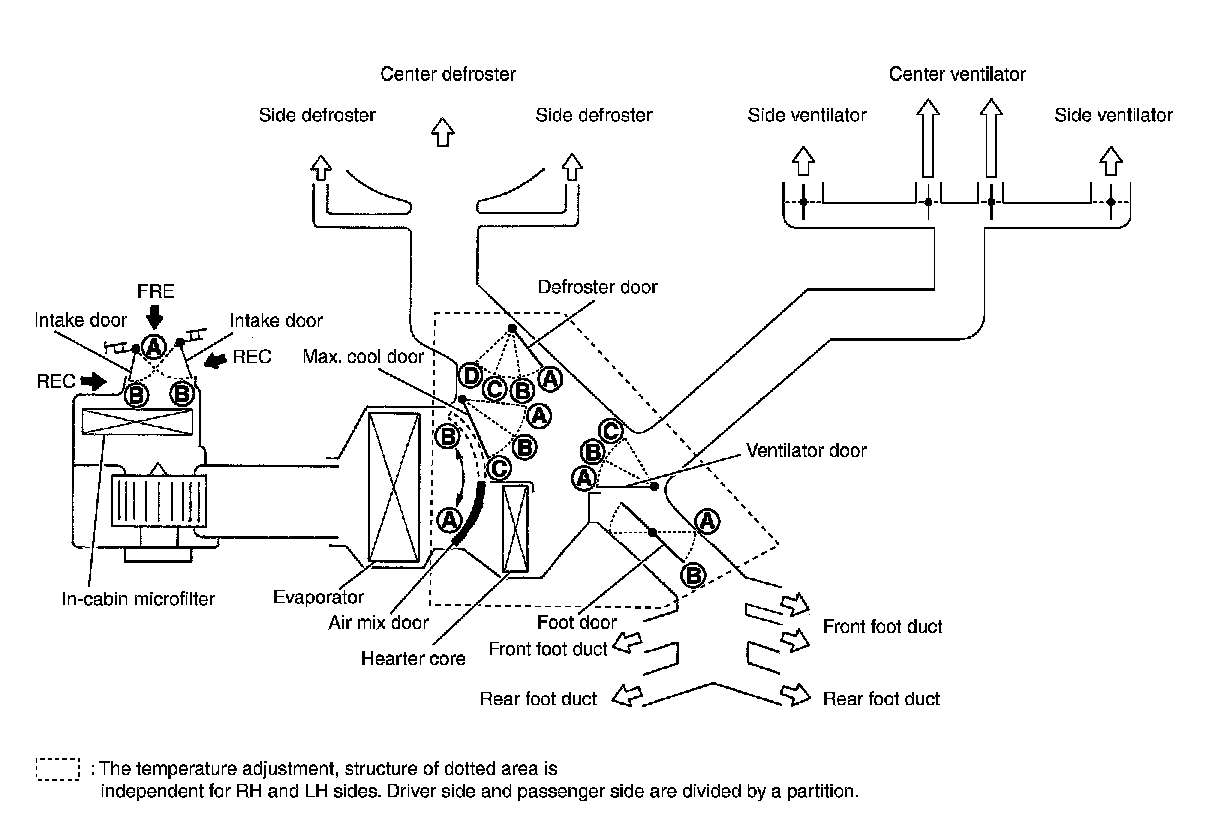

System Description

SWITCHES AND THEIR CONTROL FUNCTION

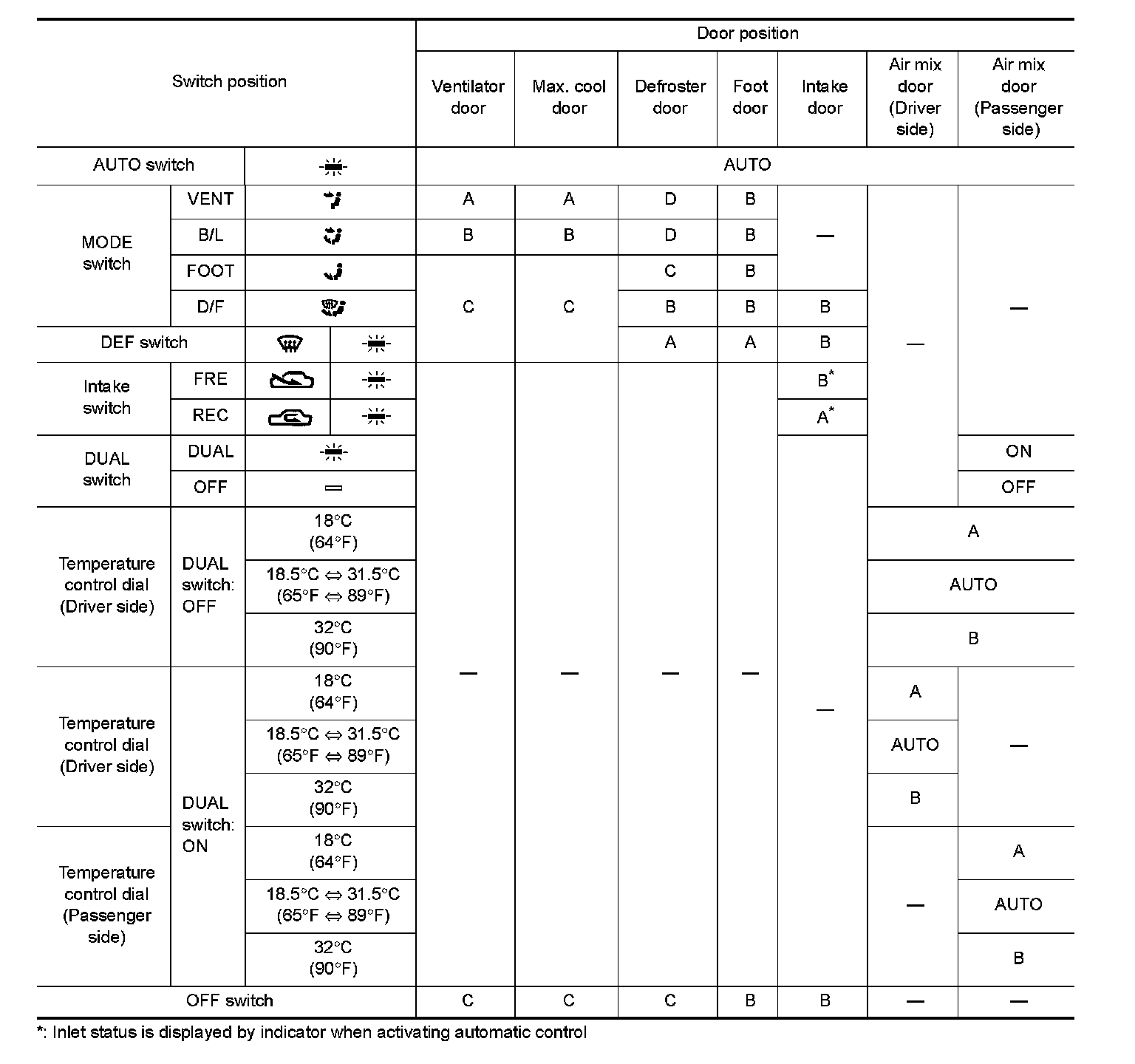

Without ACCS

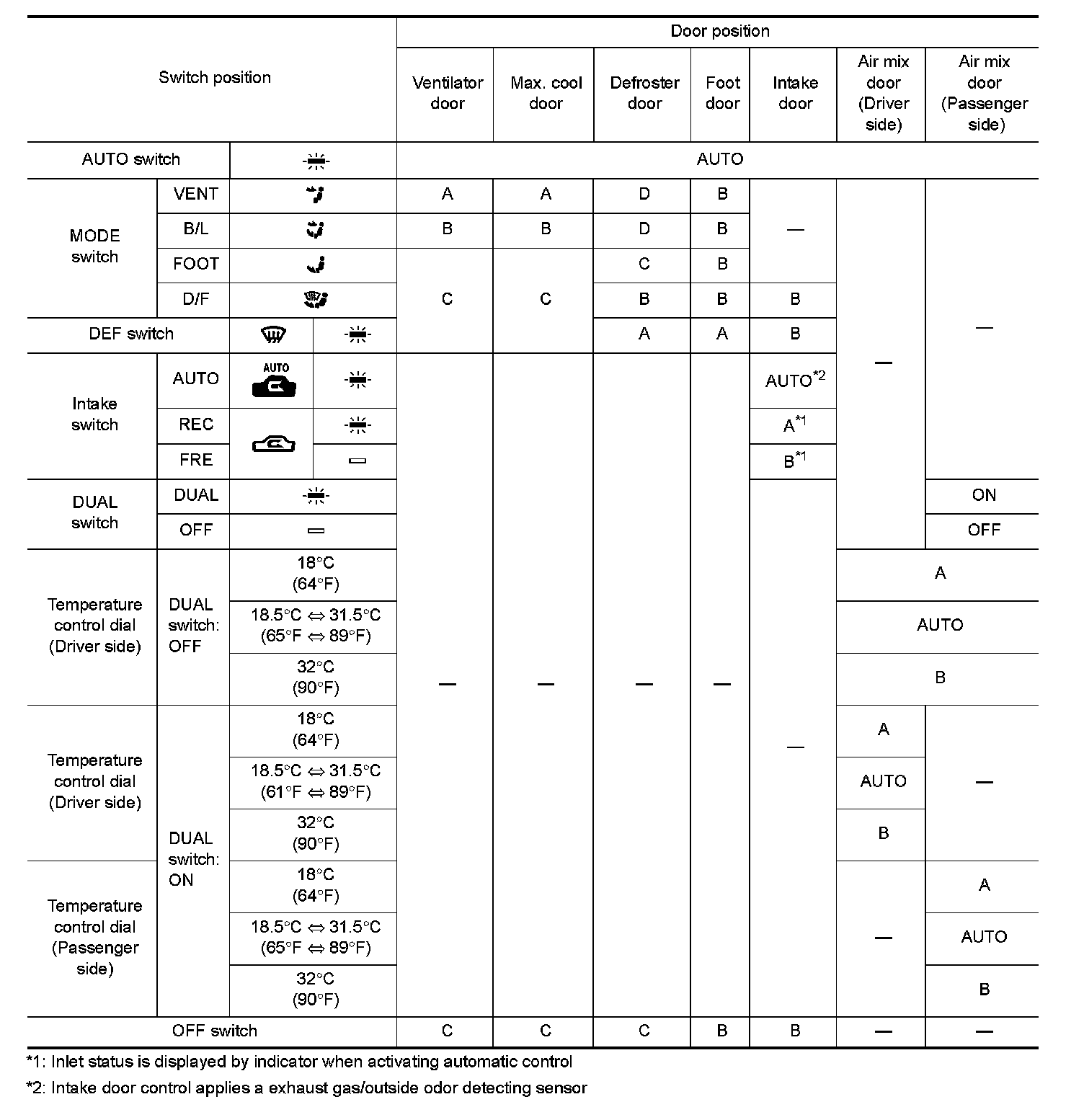

With ACCS
