BLOWER UNIT : Removal and Installation


REMOVAL

1.Remove instrument lower panel RH. Refer to the following.
- Refer to "A/T MODELS : Exploded View" Exploded View A/T Models. (A/T models)
- Refer to "M/T MODELS : Exploded View" Exploded View M/T Models. (M/T models)

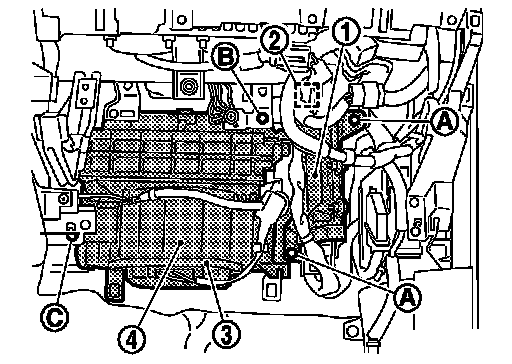

2.Disconnect ECM (1) connectors.
3.Remove mounting nuts (A), and then remove ECM with bracket attached.
4.Disconnect intake door motor (2) connector and blower motor (3) connector.
5.Remove mounting bolt (B) and screw (C), and then remove blower unit (4).

CAUTION:
Move blower unit rightward, and remove locating pin (1
part) and joint. Then remove blower unit downward.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

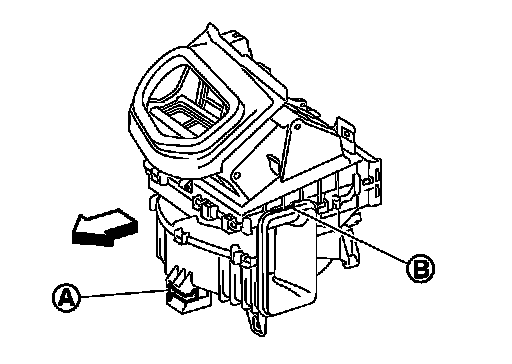

CAUTION:
Check locating pin (A) and joint (B) are securely inserted.
