Rear Floor Duct 1

DUCT AND GRILLE

REAR FLOOR DUCT 1 : Removal and Installation


REMOVAL

1.Remove center console assembly. Refer to the following.
- Refer to "A/T MODELS : Exploded View" Exploded View. (A/T models)
- Refer to "M/T MODELS : Exploded View" Exploded View. (M/T models)
2.Remove instrument side panel RH. Refer to the following.
- Refer to "A/T MODELS : Exploded View" Exploded View A/T Models. (A/T models)
- Refer to "M/T MODELS : Exploded View" Exploded View M/T Models. (M/T models)
3.Remove AV control unit. Refer to the following.
- Refer to "Exploded View" Base Audio. (BASE AUDIO WITHOUT NAVIGATION)
- Refer to "Exploded View" Without Navigation. (BOSE AUDIO WITHOUT NAVIGATION)
- Refer to "Exploded View" With Navigation. (BOSE AUDIO WITH NAVIGATION)

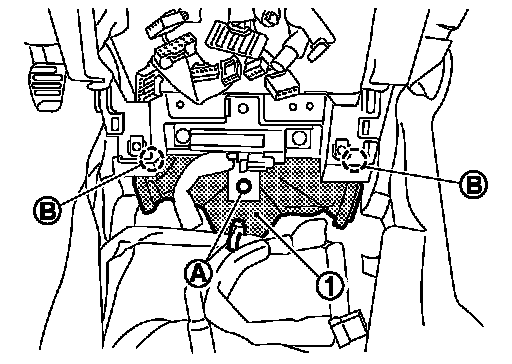

4.Remove fixing clips (A) and (B).
5.Peel back floor carpet to a point where rear floor duct 1 (1) is visible.
6.Remove rear floor duct 1 to rightward.

INSTALLATION

Install in the reverse order of removal.
