Front Defroster Nozzle, Side Defroster Nozzle and Ventilator Duct

DUCT AND GRILLE

FRONT DEFROSTER NOZZLE, SIDE DEFROSTER NOZZLE AND VENTILATOR DUCT : Removal and Installation


REMOVAL

1.Remove instrument panel assembly. Refer to the following.
- Refer to "A/T MODELS : Exploded View" Exploded View A/T Models. (A/T models)
- Refer to "M/T MODELS : Exploded View" Exploded View M/T Models. (M/T models)

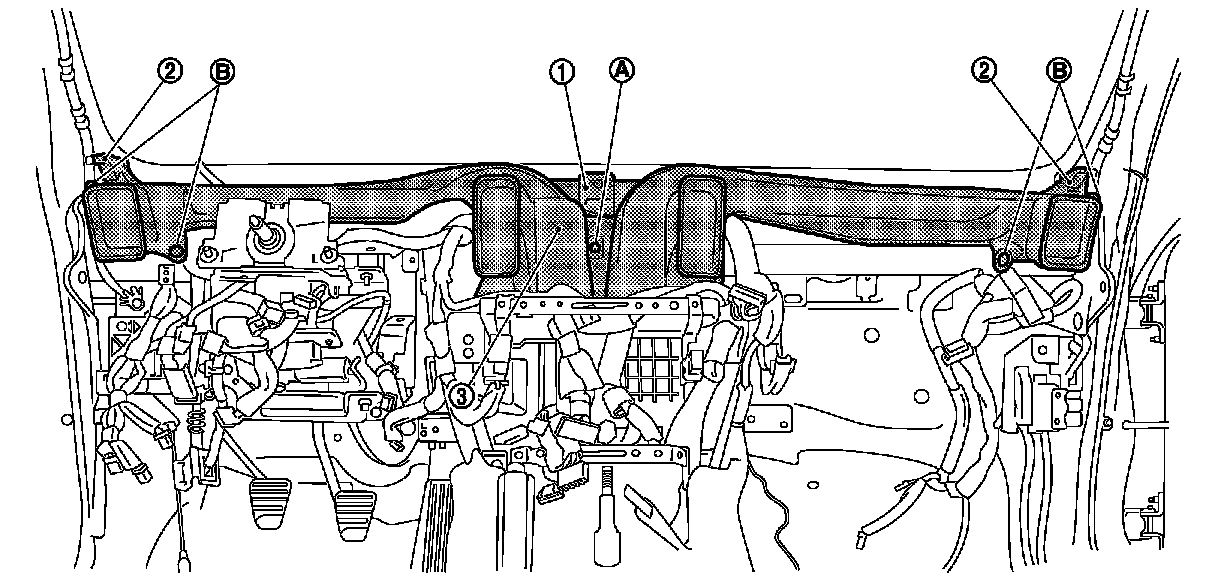

2.Remove fixing screw (A) and fixing clips (B).
3.Remove defroster nozzle (1), side defroster nozzle (2) and ventilator duct (3).






INSTALLATION

Install in the reverse order of removal.
