Front Defroster Grille




DUCT AND GRILLE

FRONT DEFROSTER GRILLE : Removal and Installation


REMOVAL

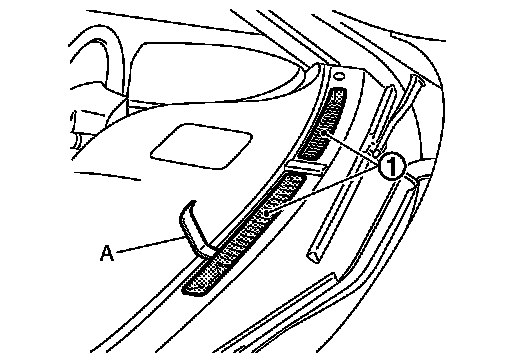

Remove front defroster grilles (1), using a remover tool (A).

INSTALLATION

Install in the reverse order of removal.
