Foot Grille

DUCT AND GRILLE

FOOT GRILLE : Removal and Installation


REMOVAL

Driver Side

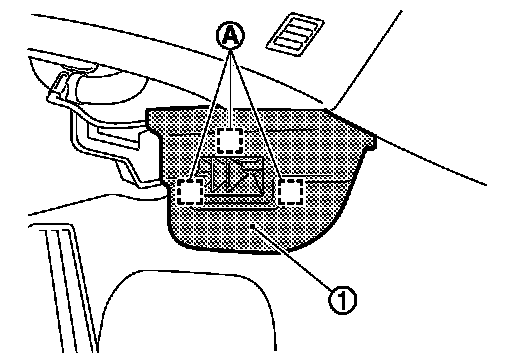

Remove fixing clips (A), and then remove foot grille LH (1).
Passenger Side

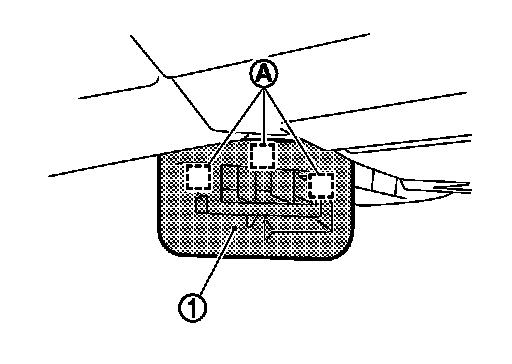

Remove fixing clips (A), and then remove foot grille RH (1).

INSTALLATION

Install in the reverse order of removal.
