Foot Duct

DUCT AND GRILLE

FOOT DUCT : Removal and Installation


REMOVAL

Driver Side

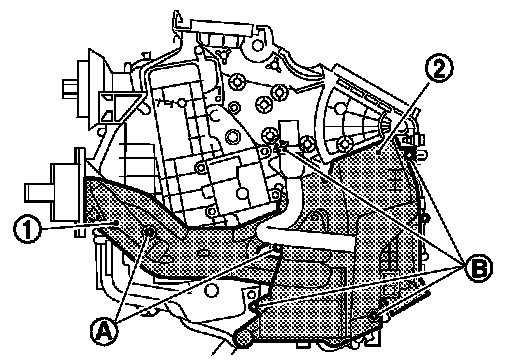

1.Remove heater & cooling unit assembly. Refer to "Exploded View" Exploded View.





2.Remove fixing screws (A), and then remove heater pipe cover (1).
3.Remove fixing screws (B), and then remove foot duct LH (2).
Passenger Side
1.Set the temperature at 18�C (64�F).

CAUTION:
The angle may be out, when installing the air mix door motor to the air mix door, unless the above procedure is performed.
2.Disconnect the battery cable from the negative terminal.
3.Remove heater & cooling unit assembly. Refer to "Exploded View" Exploded View.

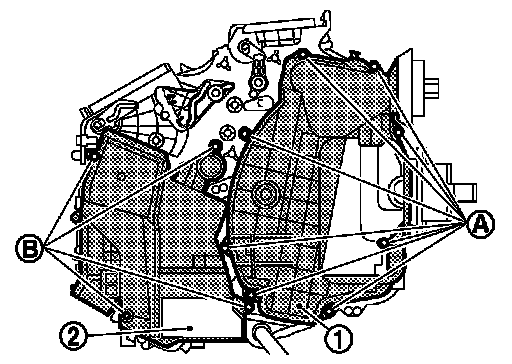

4.Remove air mix door motor. Refer to "Exploded View" Door Motor.
5.Remove mode door motor and links. Refer to "Exploded View" Door Motor.





6.Remove fixing screws (A), and then remove evaporator cover (1).
7.Remove fixing screws (B), and then remove foot duct RH (2).

INSTALLATION

Install in the reverse order of removal.
