Inspection

EXHAUST MANIFOLD

Inspection


INSPECTION AFTER REMOVAL

Surface Distortion

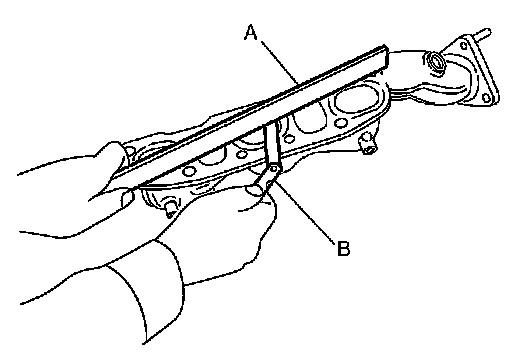

- Check the surface distortion of the exhaust manifold mating surface with a straightedge (A) and a feeler gauge (B).
Limit: Refer to "Exhaust Manifold" [1][2]Exhaust Manifold.
- If it exceeds the limit, replace exhaust manifold.
