Inspection
SPARK PLUG
Inspection
INSPECTION AFTER REMOVAL
Use the standard type spark plug for normal condition.
Spark plug (Standard type): Refer to "Spark Plug" [1][2]Spark Plug.
CAUTION:
- Never drop or shock spark plug.

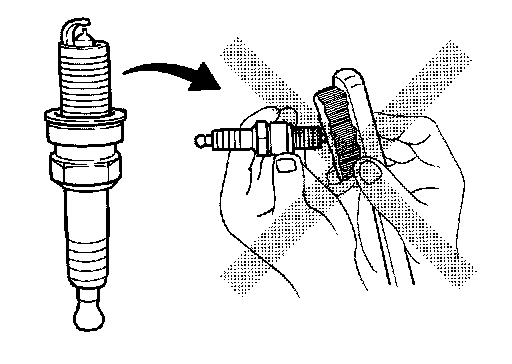

- Never use a wire brush for cleaning.

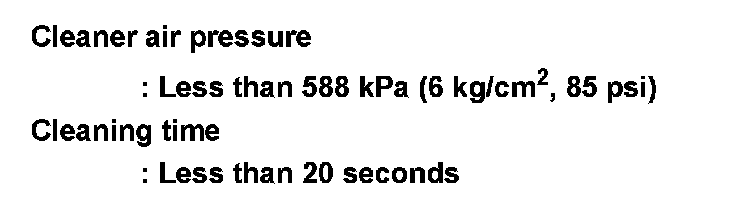

- If plug tip is covered with carbon, use spark plug cleaner to clean.

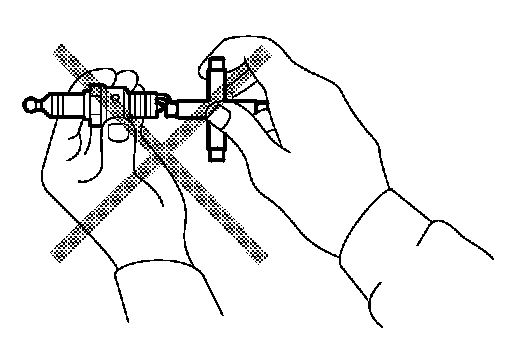

- Spark plug gap adjustment is not required between replacement intervals.
- Measure spark plug gap. When it exceeds the limit, replace spark plug even if it is within the specified replacement mileage. Refer to "Spark Plug" [1][2]Spark Plug.
