Cylinder Head Assembly: Specifications

SERVICE DATA AND SPECIFICATIONS (SDS)

Cylinder Head

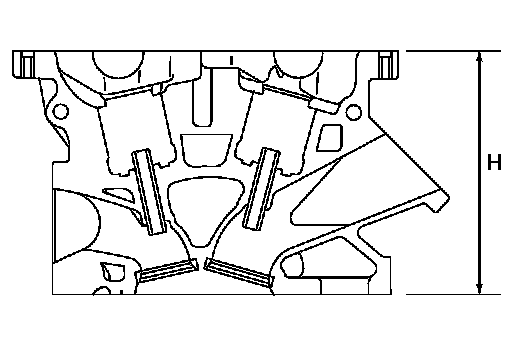

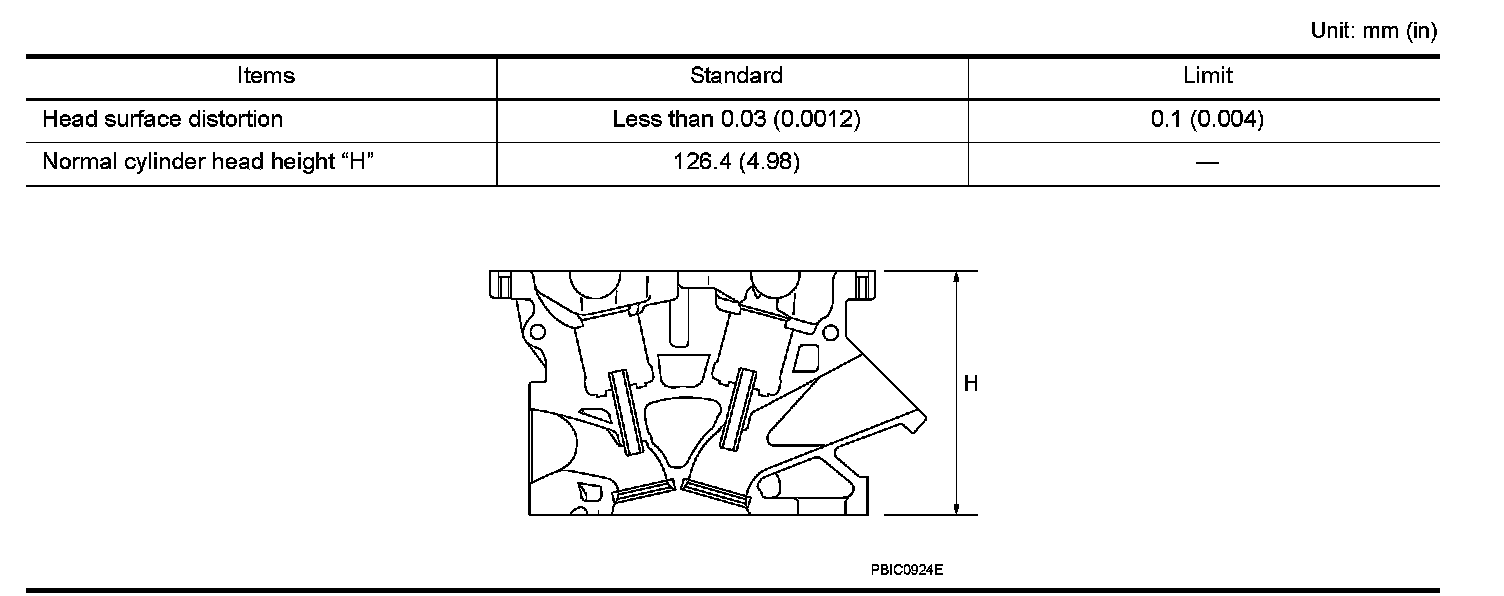

CYLINDER HEAD

Unit: mm (in)

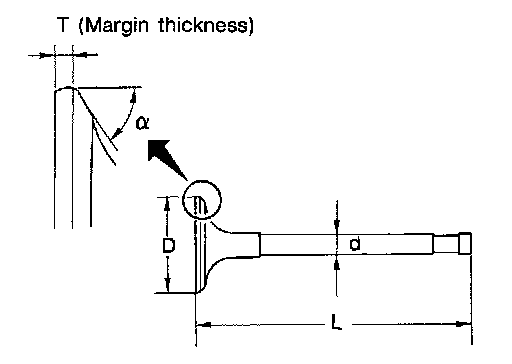

VALVE DIMENSIONS

Unit: mm (in)

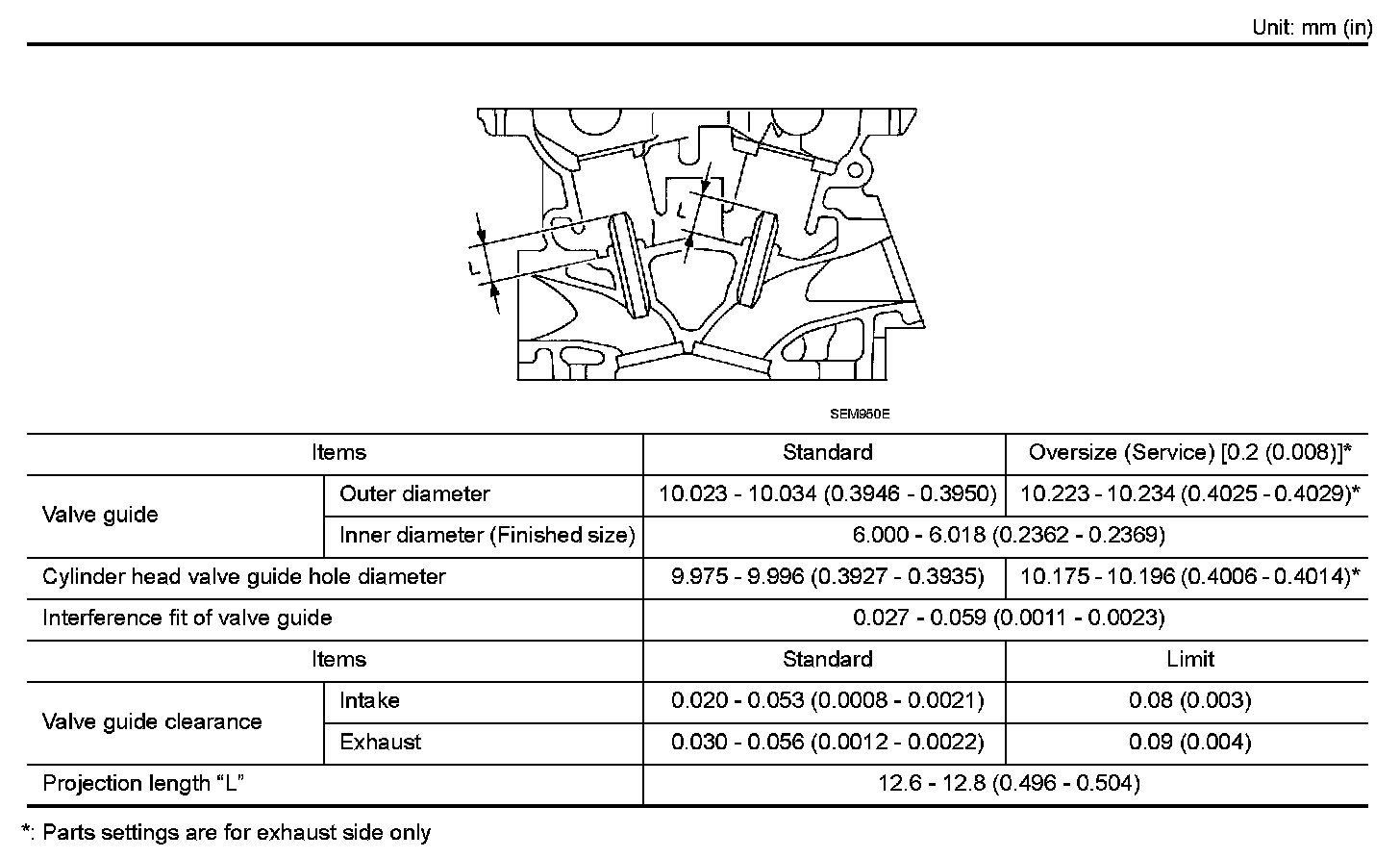

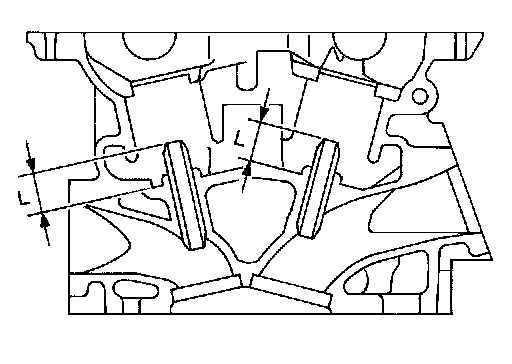

VALVE GUIDE

Unit: mm (in)

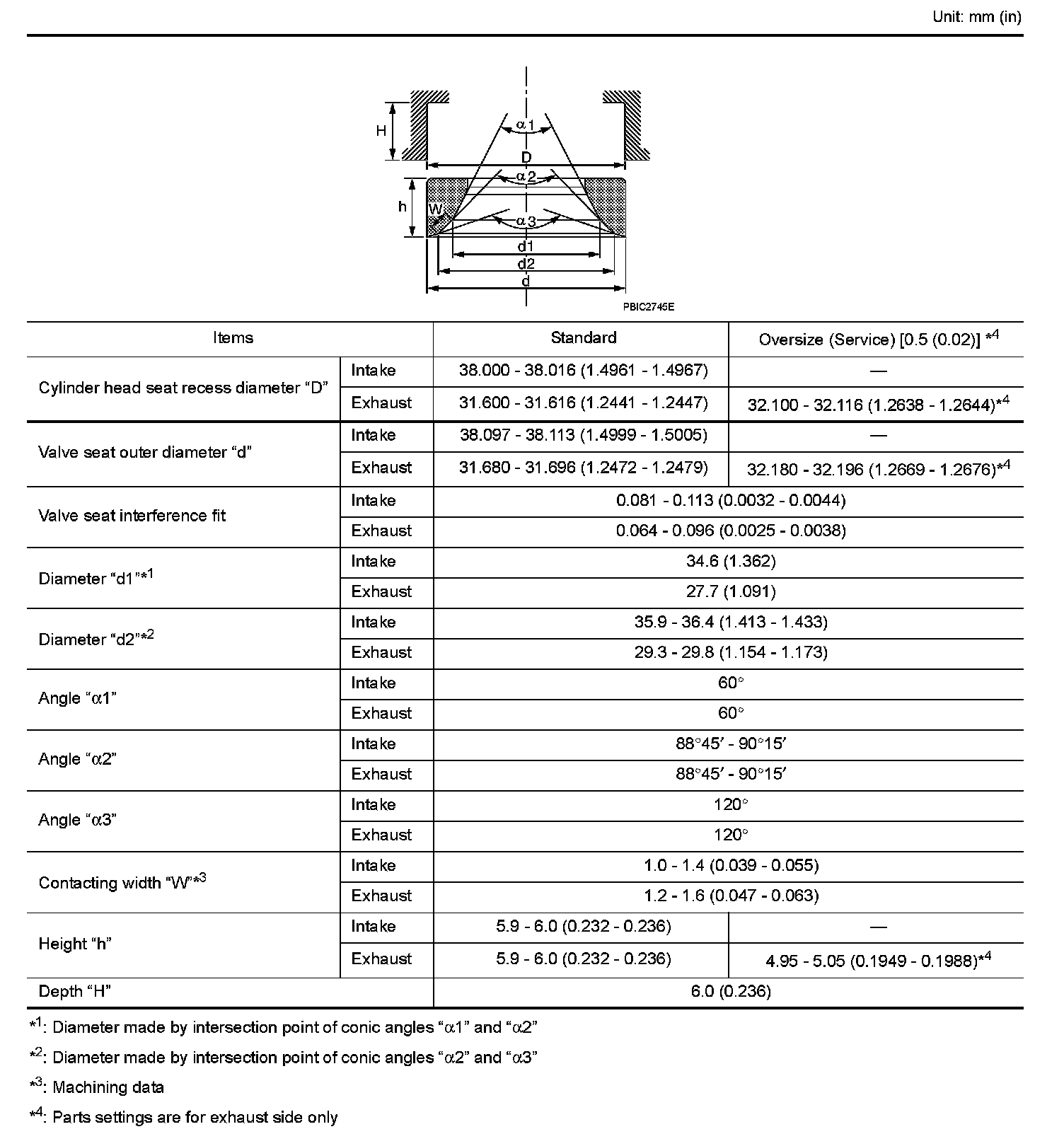

VALVE SEAT

Unit: mm (in)

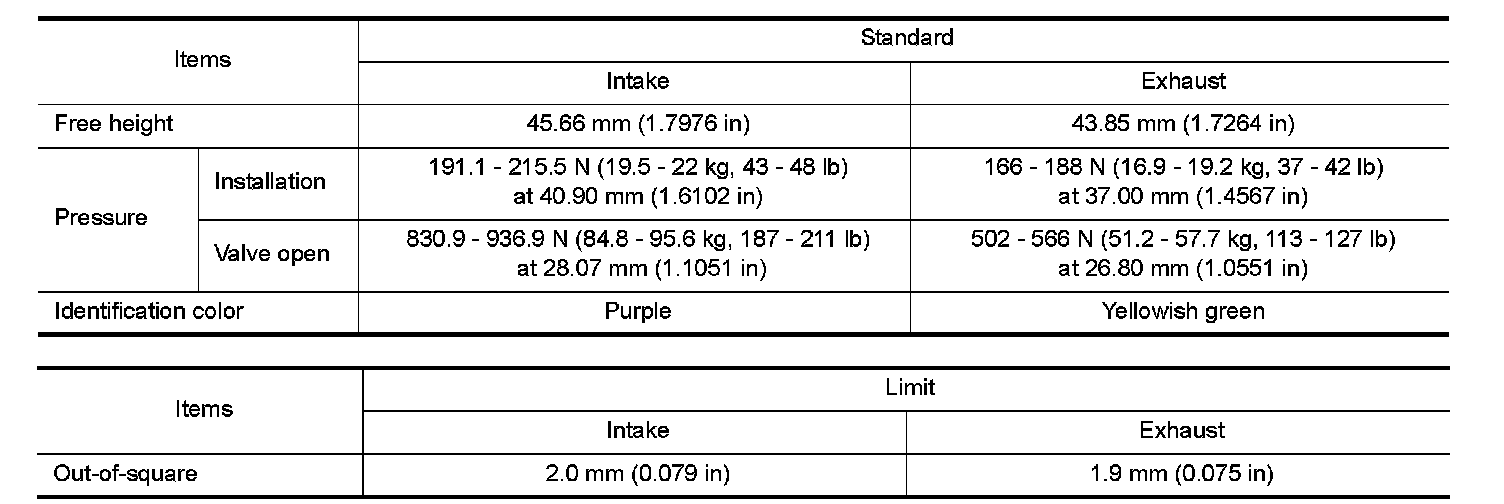

VALVE SPRING







Cylinder Head Bolts:

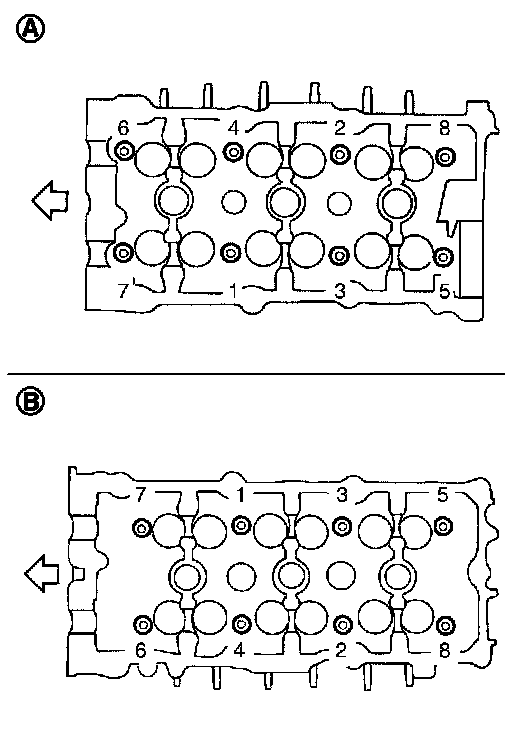

Install cylinder head, and tighten cylinder head bolts in numerical order as shown in figure as follows:





Tighten 105 Nm (11 kg-m, 77 ft-lb)

Completely loosen in reverse order 0 Nm (0 kg-m, 0 ft-lb)

Tighten 40.0 Nm (4.1 kg-m, 30 ft-lb)

Turn 95 degrees clockwise (angle tightening)

Turn 95 degrees clockwise again (angle tightening)

Cylinder Head Bolts Outer Diameter:





Whenever the size difference between (B) and (A) exceeds the limit, replace them with new one.





Limit [(B) - (A)]: 0.18 mm (0.0071 in)

Camshaft Bearing Cap:

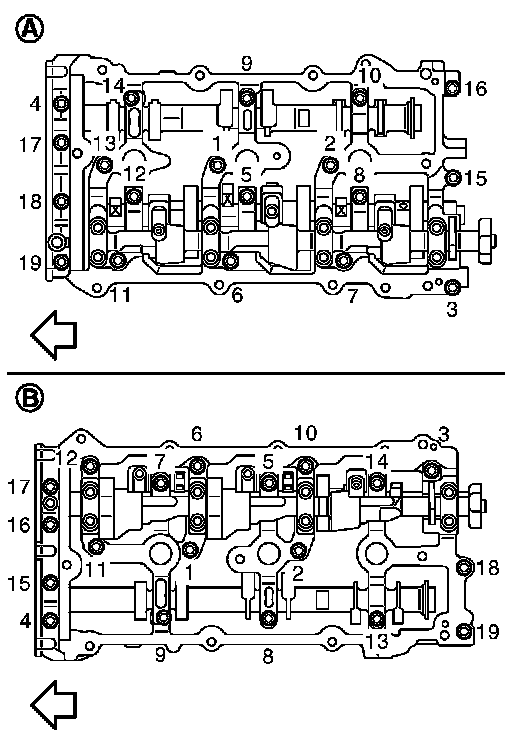

Tighten mounting bolts in the following step, in numerical order as shown in the figure.





CAUTION:
Do not reuse washers.

Tighten 1.96 Nm (0.20 kg-m, 1 ft-lb)

Tighten 5.88 Nm (0.60 kg-m, 4 ft-lb)

Tighten 10.4 Nm (1.1 kg-m, 8 ft-lb)'
