Steering

POWER STEERING CONTROL UNIT

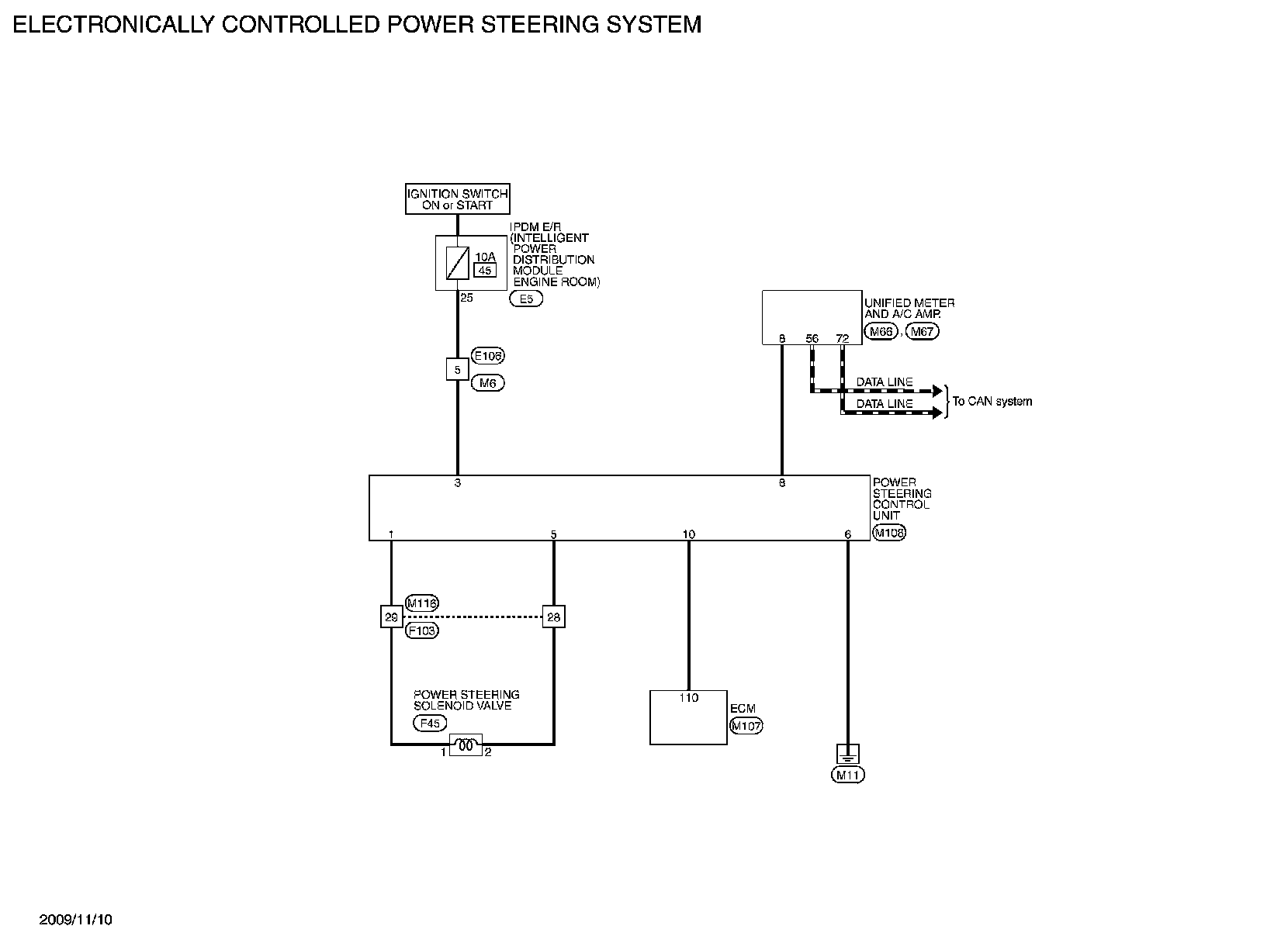

Wiring Diagram - ELECTRONICALLY CONTROLLED POWER STEERING SYSTEM -

For connector terminal arrangements, harness layouts, and alphabets in a (option abbreviation; if not described in wiring diagram), refer to "Connector Information" Connector Information.
