Combination Meter

COMBINATION METER

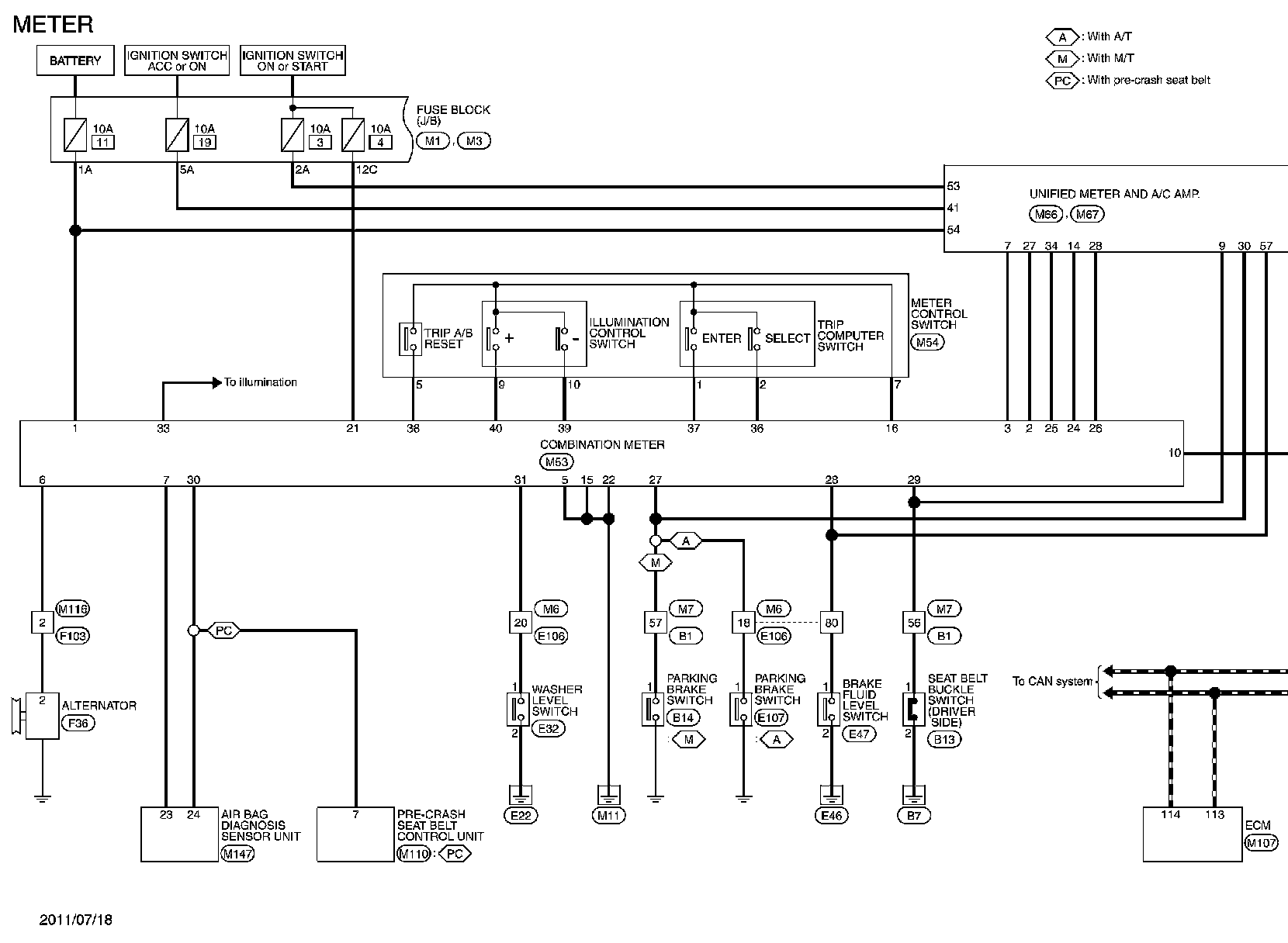

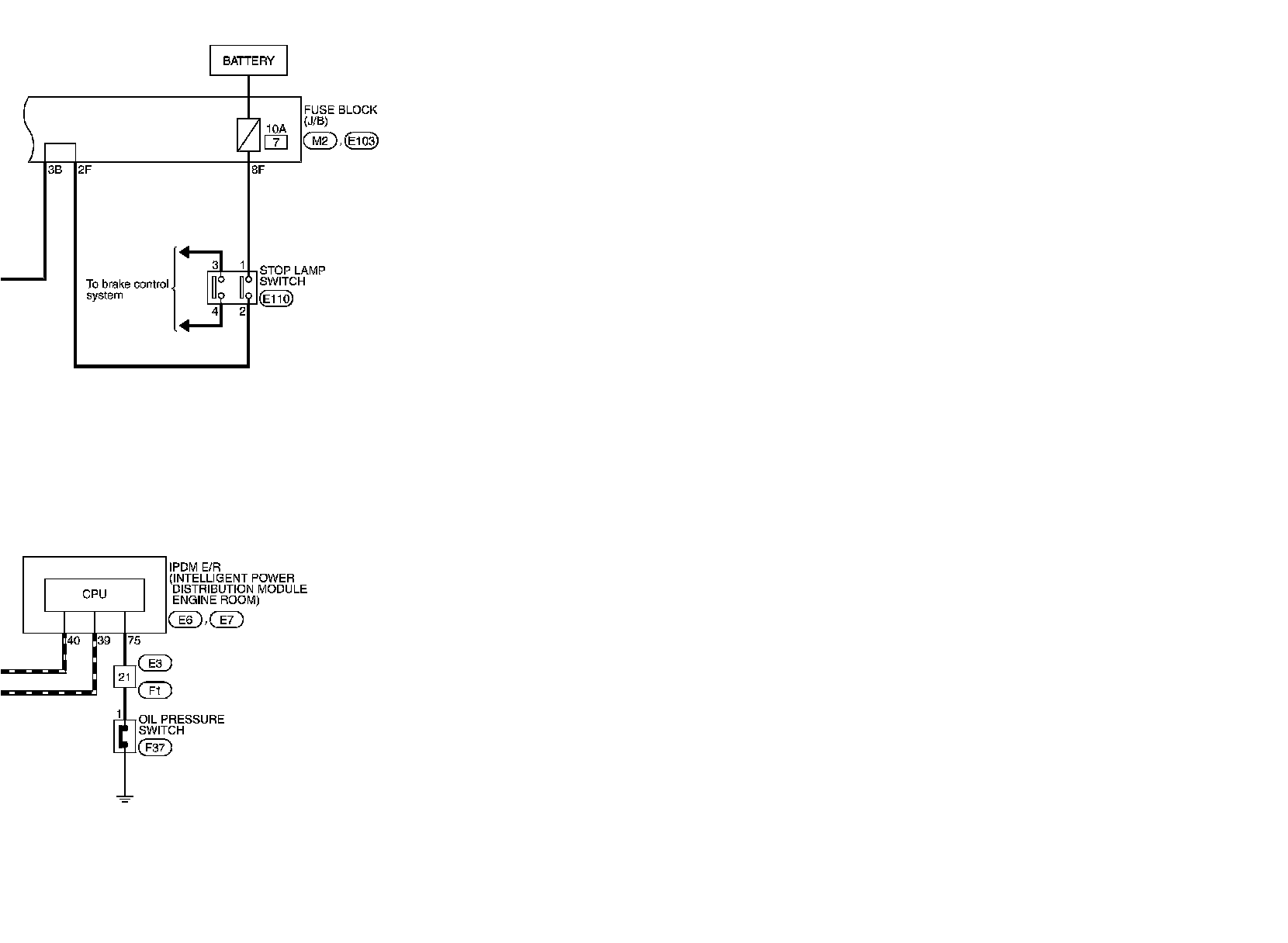

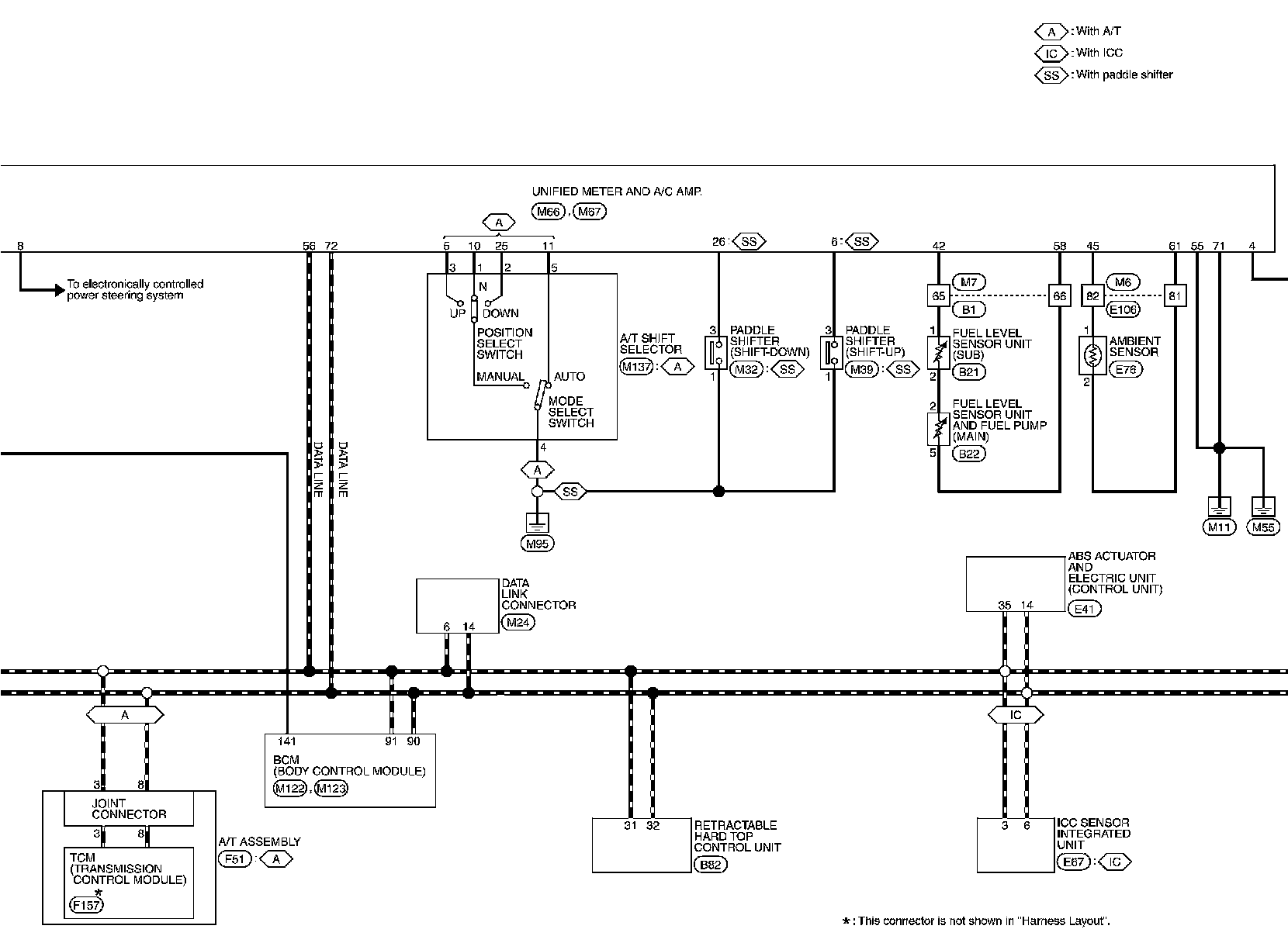

Wiring Diagram - METER

For connector terminal arrangements, harness layouts, and alphabets in a(option abbreviation; if not described in wiring diagram), refer to "Connector Information" Connector Information.
