Heating and Air Conditioning

UNIFIED METER AND A/C AMP.

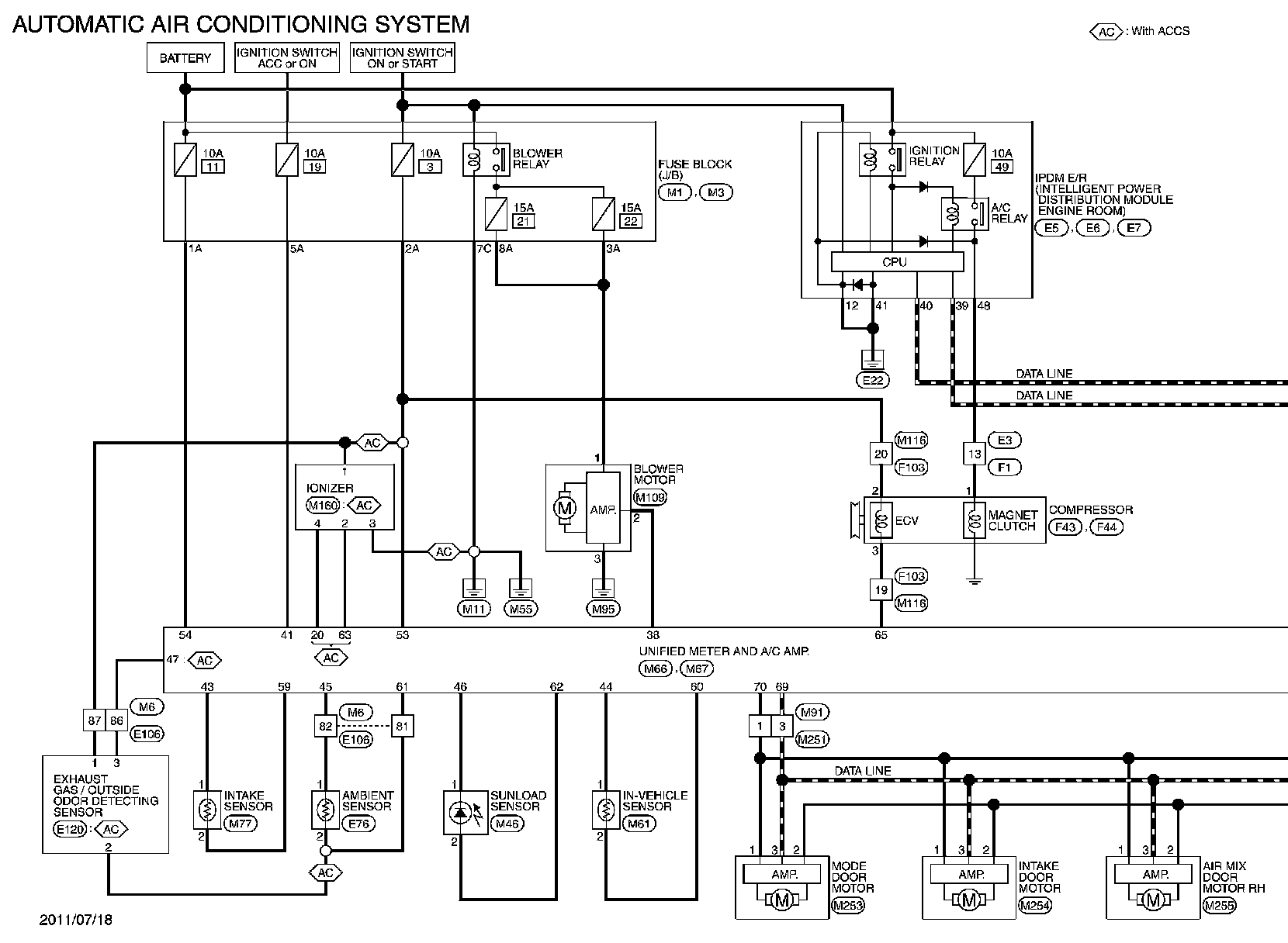

Wiring Diagram - AUTOMATIC AIR CONDITIONING SYSTEM

For connector terminal arrangements, harness layouts, and alphabets in a (option abbreviation; if not described in wiring diagram), refer to "Connector Information" Connector Information.
