Collision Avoidance and Parking Assist Systems

SONAR SYSTEM

Wiring Diagram

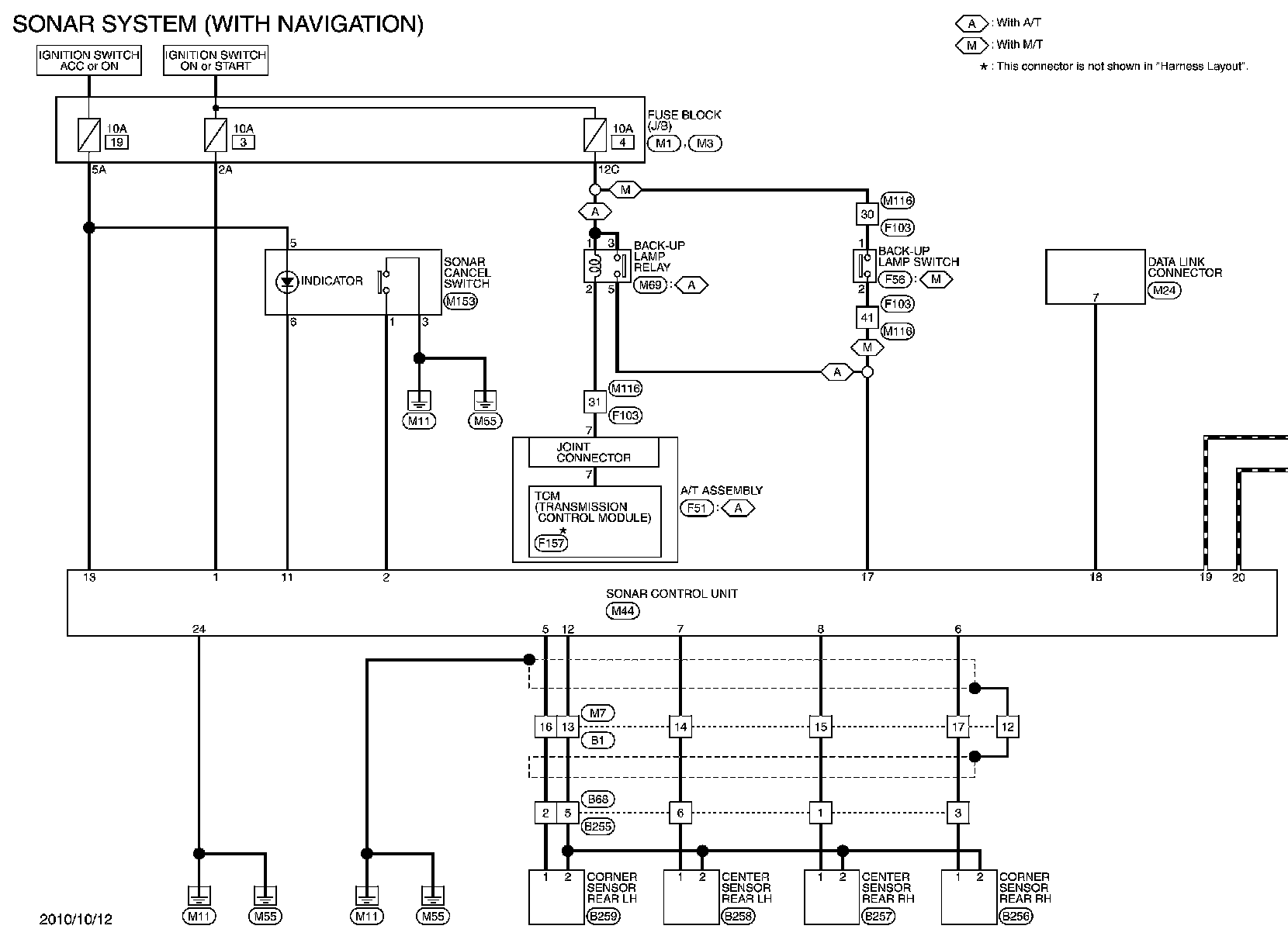

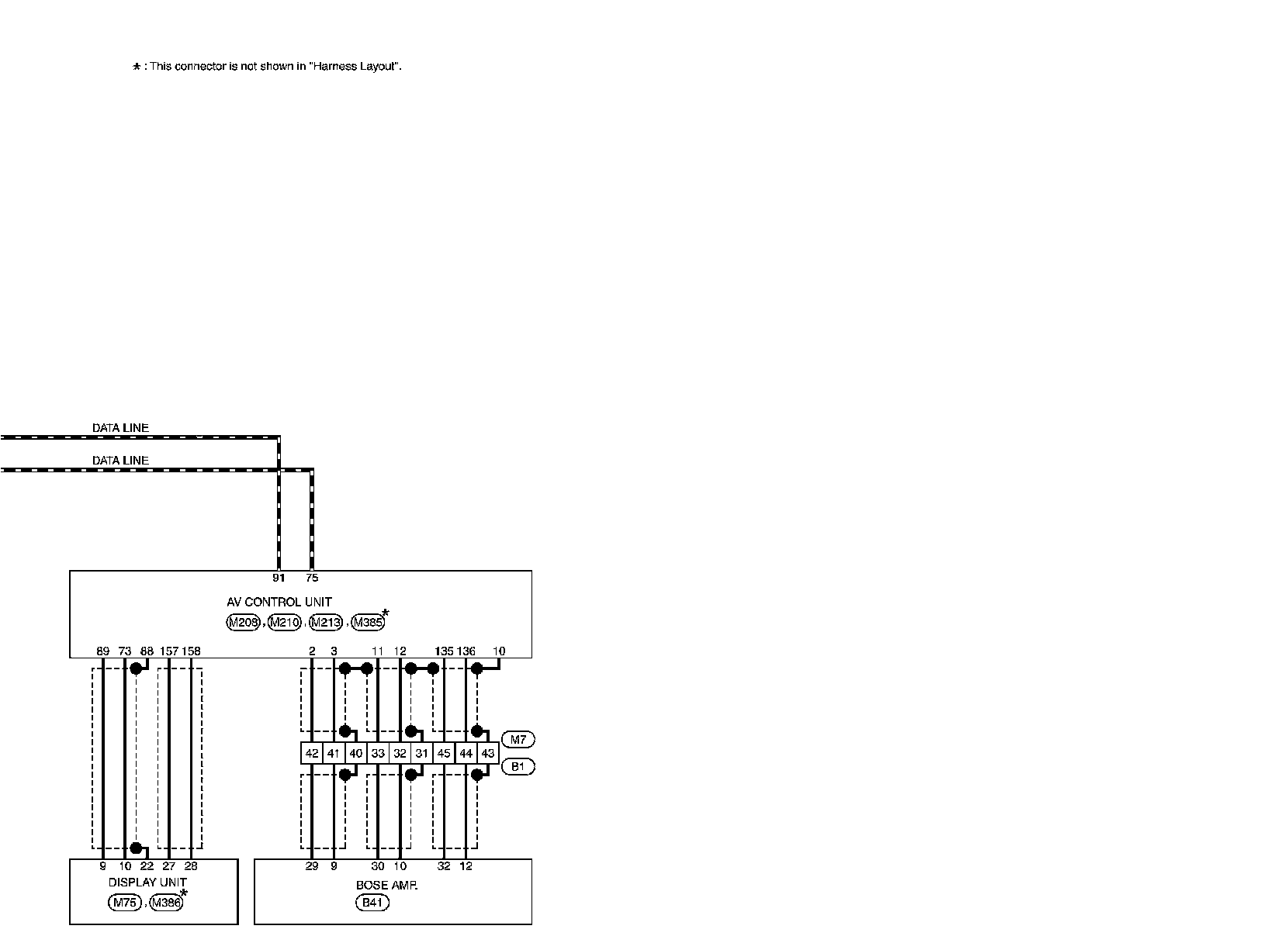

WITH NAVIGATION

For connector terminal arrangements, harness layouts, and alphabets in a(option abbreviation; if not described in wiring diagram), refer to "Connector Information" Connector Information.

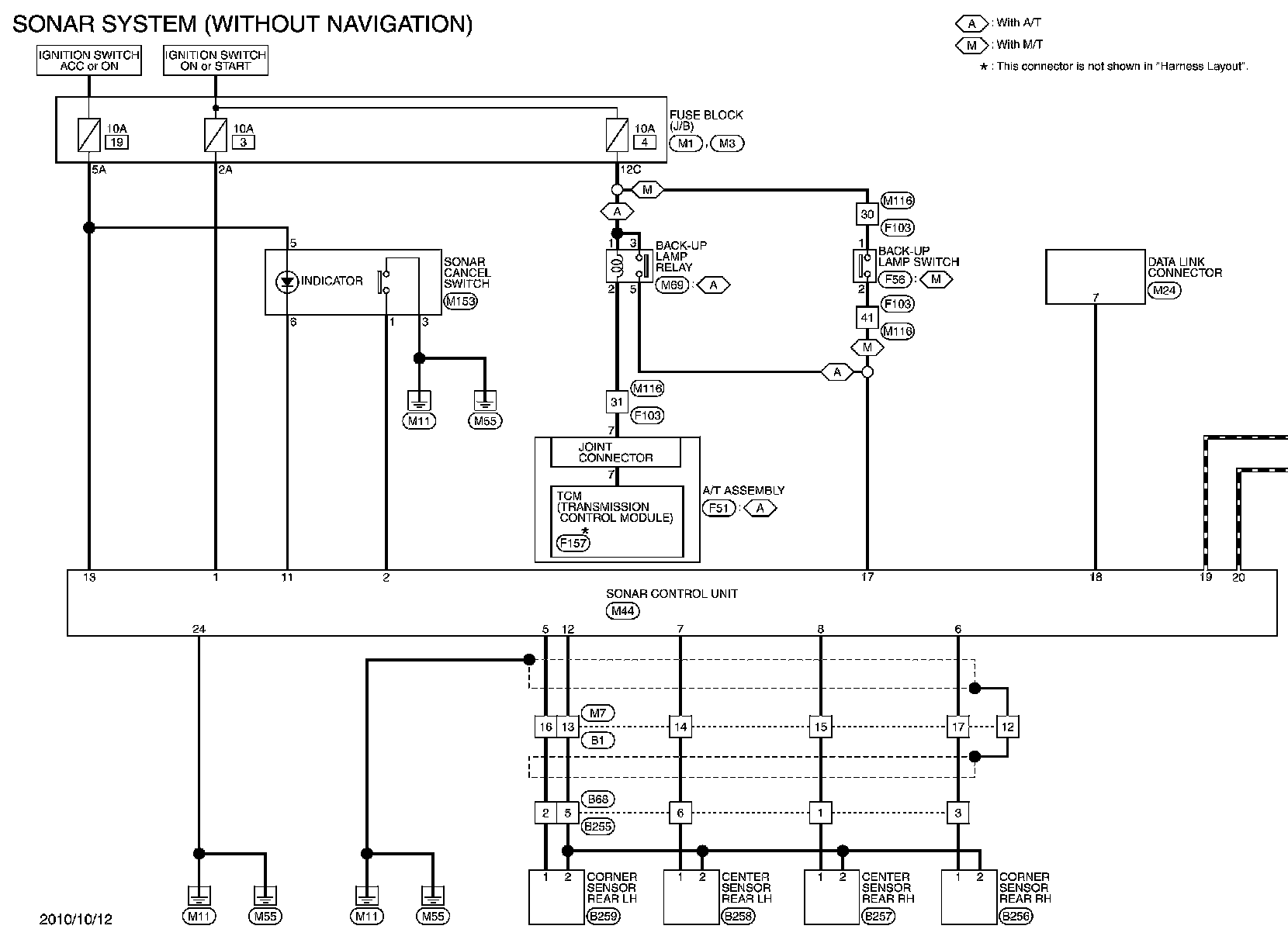

WITHOUT NAVIGATION

For connector terminal arrangements, harness layouts, and alphabets in a(option abbreviation; if not described in wiring diagram), refer to "Connector Information" Connector Information.
