Antilock Brakes / Traction Control Systems

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

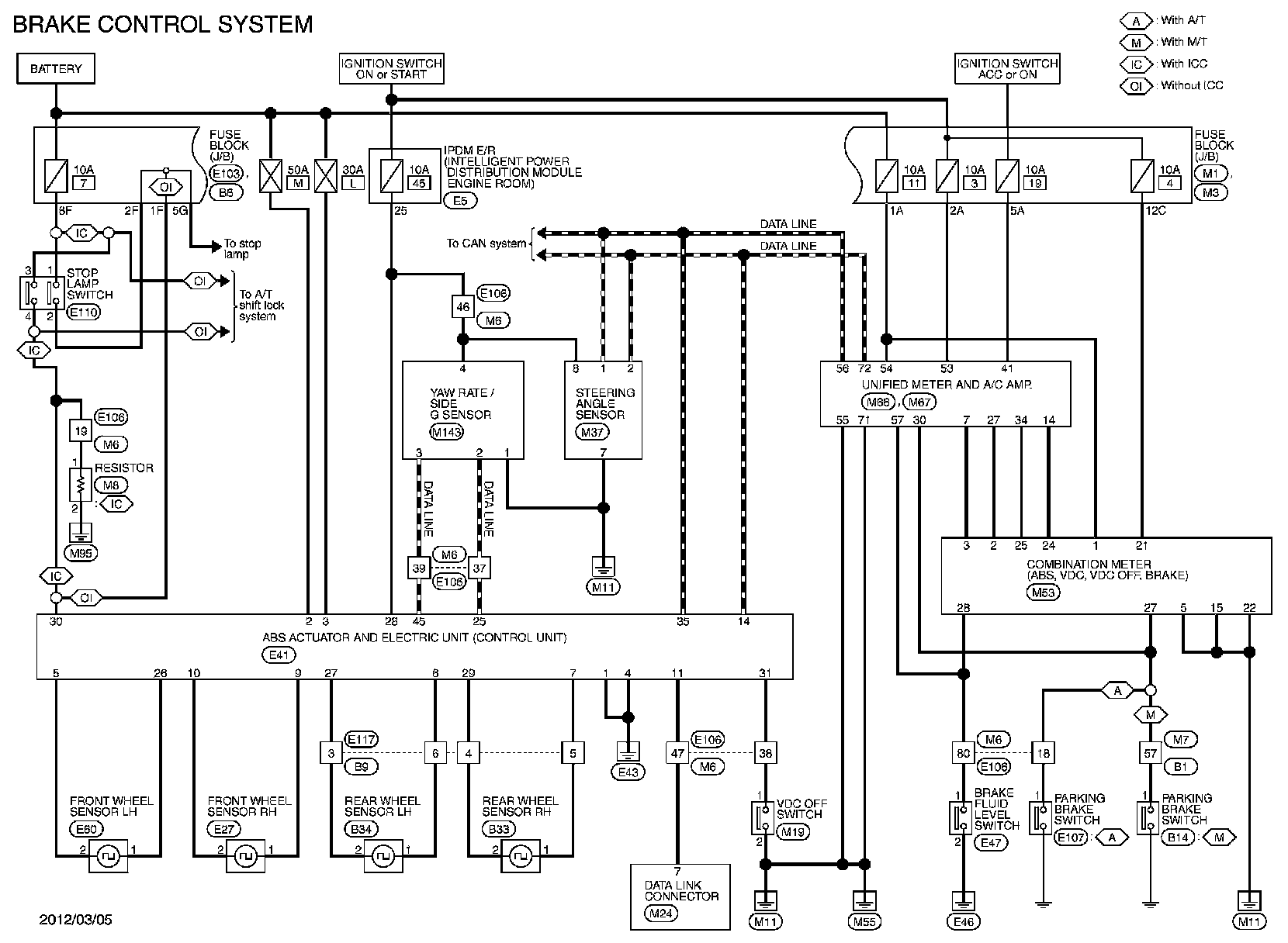

Wiring Diagram - BRAKE CONTROL SYSTEM

For connector terminal arrangements, harness layouts, and alphabets in a (option abbreviation; if not described in wiring diagram), refer to "Connector Information" Connector Information.
