Special Repair Requirement (Preparation)

INSPECTION AND ADJUSTMENT

LASER BEAM AIMING ADJUSTMENT : Special Repair Requirement (Preparation)


1. ADVANCE PREPARATION FOR LASER BEAM AIMING ADJUSTMENT

1.Adjust all tire pressure to the specified value.
2.Empty the vehicle. (Remove any luggage from the passenger compartment, luggage room, etc.)
3.Shift the selector lever to the "P" position and release the parking brake.

CAUTION:
Apply wheel chocks or other tire blocks to the wheels to prevent the vehicle from moving.
4.Fully fill the fuel tank, and then check that the coolant and oils are filled up to correct level.

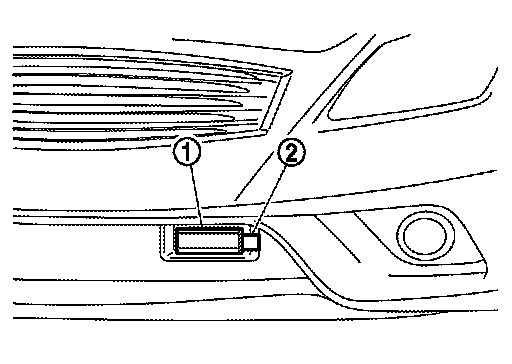

5.Clean off the ICC sensor integrated unit body window with a soft cloth.





6.Remove the bumper center grille finisher (Sport bumper fascia type only). Refer to "Exploded View" Exploded View.





- Go to "LASER BEAM AIMING ADJUSTMENT :
Special Repair Requirement (Setting The ICC Target
Board)".
