Front Disc Brake
Front Disc Brake
SERVICE DATA AND SPECIFICATIONS (SDS)
Front Disc Brake

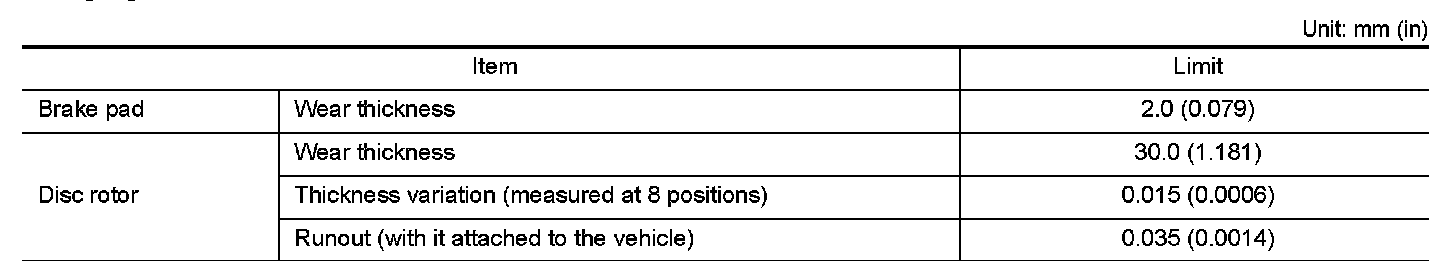

1 PISTON TYPE
Unit: mm (in)

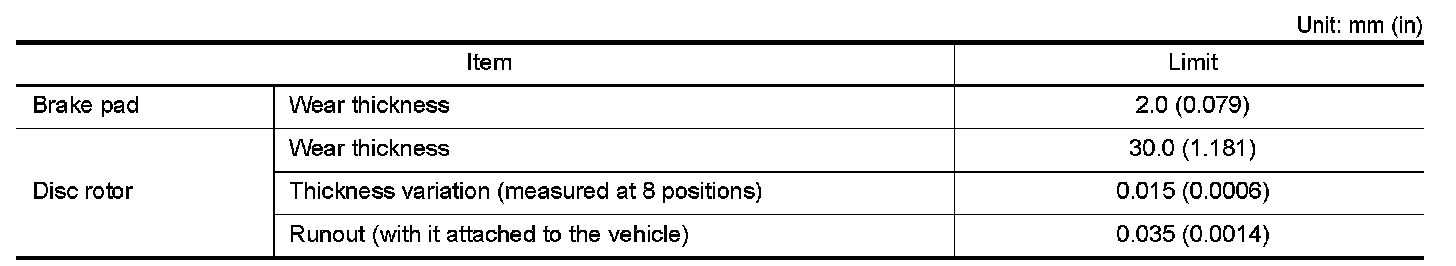

4 PISTON TYPE
Unit: mm (in)
