Component Inspection

HEATED SEAT SWITCH

PASSENGER SIDE : Component Inspection


1. CHECK FRONT HEATED SEAT SWITCH

1.Turn ignition switch OFF.
2.Disconnect heated seat switch connector.

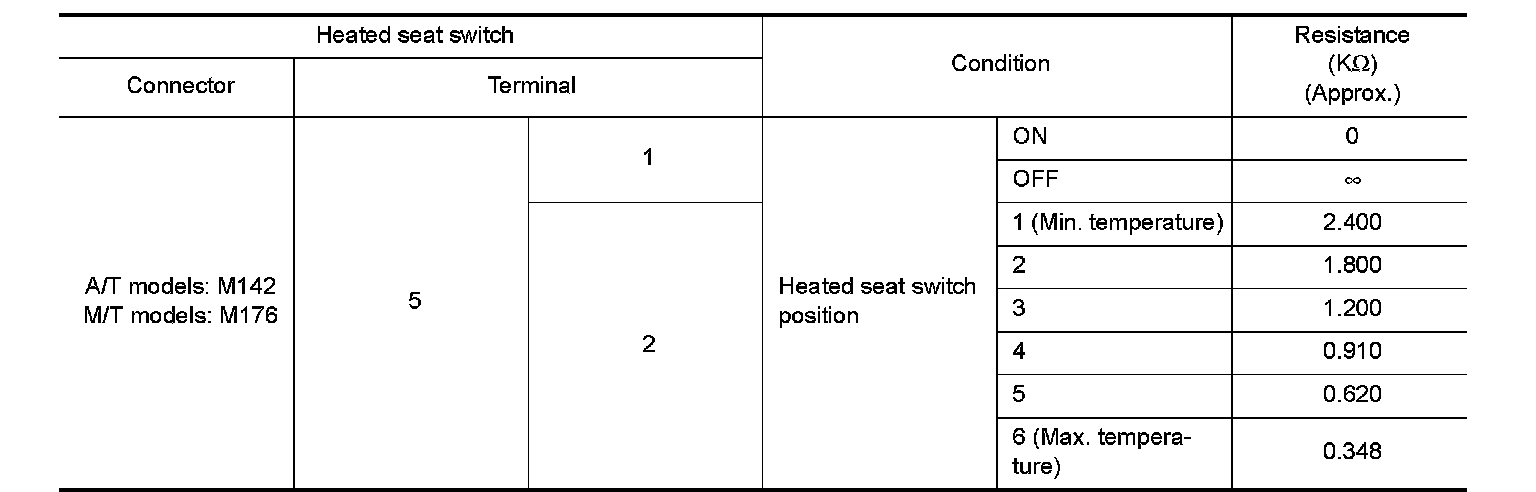

3.Check resistance between heated seat switch terminals.





Is the inspection result normal?
YES- INSPECTION END
NO- Replace heated seat switch. Refer to "Removal and Installation" Removal and Installation.
