Passenger Seat Control Unit

PASSENGER SEAT CONTROL UNIT

Reference Value

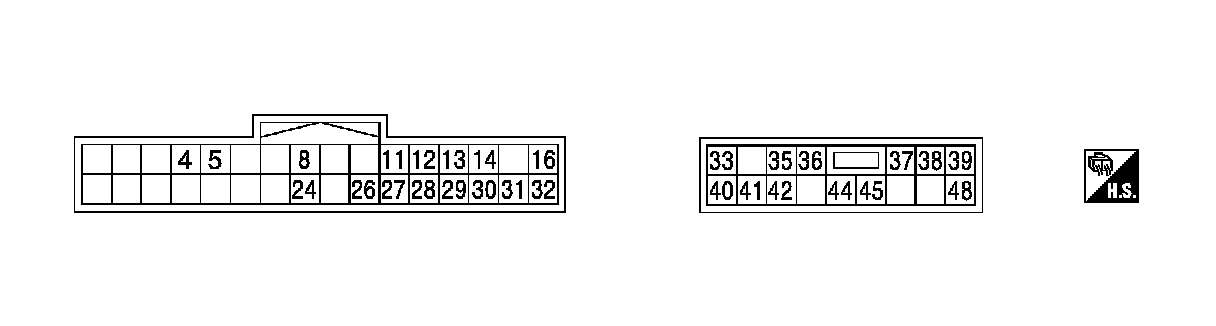

TERMINAL LAYOUT

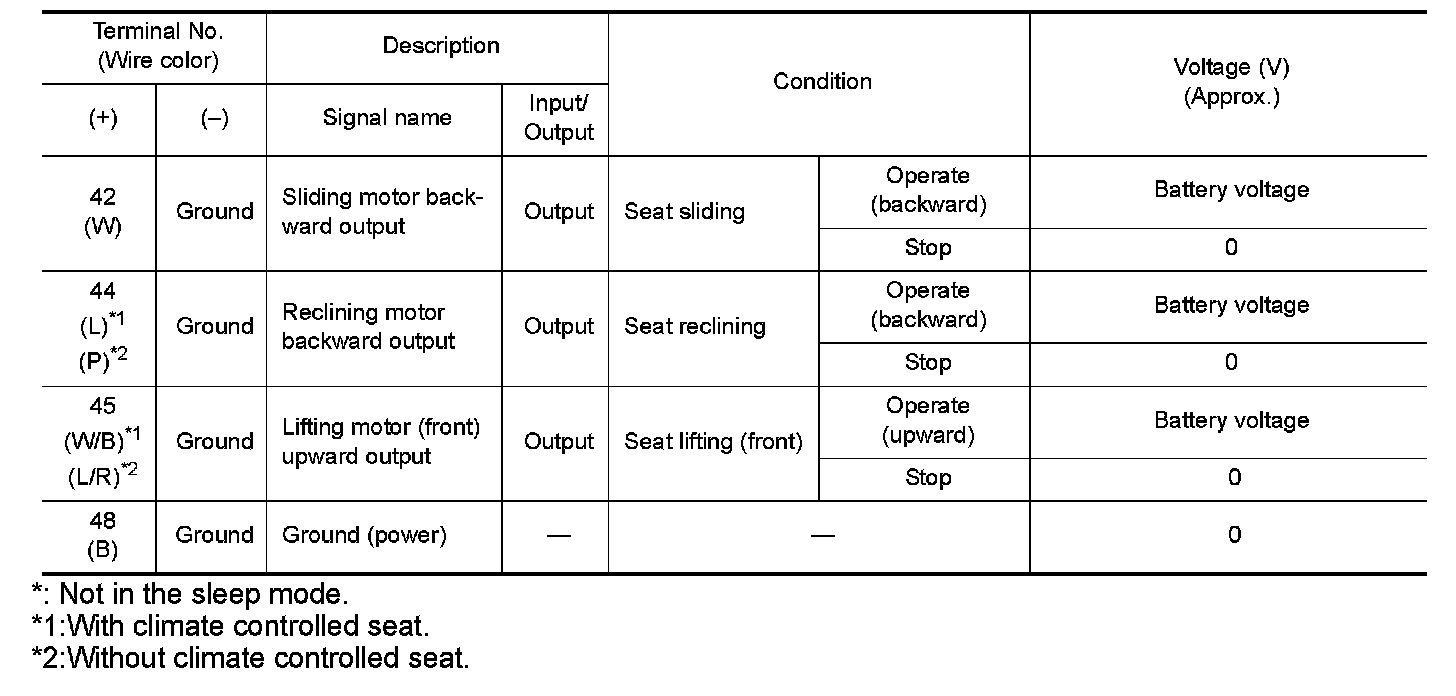

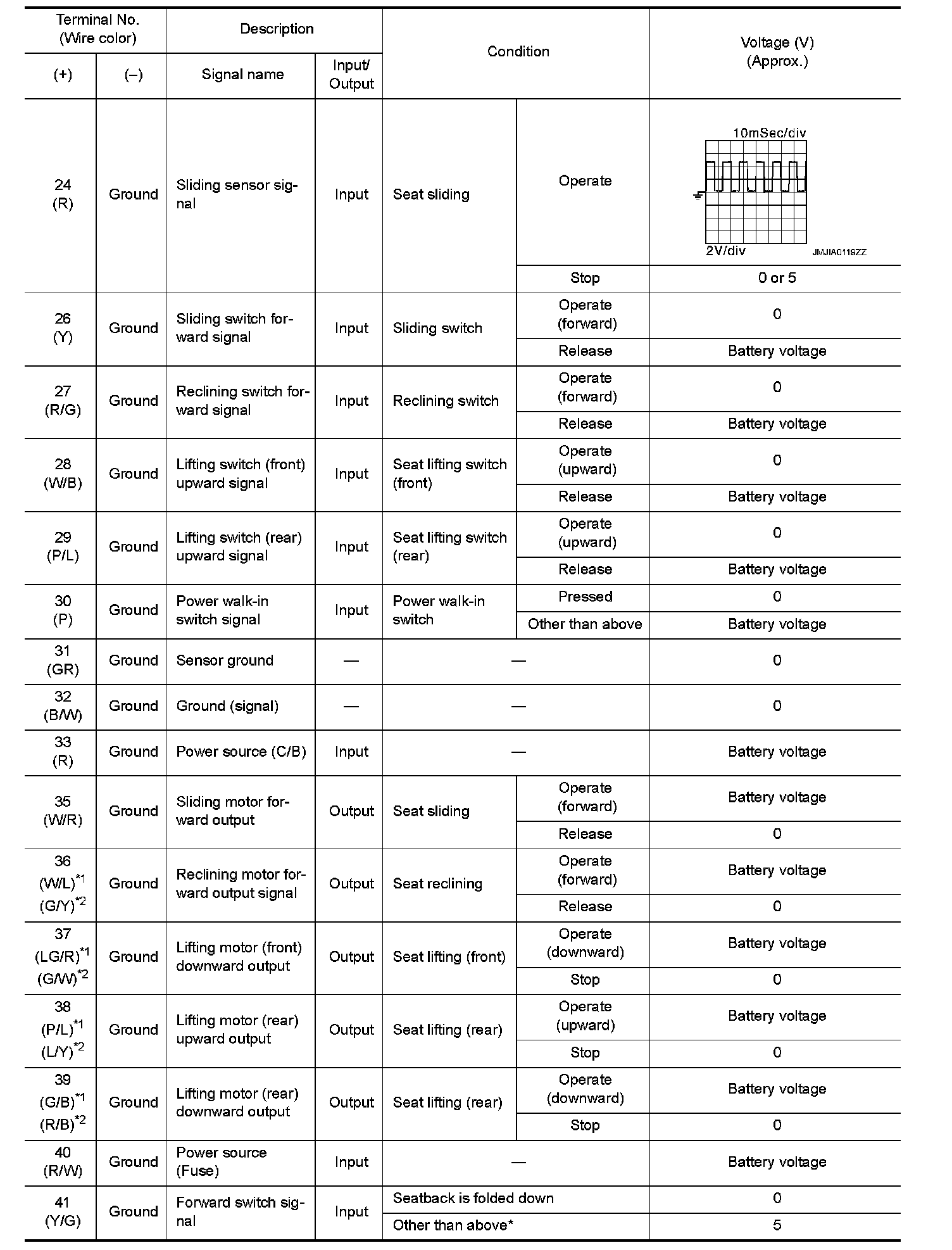

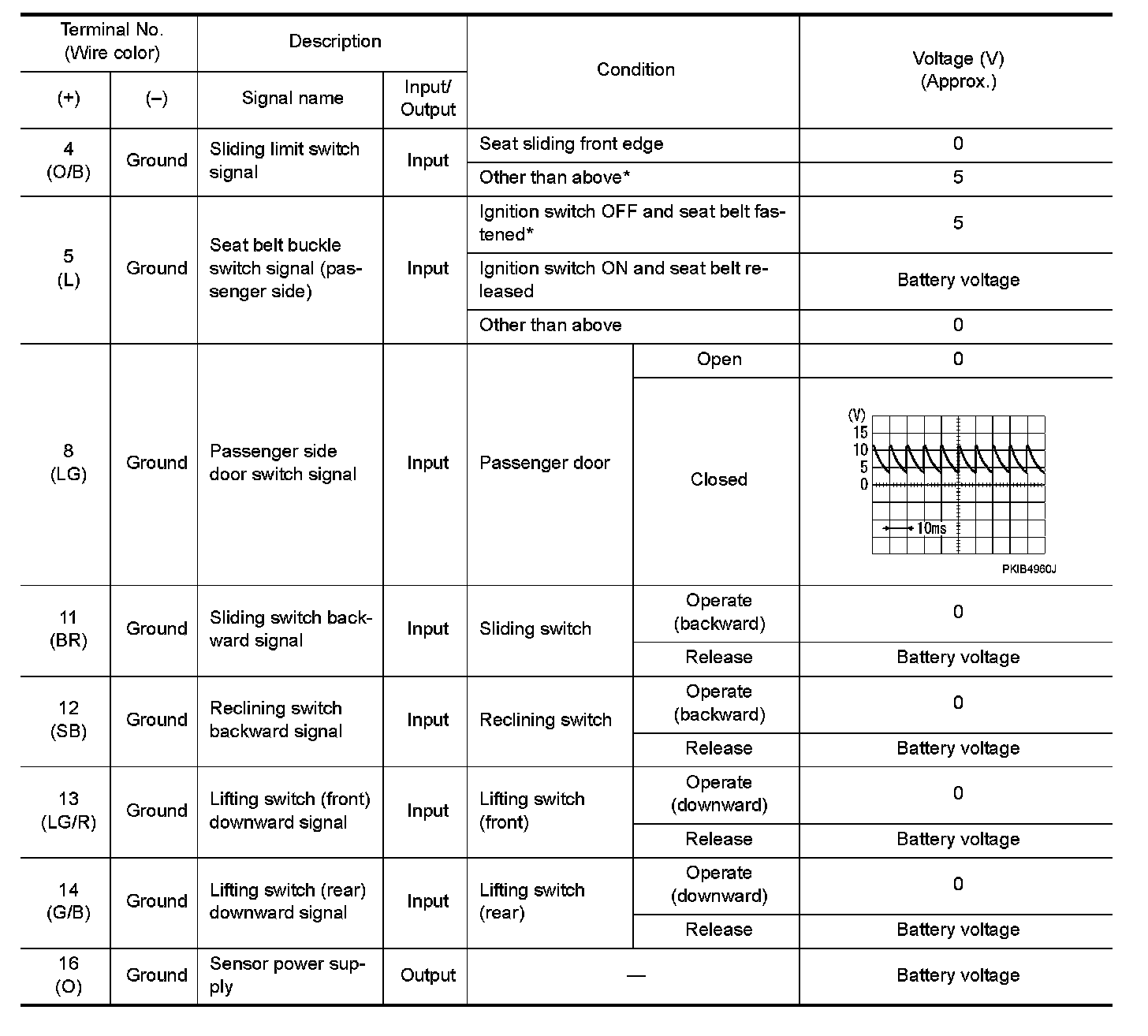

PHYSICAL VALUES
















*: Not in the sleep mode.
*1:With climate controlled seat.
*2:Without climate controlled seat.
