Component Function Check

SLIDING SWITCH

DRIVER SIDE : Component Function Check


1. CHECK FUNCTION

1.Turn ignition switch ON.
2.Select "SLIDE SW-FR", "SLIDE SW-RR" in the "Data monitor" mode using CONSULT.

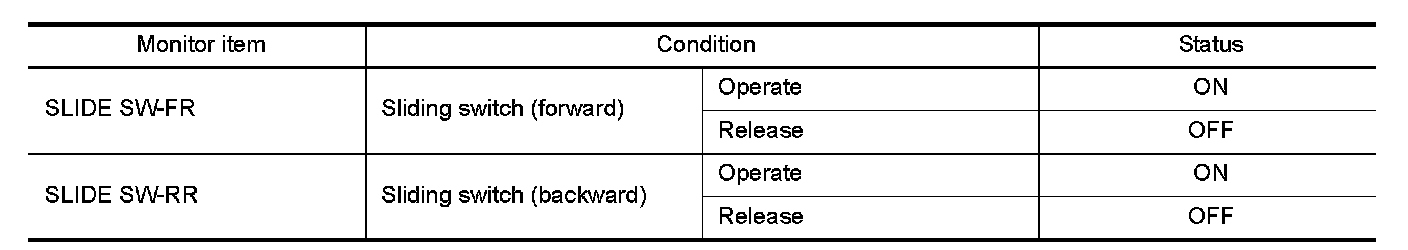

3.Check sliding switch signal under the following conditions.





Is the indication normal?
YES- Sliding switch function is OK.
NO- Refer to "DRIVER SIDE : Diagnosis Procedure" Diagnosis Procedure.
