Component Function Check

SLIDING SENSOR

DRIVER SIDE : Component Function Check


1. CHECK FUNCTION

1.Turn ignition switch ON.
2.Select "SLIDE PULSE" in the "Data Monitor" mode using CONSULT.

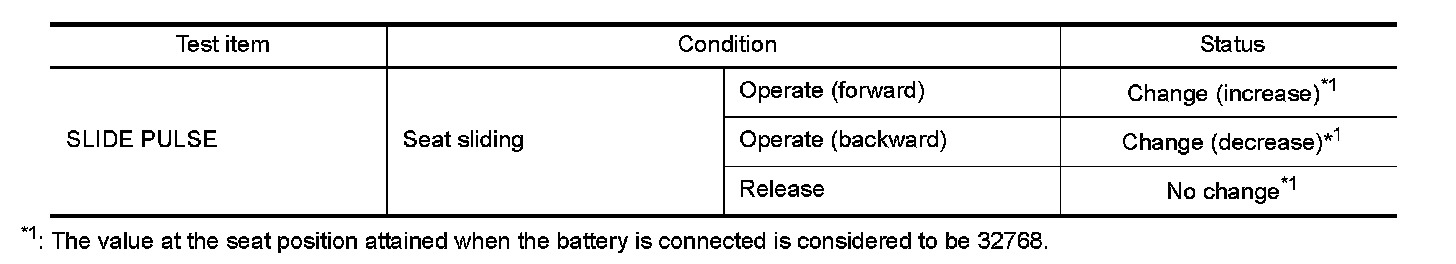

3.Check sliding sensor signal under the following conditions.





Is the indication normal?
YES- Sliding sensor function is OK.
NO- Refer to "DRIVER SIDE : Diagnosis Procedure" Diagnosis Procedure.
