Diagnosis Procedure

SLIDING MOTOR

PASSENGER SIDE : Diagnosis Procedure


1. CHECK SLIDING MOTOR POWER SUPPLY

1.Turn ignition switch OFF.
2.Disconnect sliding motor connector.

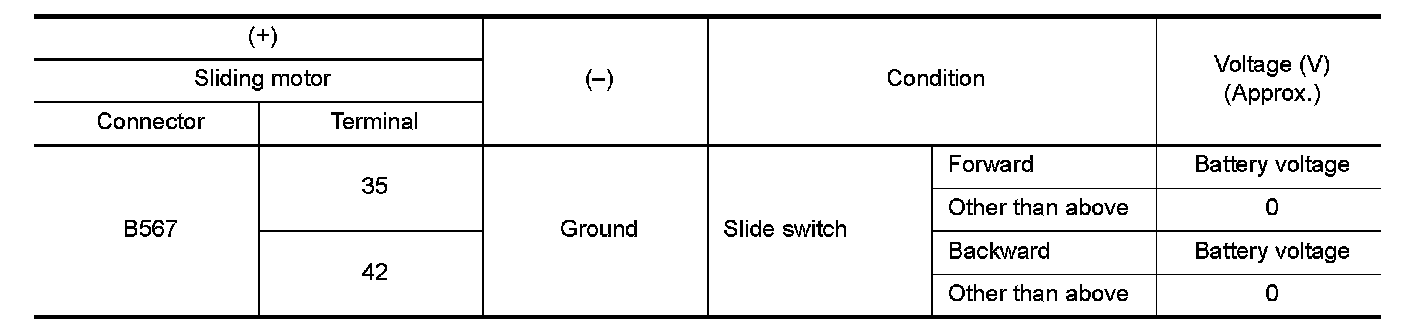

3.Check voltage between sliding motor harness connector and ground.





Is the inspection result normal?
YES- Replace sliding motor.
NO- GO TO 2.

2. CHECK SLIDING MOTOR CIRCUIT

1.Disconnect passenger seat control unit connector.

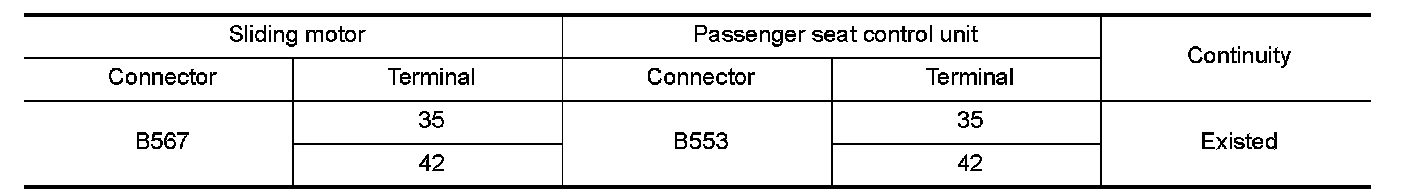

2.Check continuity between sliding motor harness connector and passenger seat control unit harness connector.

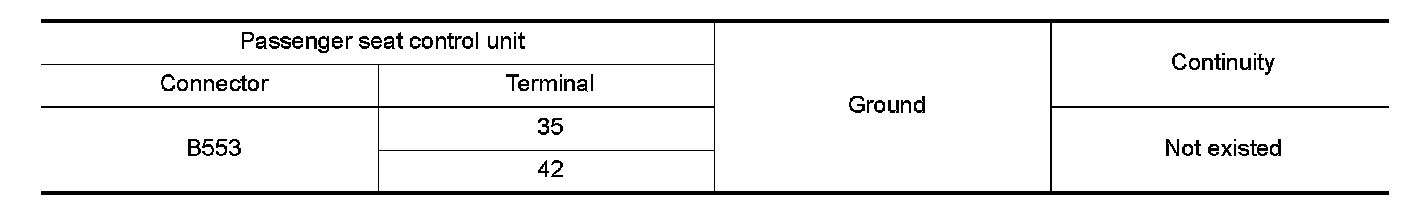

3.Check continuity between passenger seat control unit harness connector and ground.





Is the inspection result normal?
YES- Replace passenger seat control unit. Refer to "Removal and Installation" Removal and Installation.
NO- Repair or replace harness.
