Component Function Check

SLIDING LIMIT SWITCH

DRIVER SIDE : Component Function Check


1. CHECK FUNCTION

1.Turn ignition switch ON.
2.Select "FWD LIMIT SW" in the "Data Monitor" mode using CONSULT.

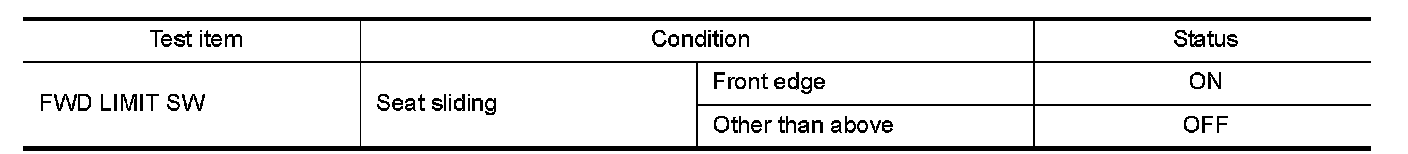

3.Check the sliding limit switch signal under the following condition.





Is the indication normal?
YES- Sliding limit switch function is OK.
NO- Refer to "DRIVER SIDE : Diagnosis Procedure" Diagnosis Procedure.
