Component Function Check

SEAT BELT BUCKLE SWITCH

DRIVER SIDE : Component Function Check


1. CHECK FUNCTION

1.Turn ignition switch ON.
2.Select "SEAT BELT SW" in the "Data Monitor" mode using CONSULT.

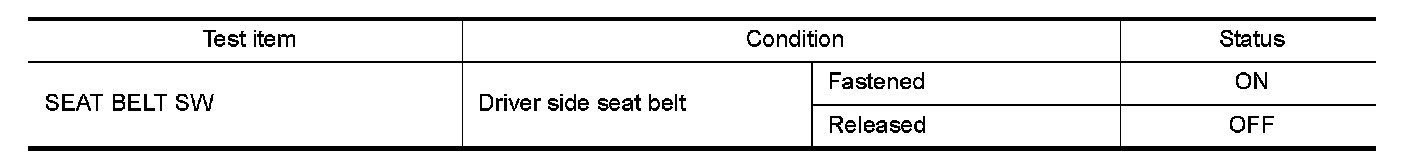

3.Check the forward switch signal under the following condition.





Is the indication normal?
YES- Seat belt buckle switch (driver side) function is OK.
NO- Refer to "DRIVER SIDE : Diagnosis Procedure" Diagnosis Procedure.
