Component Function Check

POWER WALK-IN SWITCH

DRIVER SIDE : Component Function Check


1. CHECK FUNCTION

1.Turn ignition switch ON.
2.Select "WALK-IN SW" in the "Data Monitor" mode using CONSULT.

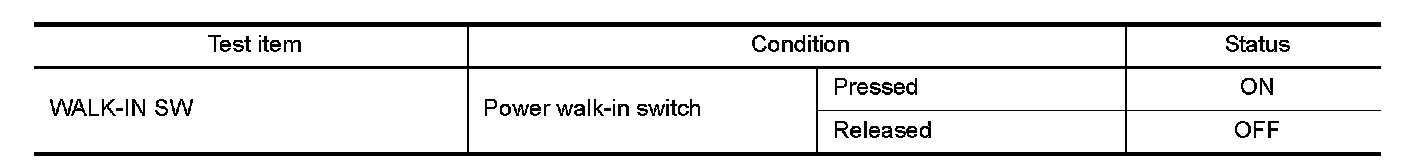

3.Check the power walk-in switch signal under the following condition.





Is the indication normal?
YES- Power walk-in switch function is OK.
NO- Refer to "DRIVER SIDE : Diagnosis Procedure" Diagnosis Procedure.
