Driver Side

POWER SEAT SWITCH GROUND CIRCUIT

DRIVER SIDE : Diagnosis Procedure


1. CHECK POWER SEAT SWITCH GROUND CIRCUIT

1.Turn ignition switch OFF.
2.Disconnect power seat switch connector.

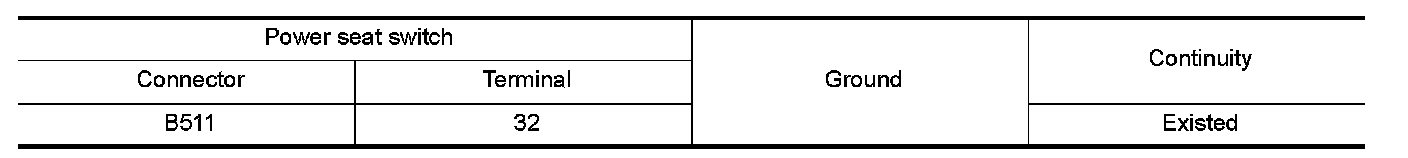

3.Check continuity between power seat switch connector and ground.





Is the inspection result normal?
YES- GO TO 2.
NO- Repair or replace harness.

2. CHECK POWER SEAT SWITCH INTERNAL CIRCUIT

Check lifting switch (rear).
Refer to "DRIVER SIDE : Component Inspection" Component Inspection.
Is the inspection result normal?
YES- GO TO 3.
NO- Replace power seat switch. Refer to "Removal and Installation" Power Seat Switch.

3. CHECK INTERMITTENT INCIDENT

Check intermittent incident.
Refer to "Intermittent Incident" Intermittent Incident.
- INSPECTION END
