Sliding Switch

SLIDING SWITCH

SEATBACK : Removal and Installation


REMOVAL


CAUTION:
When removing and installing, use shop cloths to protect parts from damage.





1.Remove seatback pad. Refer to "Removal and Installation" Removal and Installation.

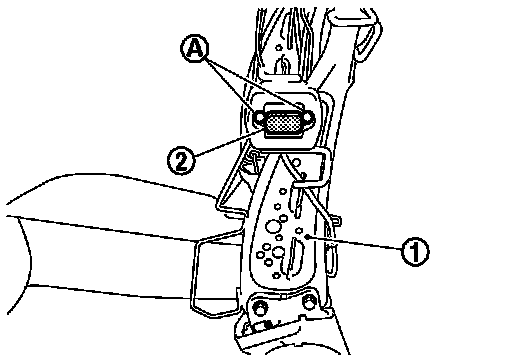

2.Remove screws (A).
3.Disconnect seat sliding switch (seatback) connector.
4.Remove seat sliding switch (seatback) (2) from seatback frame (1).

INSTALLATION

Install in the reverse order of removal.

CAUTION:
Always clamp the harness to the right place.
