Removal and Installation

REAR SEAT

Removal and Installation


REMOVAL


CAUTION:
When removing and installing, use shop cloths to protect parts from damage.
1.Remove the seat cushion.

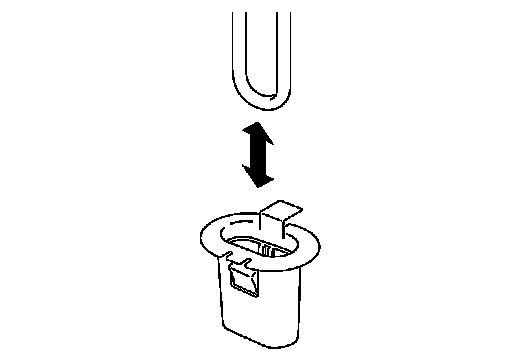

- Pull the seat cushion up, and then remove the seat cushion from the seat cushion hook.
- Remove the seat cushion from the vehicle.
2.Remove the seatback.
- Remove rear seat belt outer anchor mounting bolts (LH/RH).
- Remove rear seatback mounting bolts (LH/RH).
- Remove rear seat belt escutcheons (LH/RH).
- Pull seatback up, and then remove seatback.

INSTALLATION

Install in the reverse order of removal.

CAUTION:
When removing and installing, use shop cloths to protect parts from damage.
