Heated Seat Control Unit




HEATED SEAT CONTROL UNIT

Reference Value

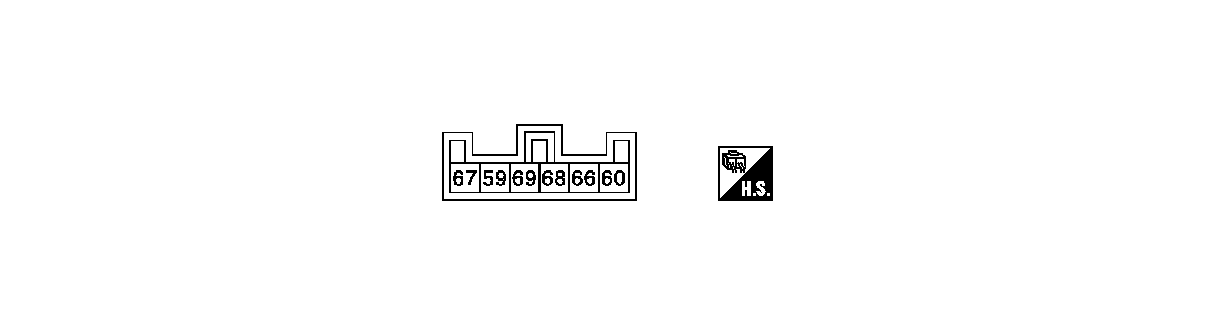

TERMINAL LAYOUT

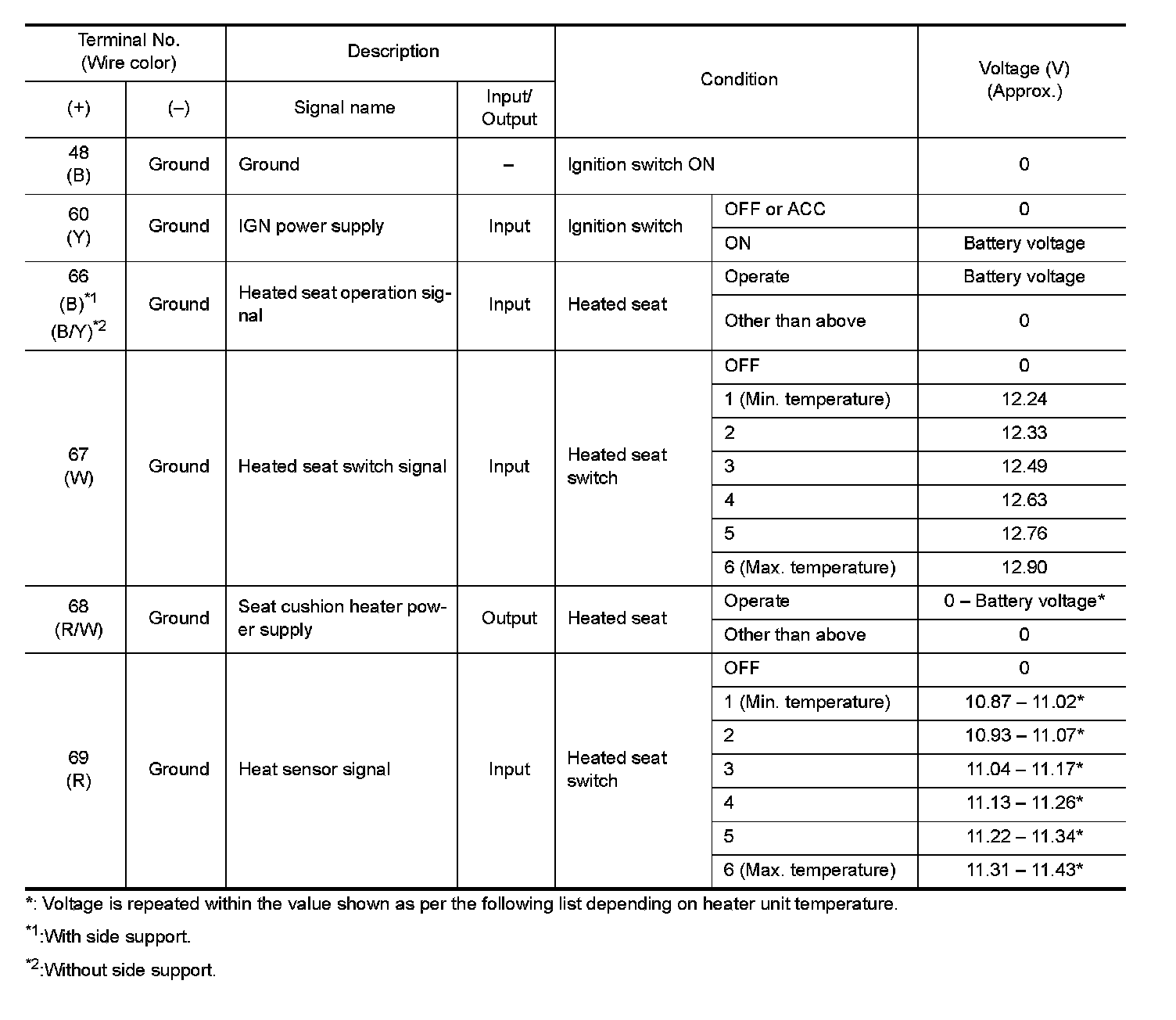

PHYSICAL VALUES
