Component Inspection

FORWARD SWITCH

PASSENGER SIDE : Component Inspection


1. CHECK FORWARD SWITCH

1.Turn ignition switch OFF.
2.Disconnect forward switch connector.

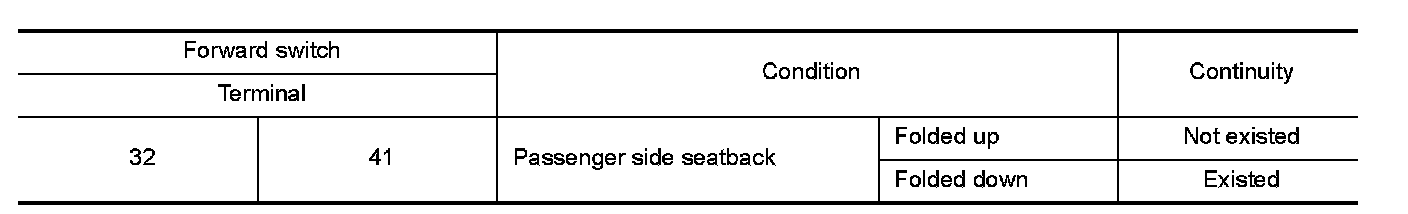

3.Check continuity between forward switch terminals.





Is the inspection result normal?
YES- INSPECTION END
NO- Replace forward switch. Refer to "Exploded View" Exploded View.
