Component Function Check

FORWARD SWITCH

DRIVER SIDE : Component Function Check


1. CHECK FUNCTION

1.Turn ignition switch ON.
2.Select "FORWARD SW" in the "Data Monitor" mode using CONSULT.

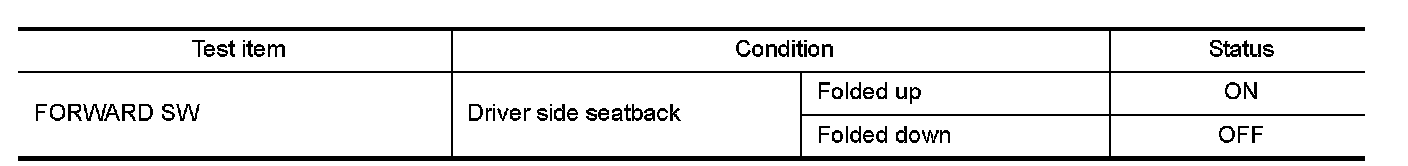

3.Check the forward switch signal under the following condition.





Is the indication normal?
YES- Forward switch function is OK.
NO- Refer to "DRIVER SIDE : Diagnosis Procedure" Diagnosis Procedure.
