Seat

SIDE SUPPORT SWITCH

Removal and Installation


REMOVAL


CAUTION:
When removing and installing, use shop cloths to protect parts from damage.

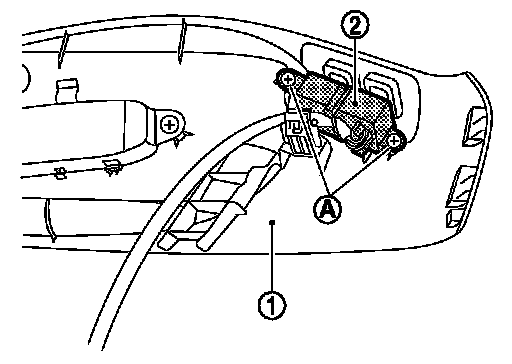

1.Remove seat cushion outer finisher (1). Refer to "Removal and Installation" Removal and Installation.





2.Remove screws (A).
3.Remove side support switch (2) from seat cushion outer finisher.

INSTALLATION

Install in the reverse order of removal.

CAUTION:
Always clamp the harness to the right place.
