Automatic Drive Positioner

SIDE SUPPORT SWITCH

Removal and Installation


REMOVAL


CAUTION:
When removing and installing, use shop cloths to protect parts from damage.

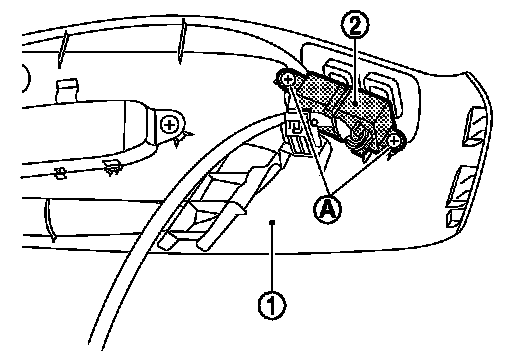

1.Remove seat cushion outer finisher (1). Refer to "Removal and Installation" Removal and Installation





2.Remove screws (A).
3.Remove side support switch (2) from seat cushion outer finisher.

INSTALLATION

Install in reverse order of removal.

CAUTION:
Be sure to clump the harness to the right place.
