AUTOMATIC DRIVE POSITIONER SYSTEM

AUTOMATIC DRIVE POSITIONER SYSTEM : Component Description

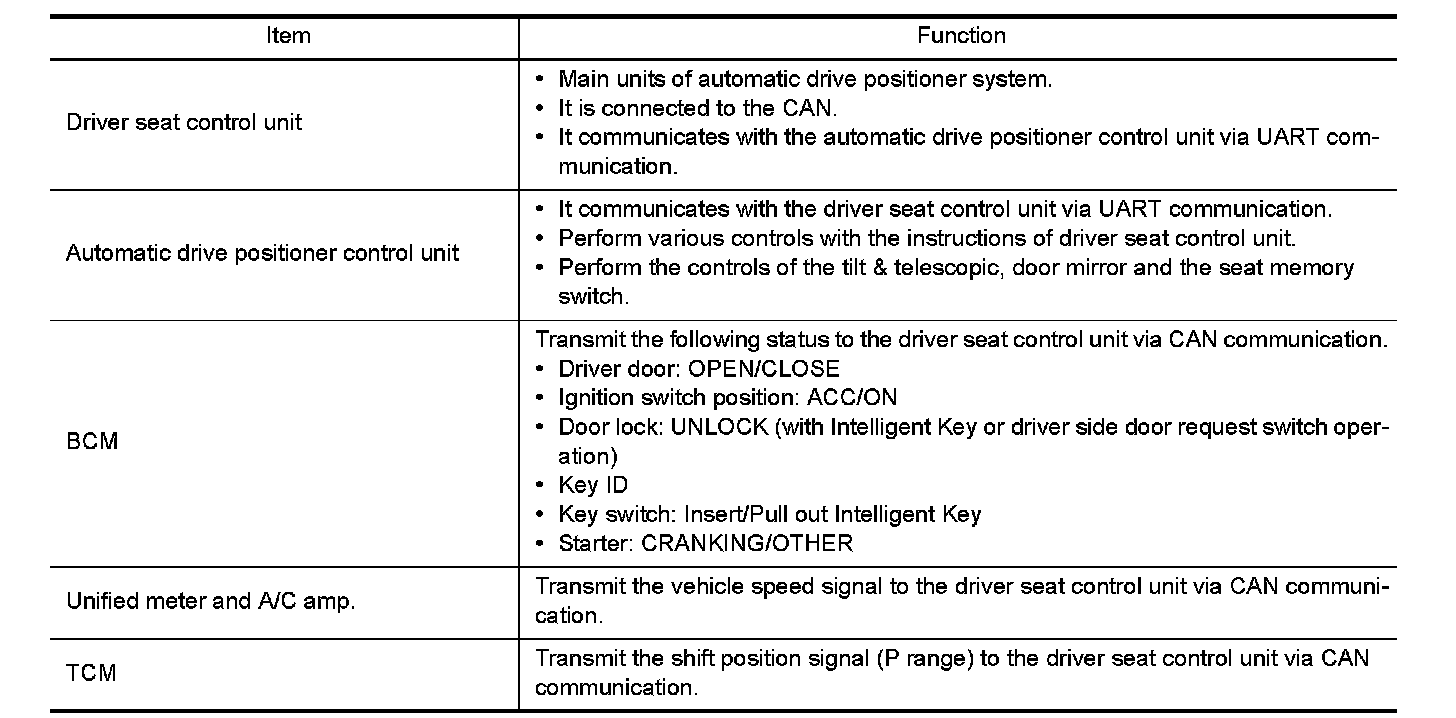

CONTROL UNITS

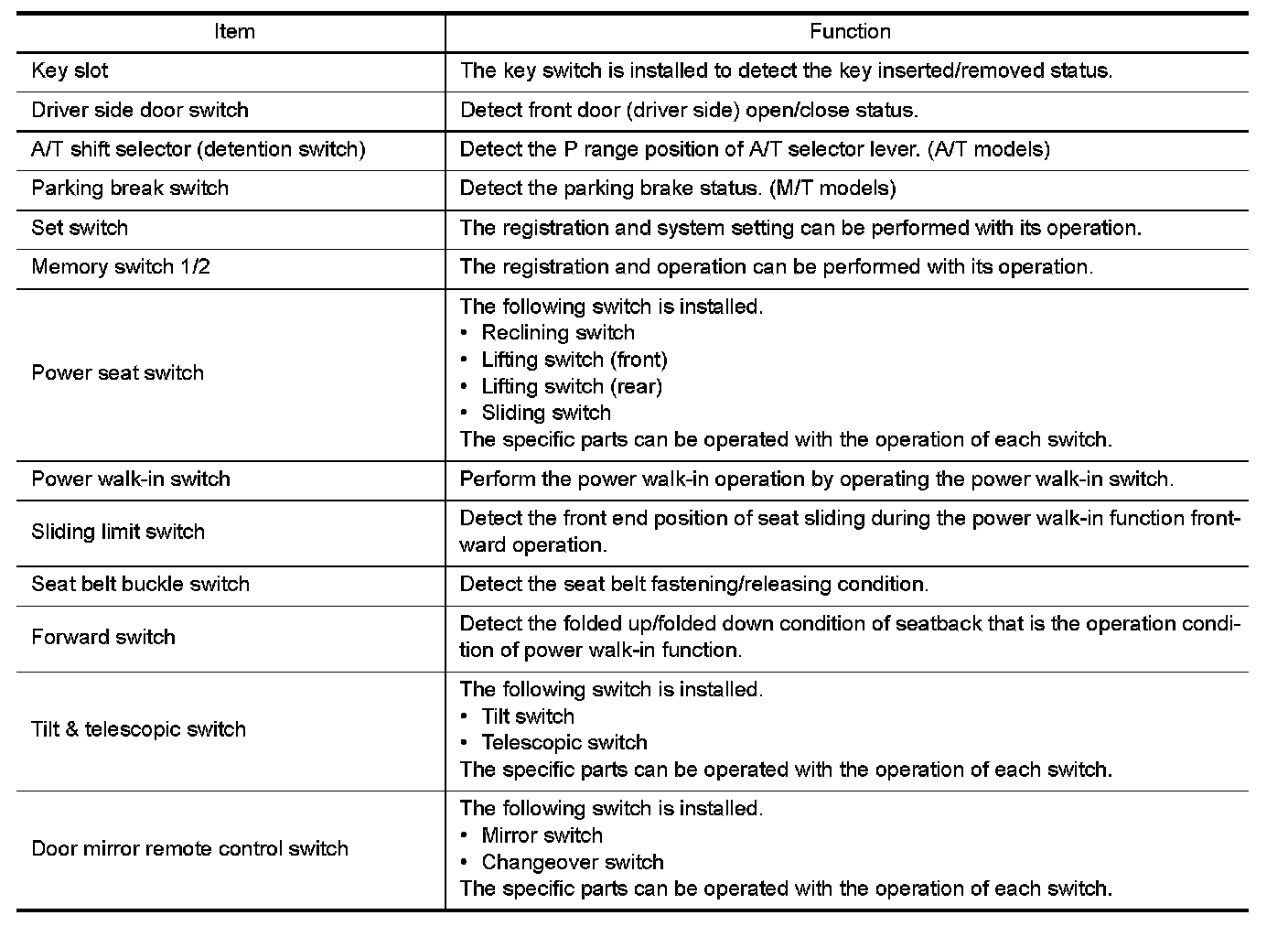

INPUT PARTS

Switches

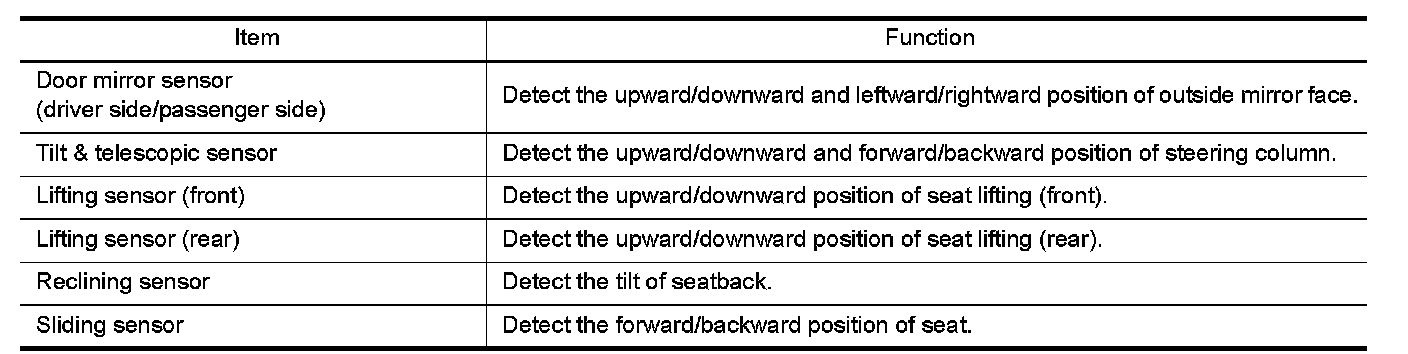

Sensors

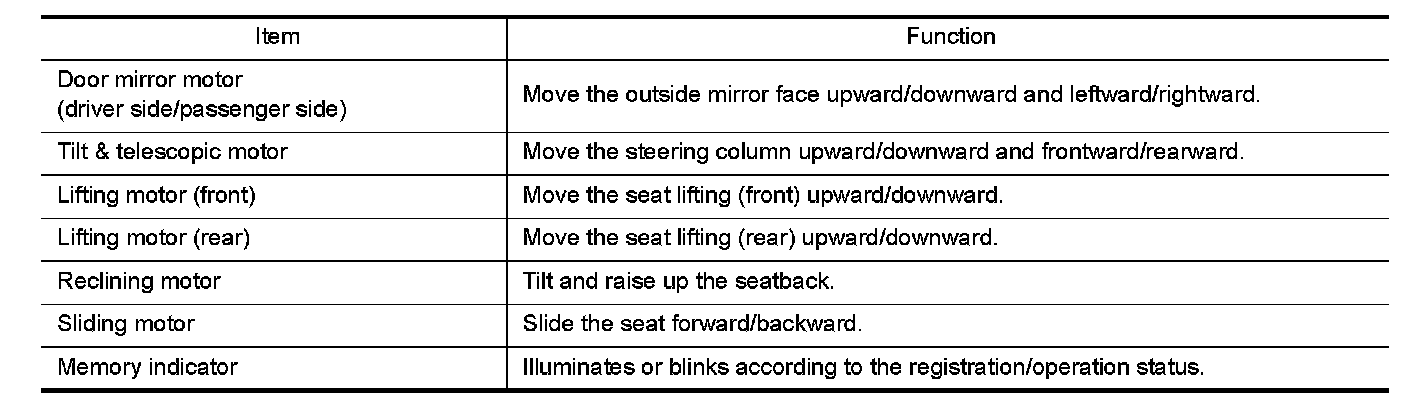

OUTPUT PARTS







SLEEP MODE

- The seat control unit adopts the sleep mode to reduce the electric power consumption.
- The sleep mode is activated when all of the following condition are fulfilled.
1.Ignition switch turn OFF
2.No load is applied to the seat control
3.The seat control unit 45seconds timer in not activated
4.Set switch and memory switch (1 and 2) turn OFF

WAKE-UP MODE

- The sleep mode is cancelled when any status change is detected for the followings.
1.CAN communication
2.Power seat switch
3.Set switch and memory switch (1 and 2)
4.Power walk-in switch
5.Door mirror switch
6.Steering column switch
