Scan Tool Testing and Procedures

DIAGNOSIS SYSTEM (RETRACTABLE HARD TOP CONTROL UNIT)

CONSULT Function


APPLICATION ITEM

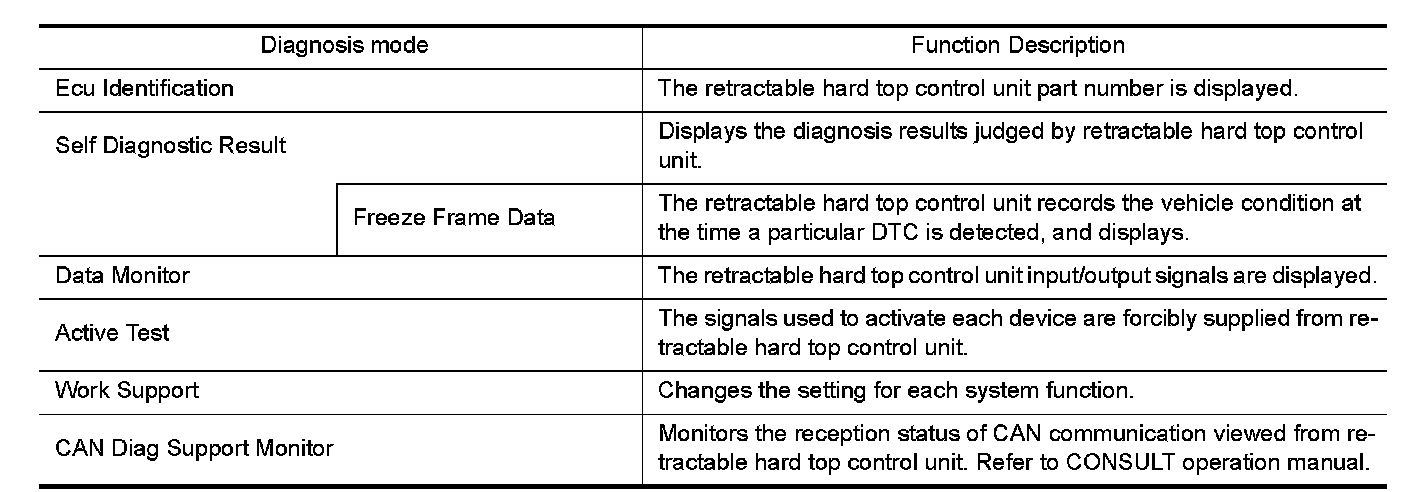

CONSULT performs the following functions via CAN communication with retractable hard top control unit.






WORK SUPPORT







SELF-DIAG RESULT

Refer to "DTC Index" Testing and Inspection.
Freeze Frame Data
The retractable hard top control unit records the following vehicle condition at the time a particular DTC is detected, and displays on CONSULT.

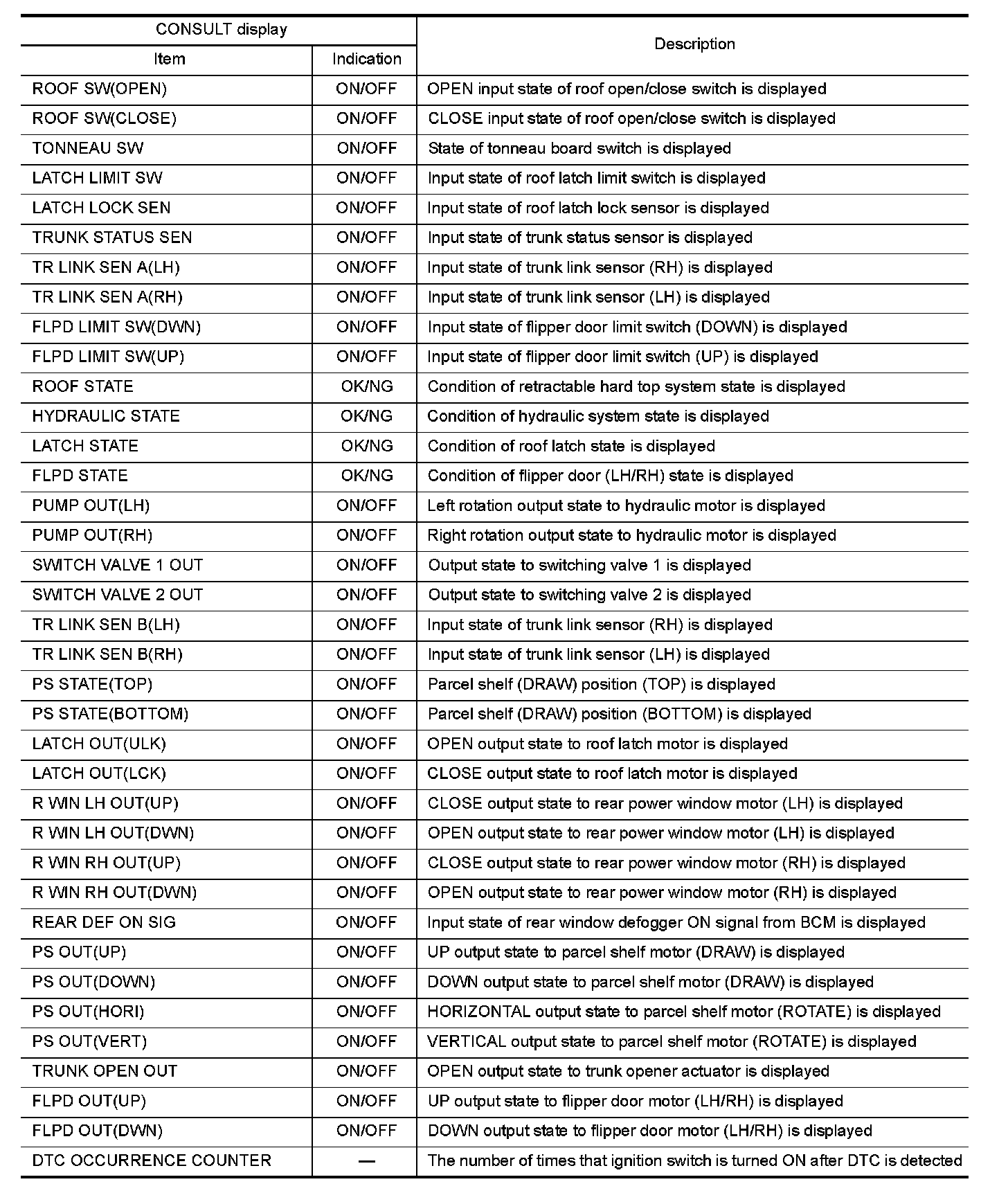

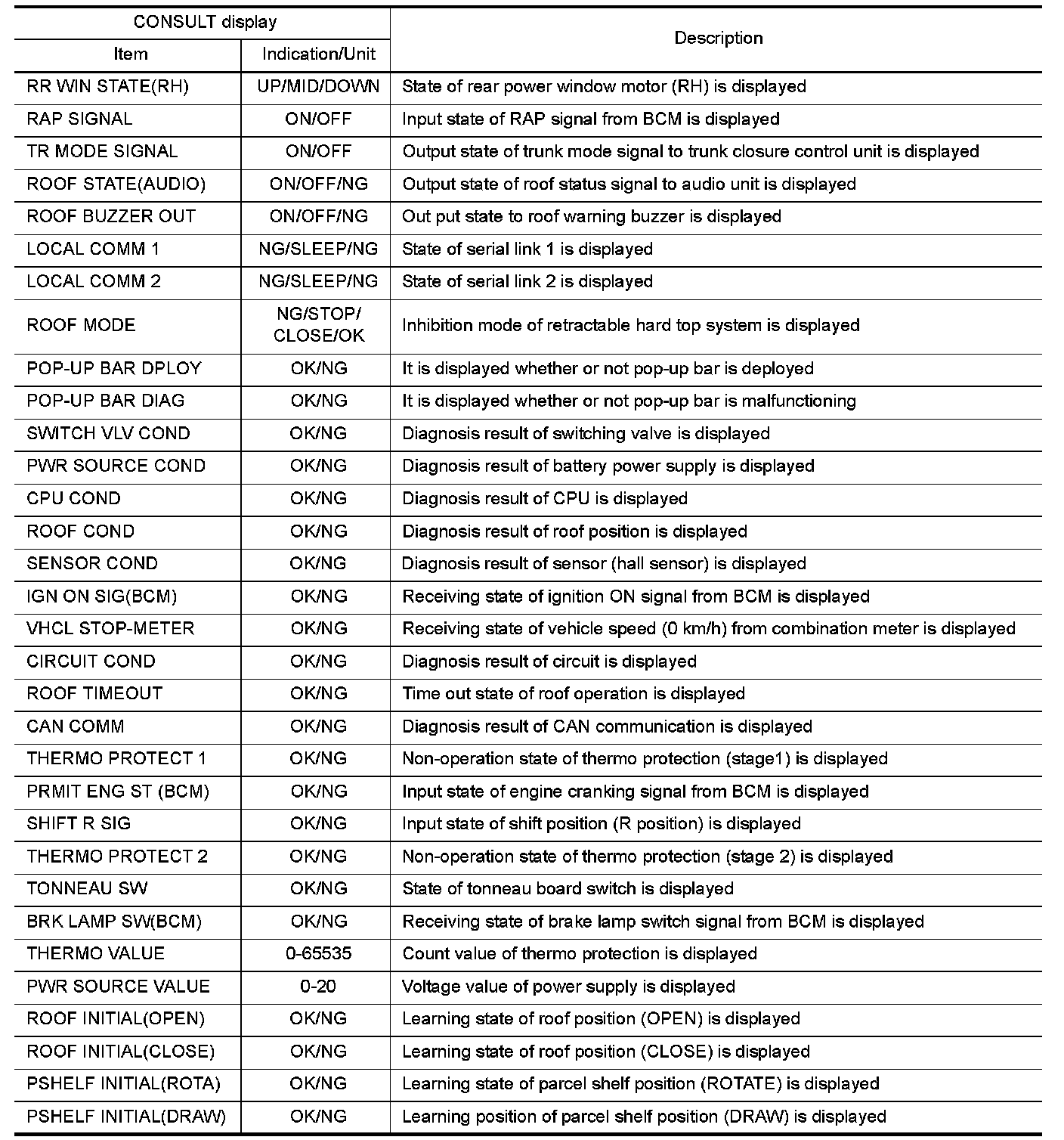

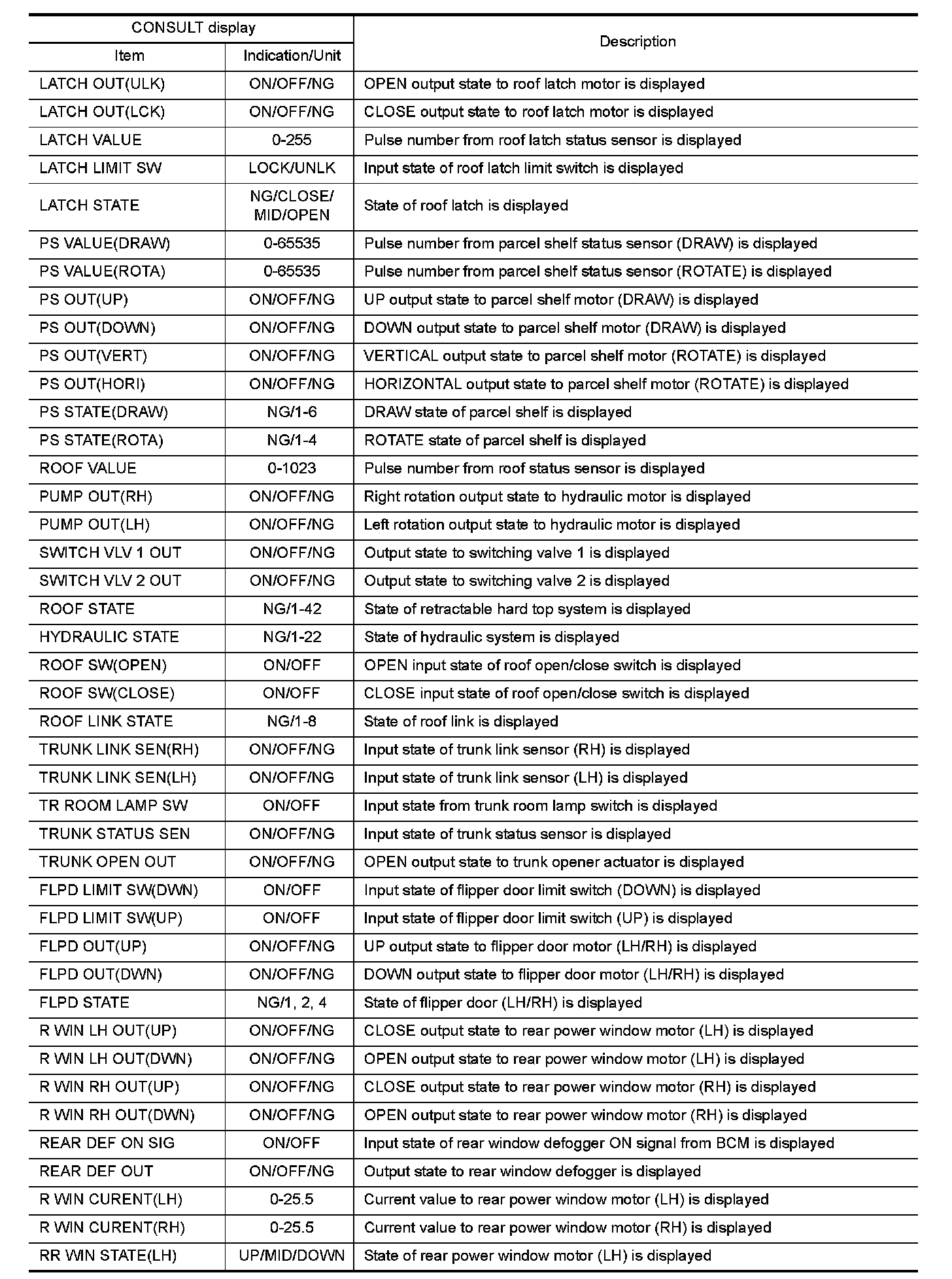

DATA MONITOR

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable to this vehicle, refer to CONSULT display items.

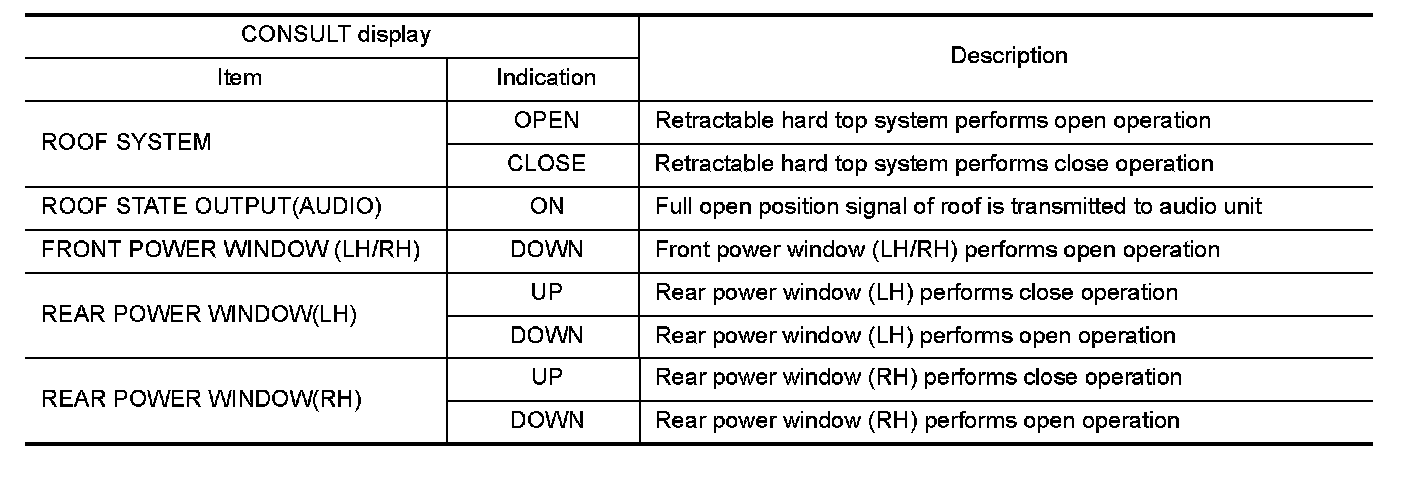

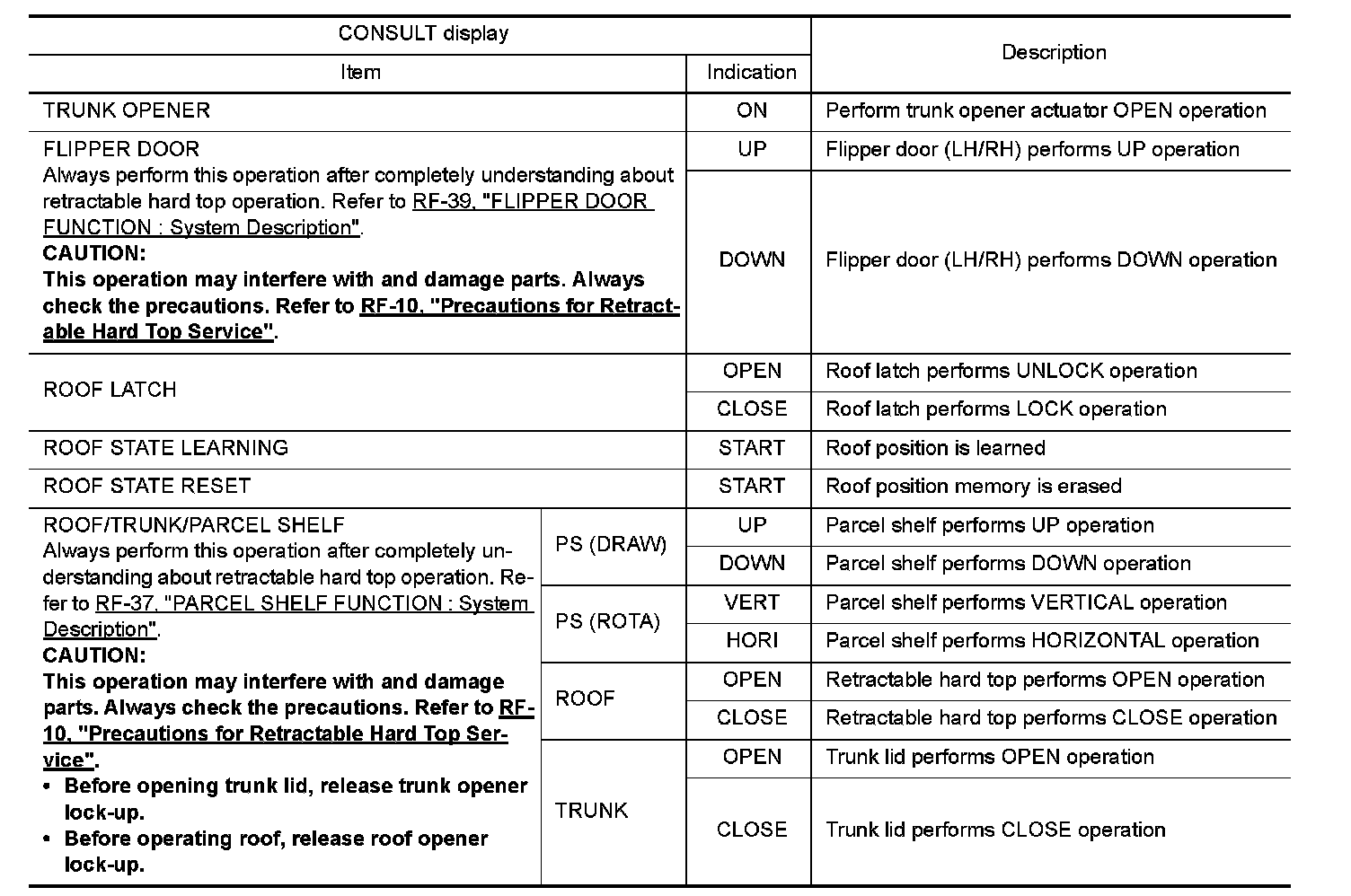

ACTIVE TEST
