Trunk Closure Control Unit




TRUNK CLOSURE CONTROL UNIT

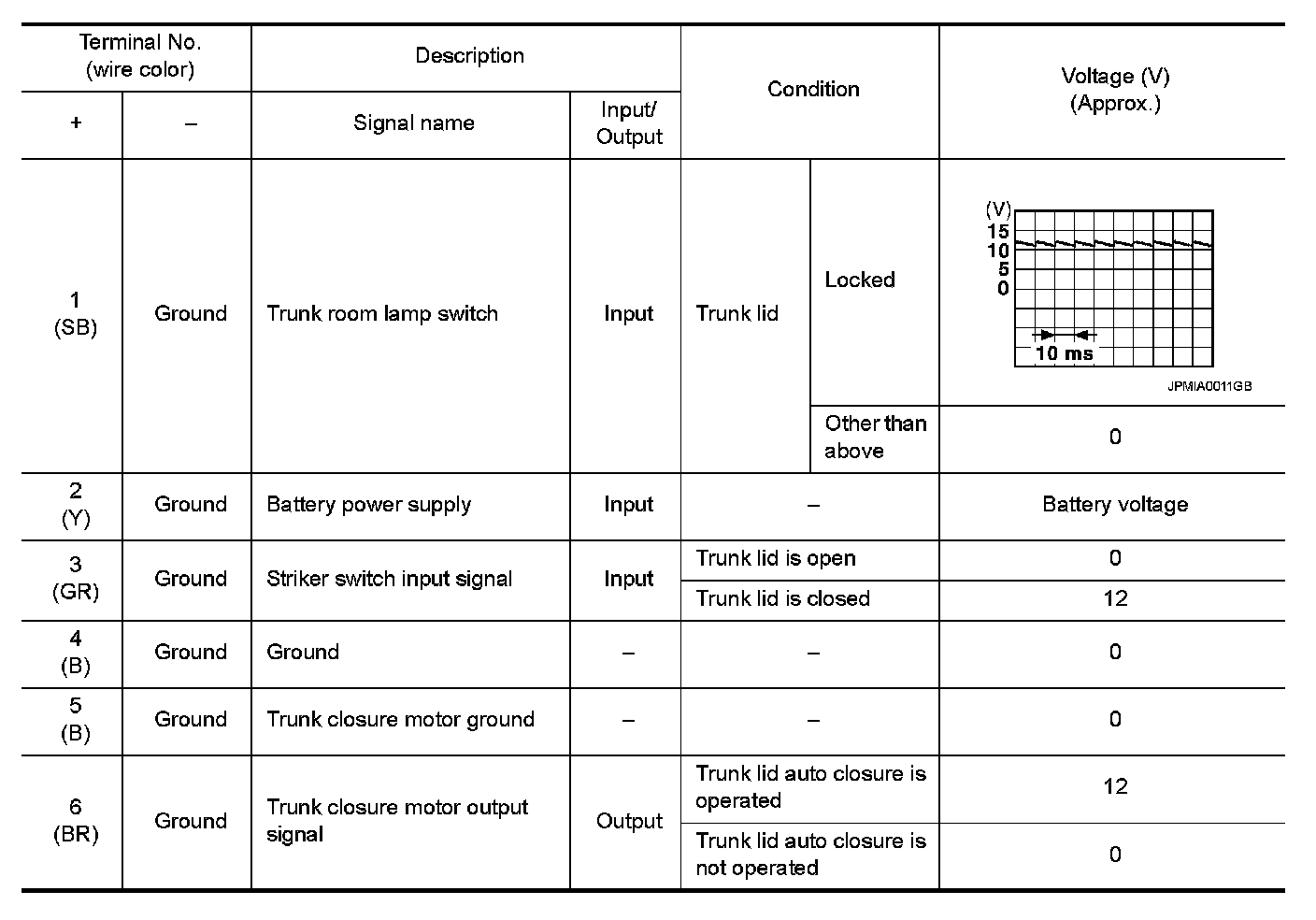

Reference Value

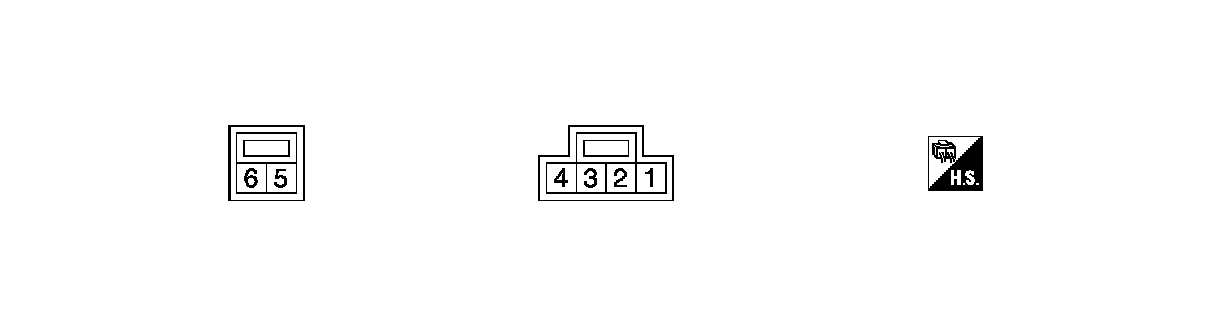

TERMINAL LAYOUT







PHYSICAL VALUES
