Power Window Control System




RETRACTABLE HARD TOP CONTROL UNIT

Reference Value


VALUES ON THE DIAGNOSIS TOOL

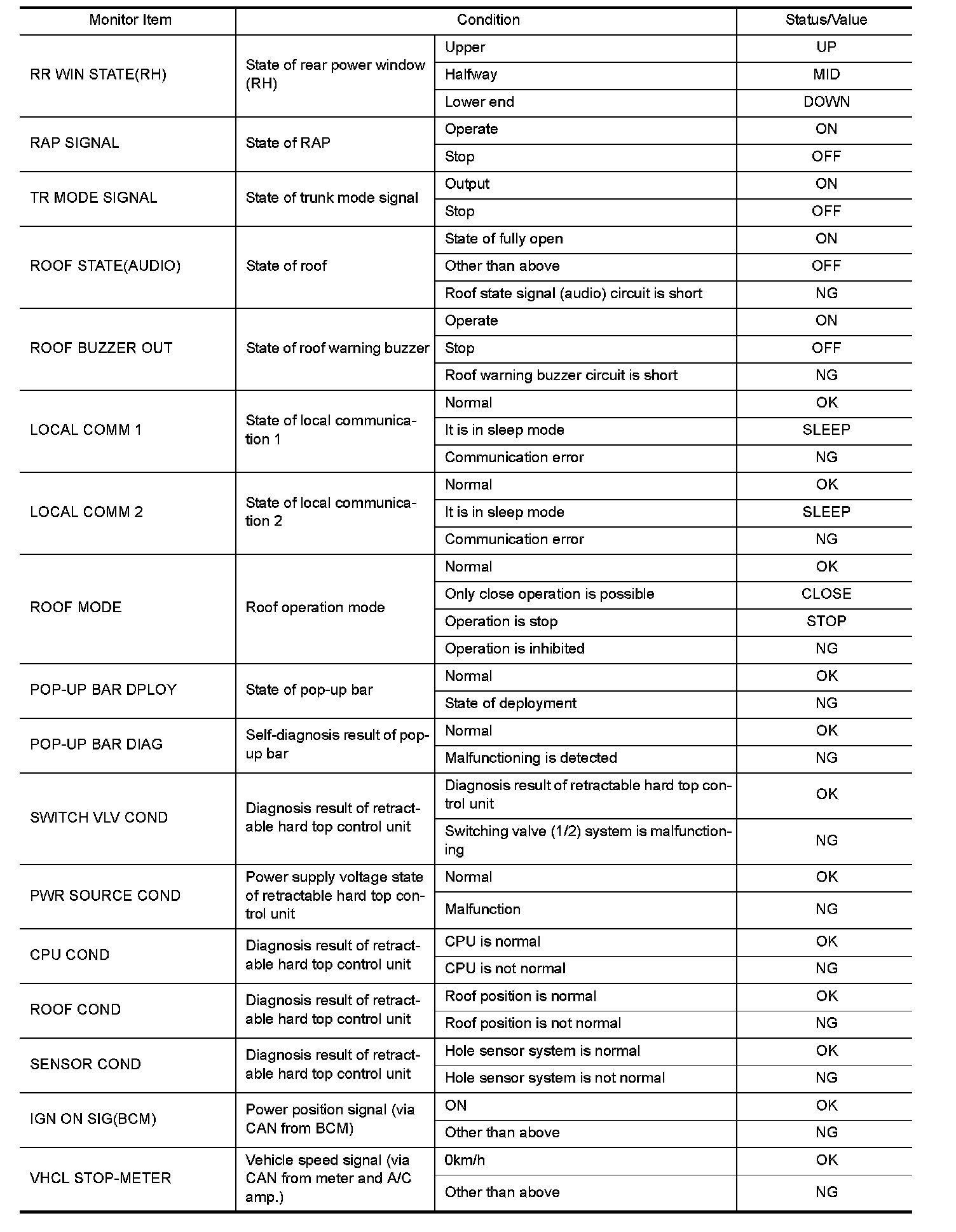

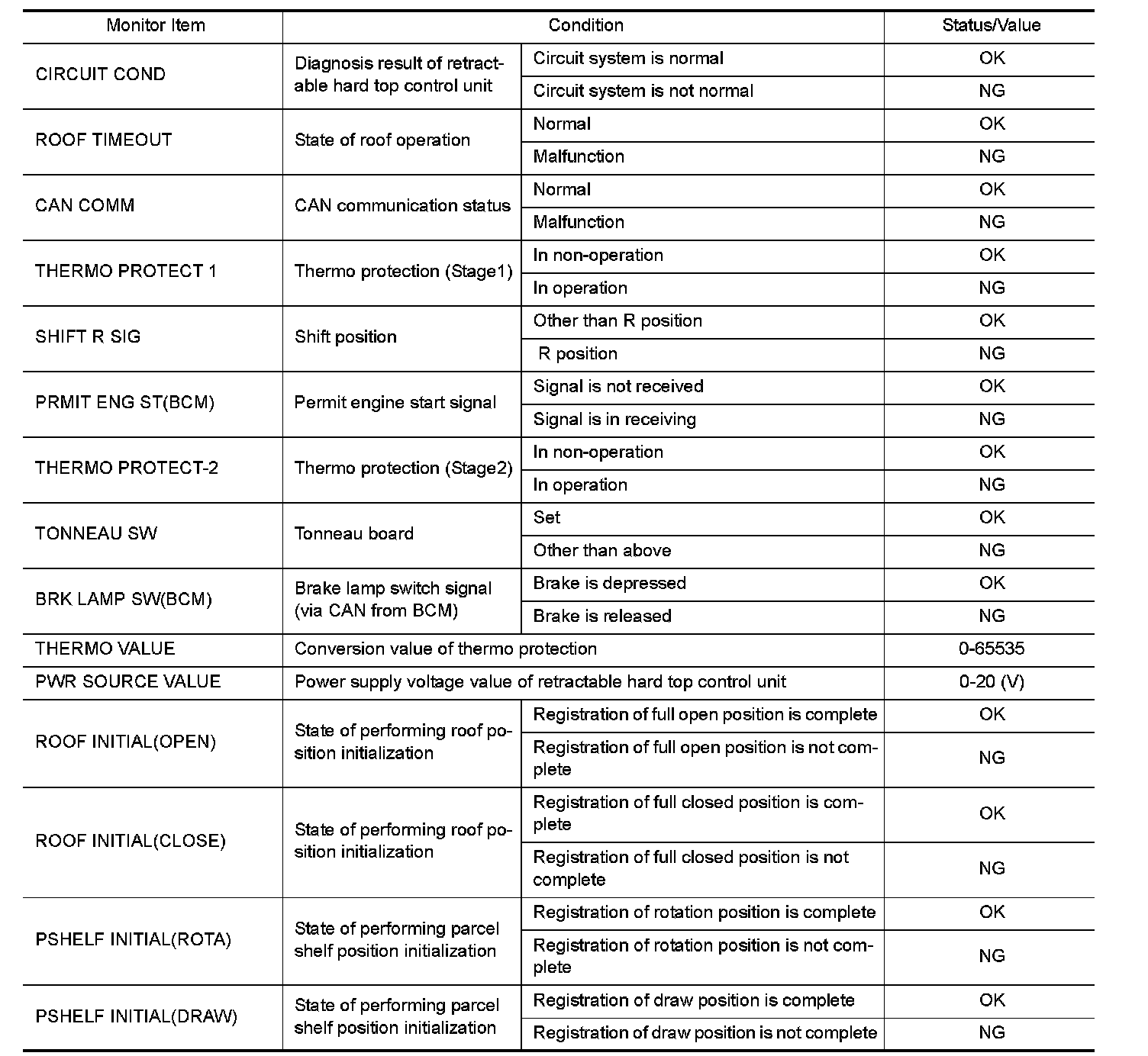

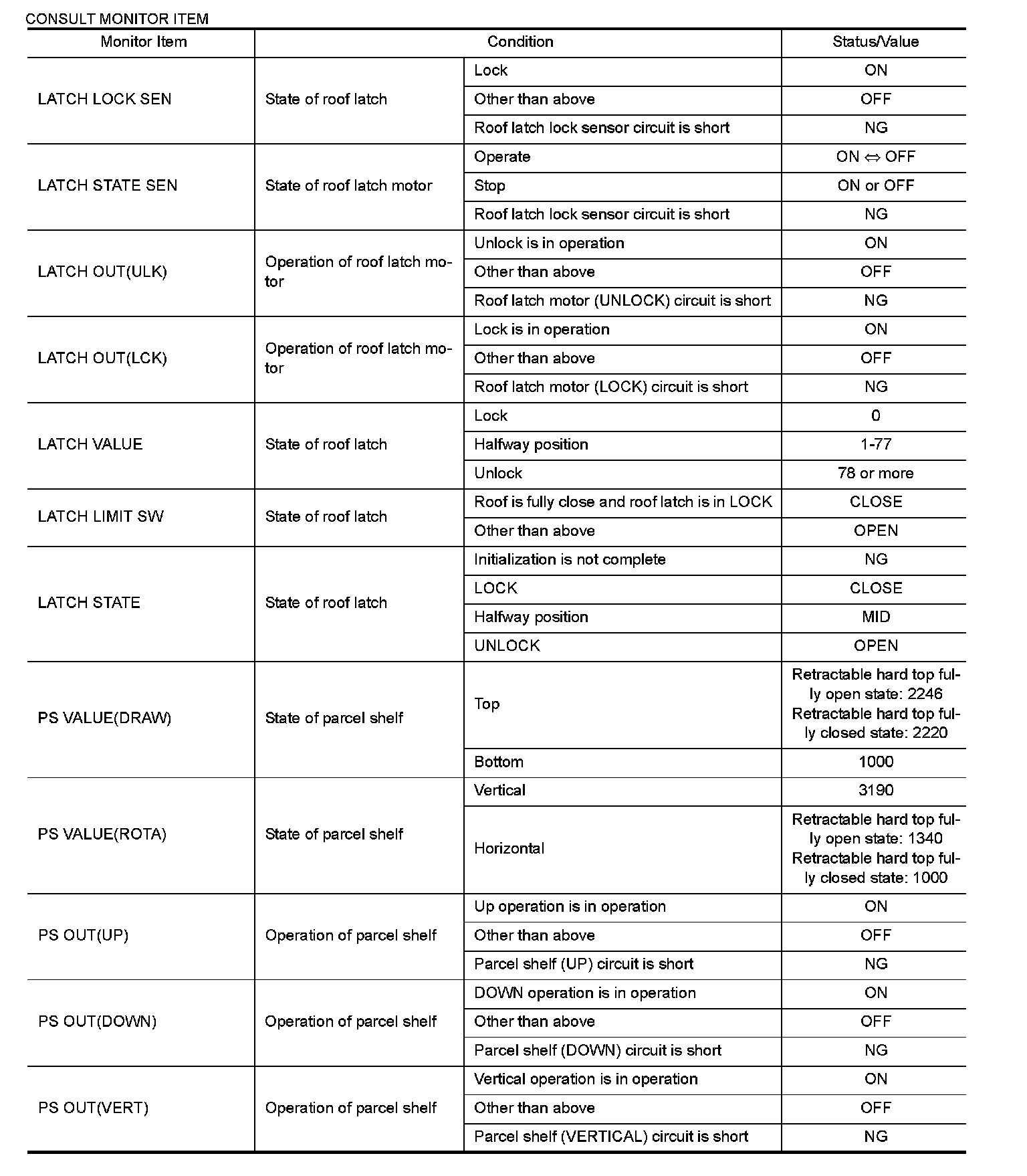

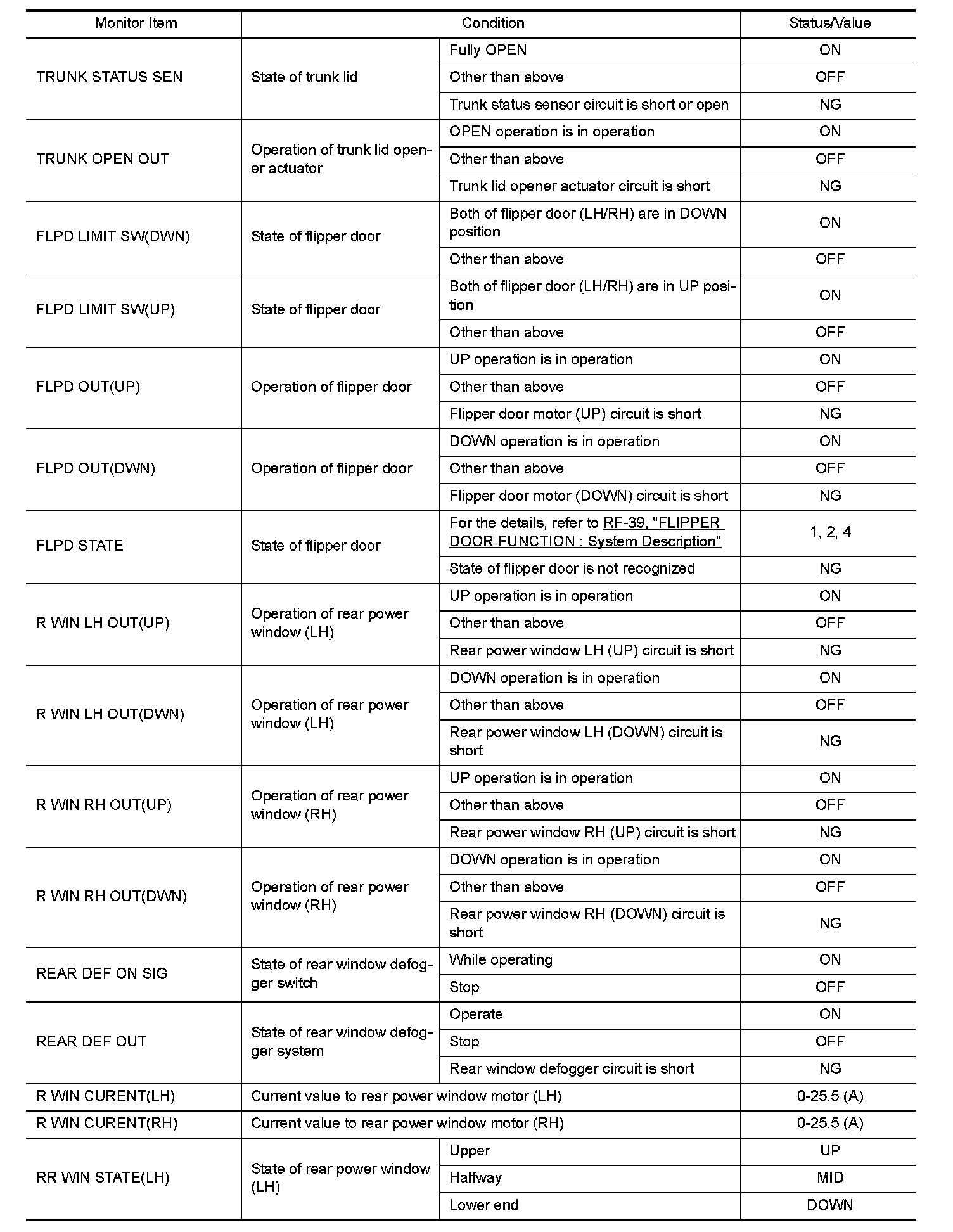

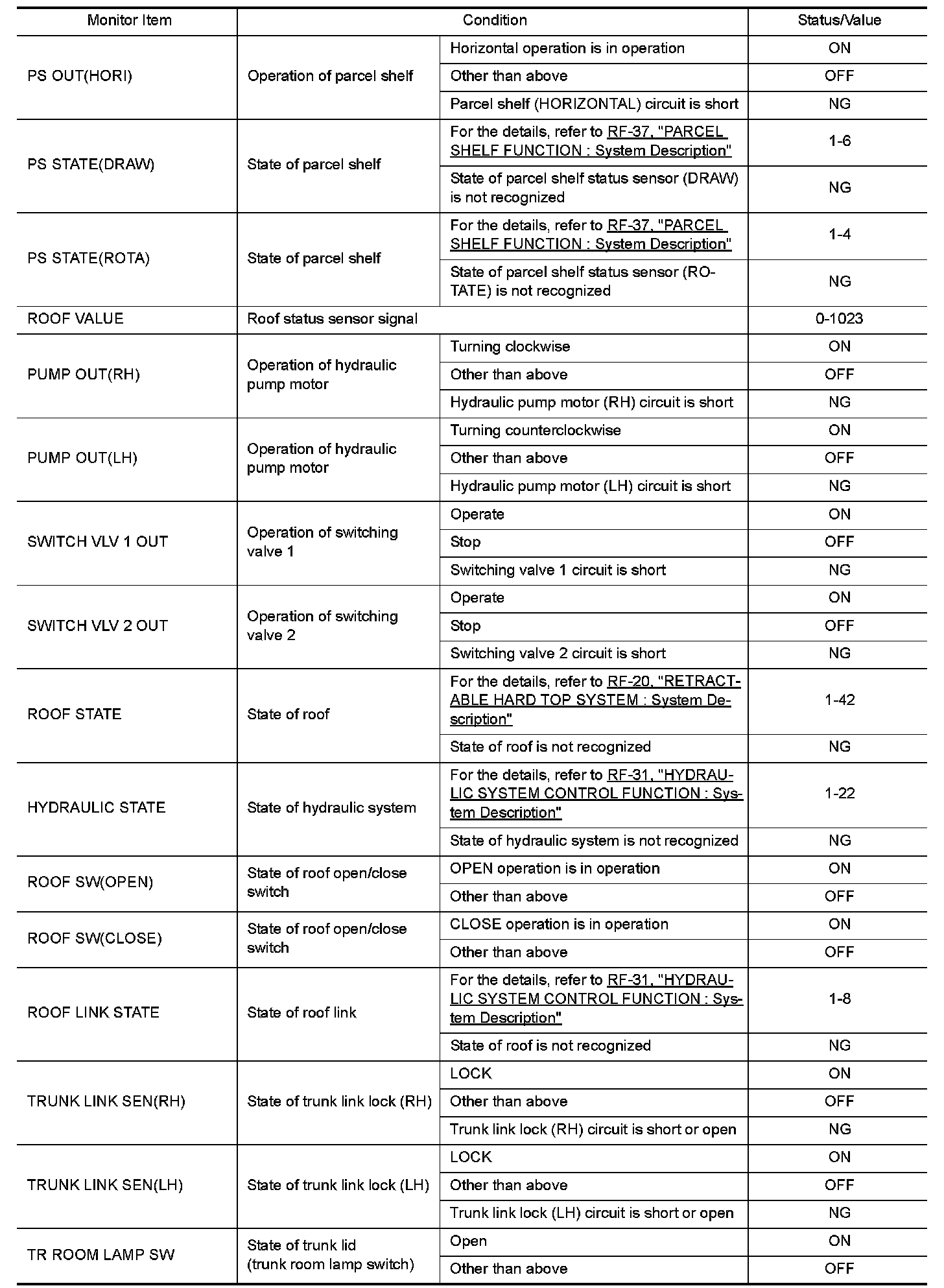

CONSULT MONITOR ITEM

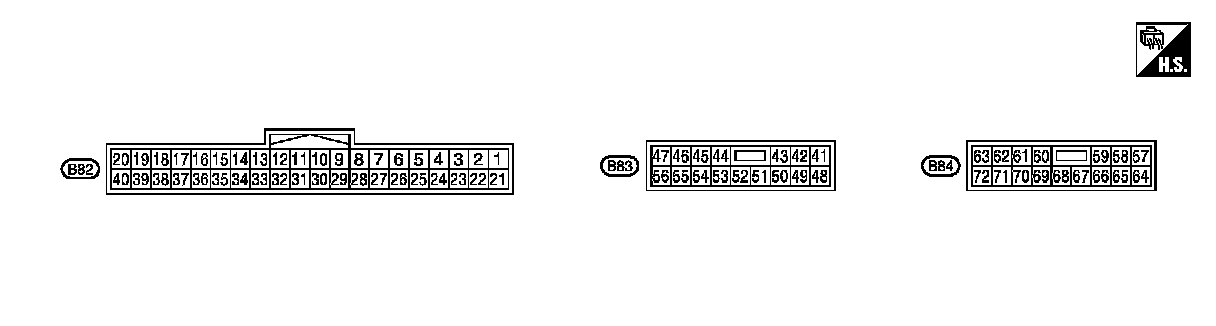

TERMINAL LAYOUT

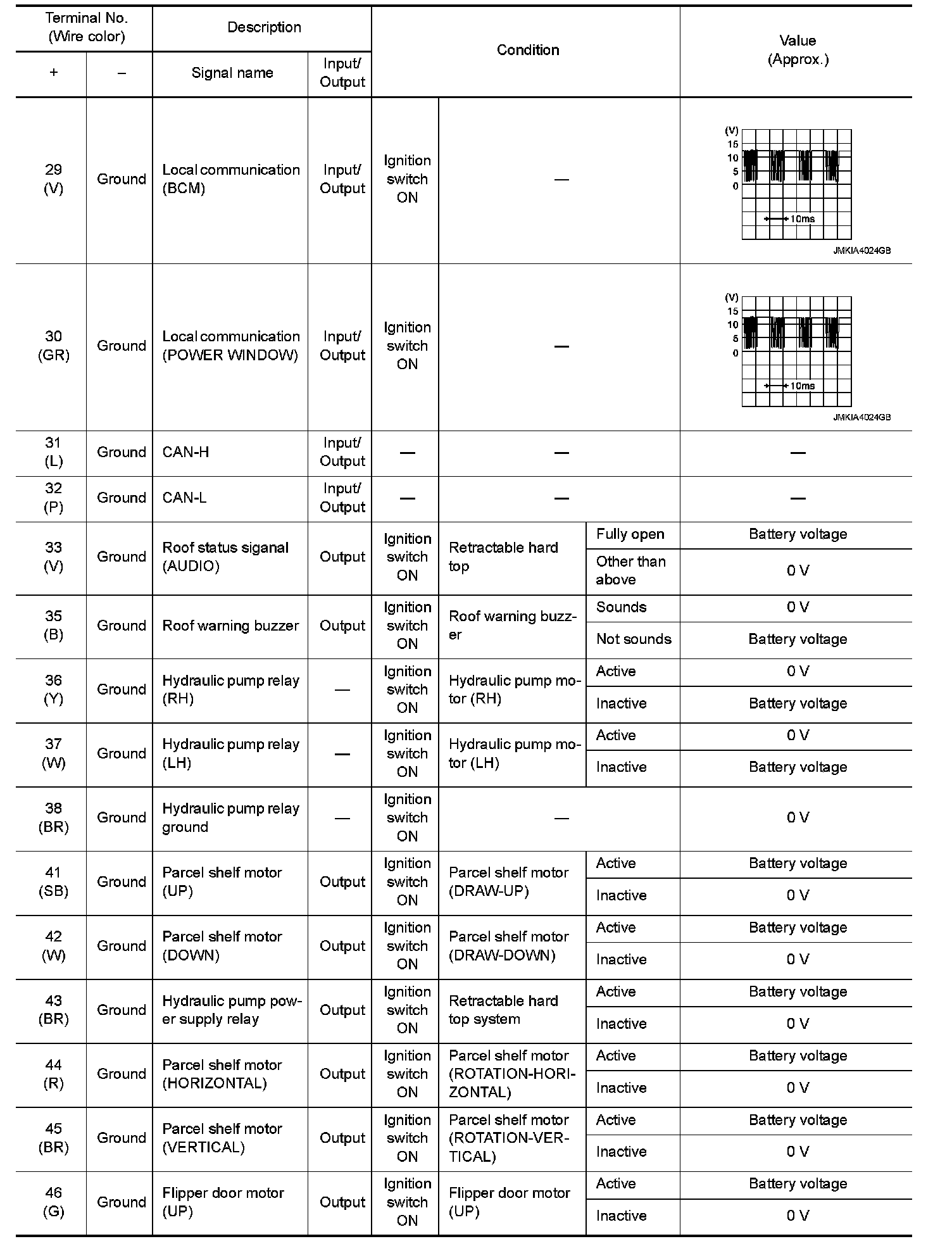

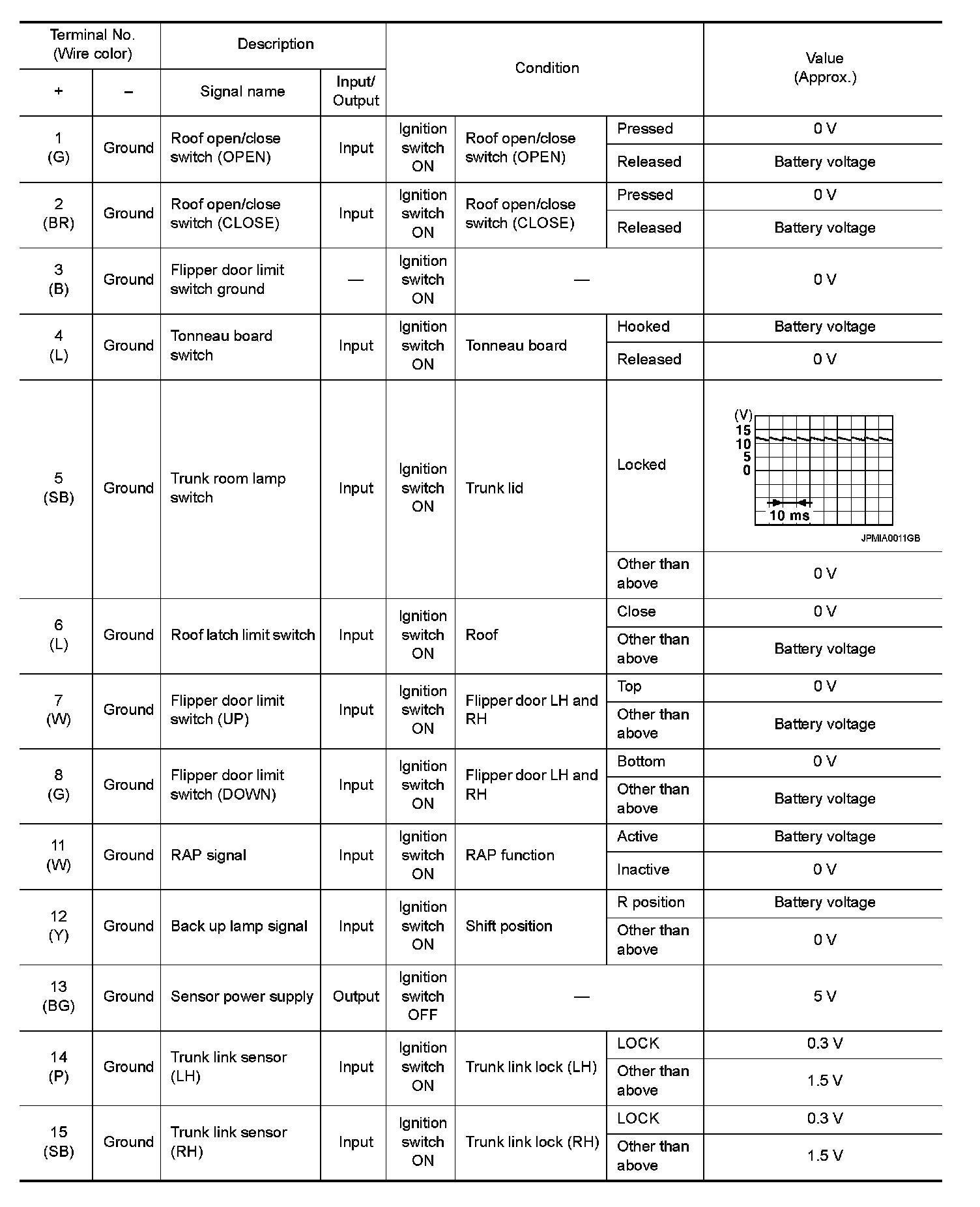

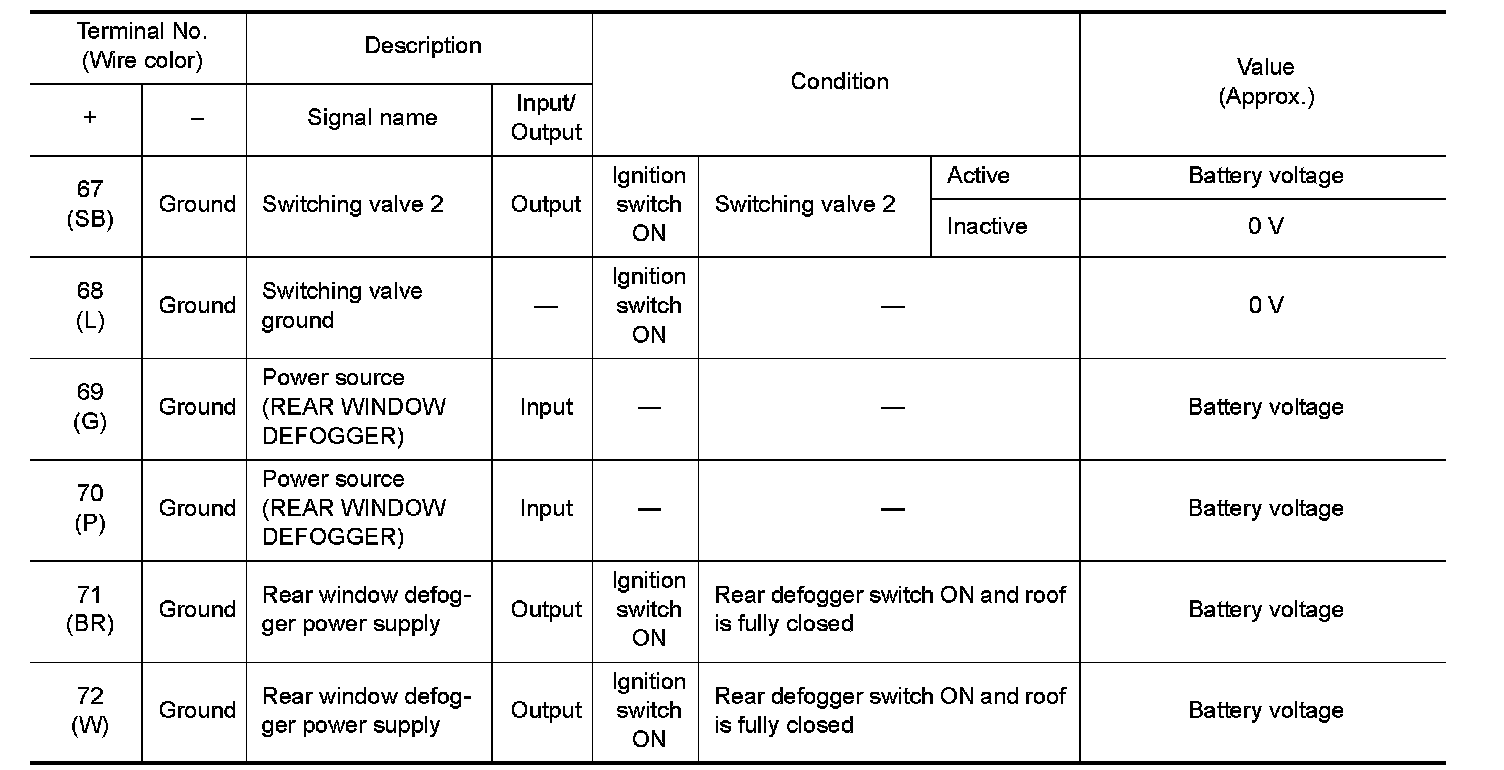

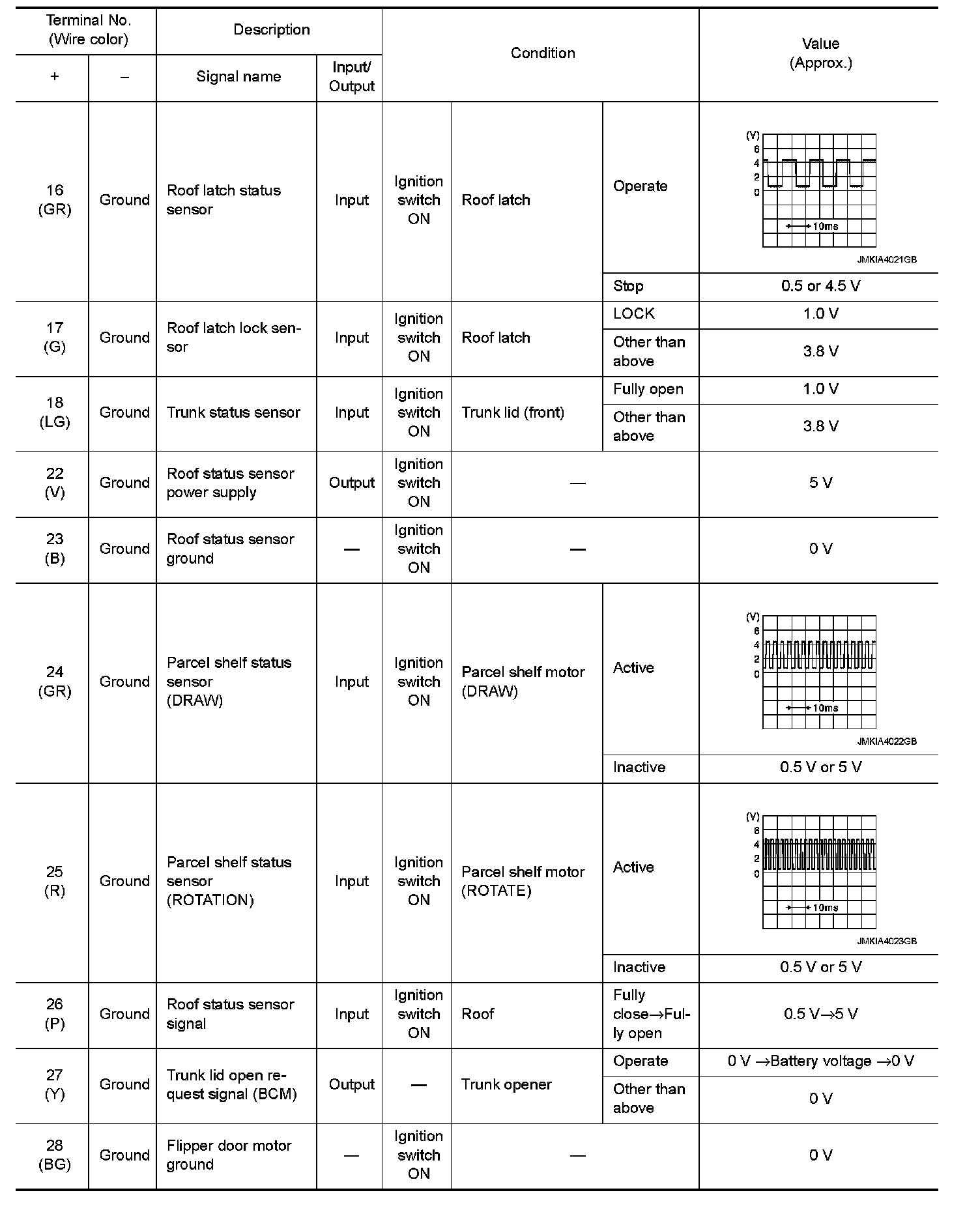

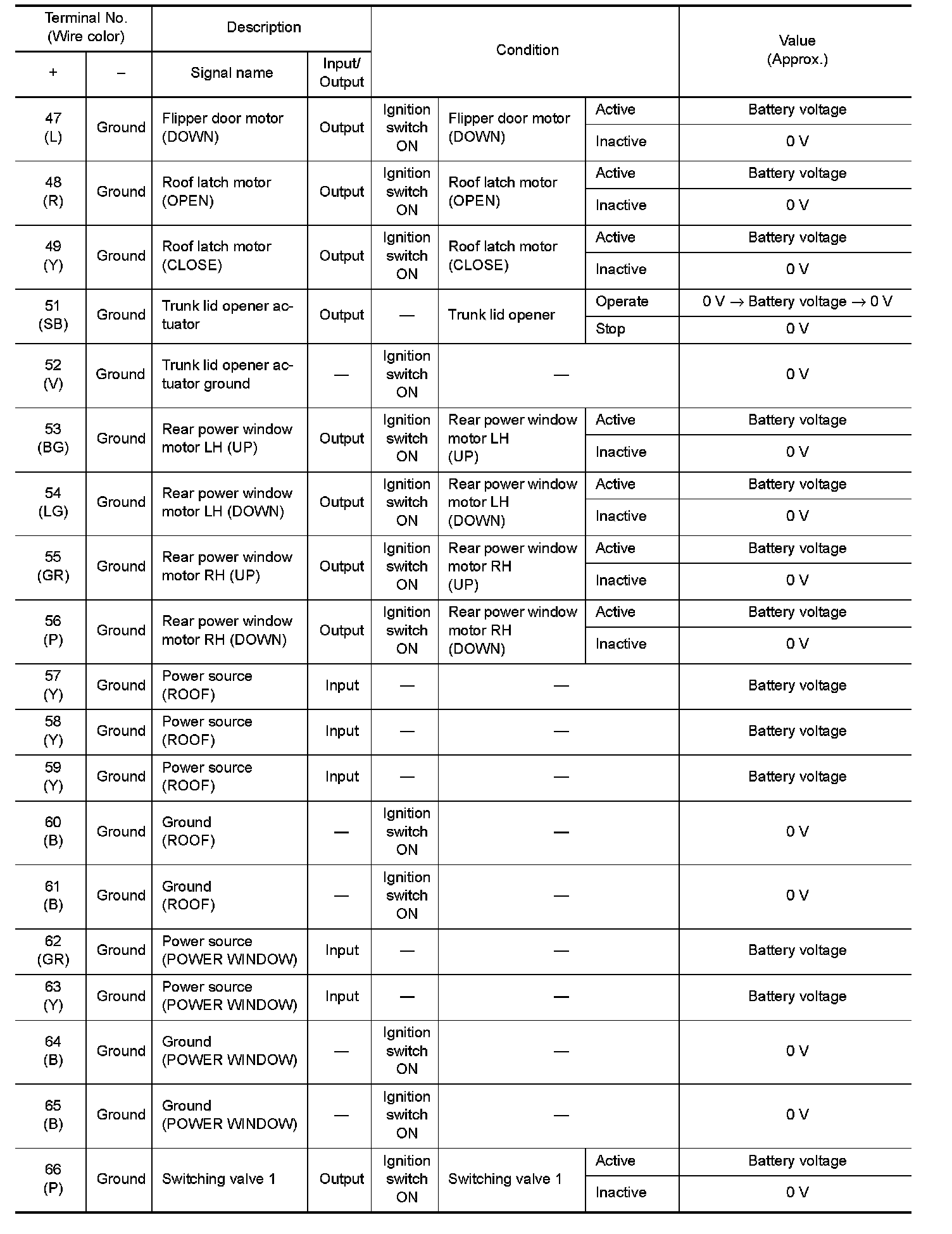

PHYSICAL VALUES
