Trunk Closure Control Unit




TRUNK CLOSURE CONTROL UNIT

Fail-safe


FAIL-SAFE CONTROL

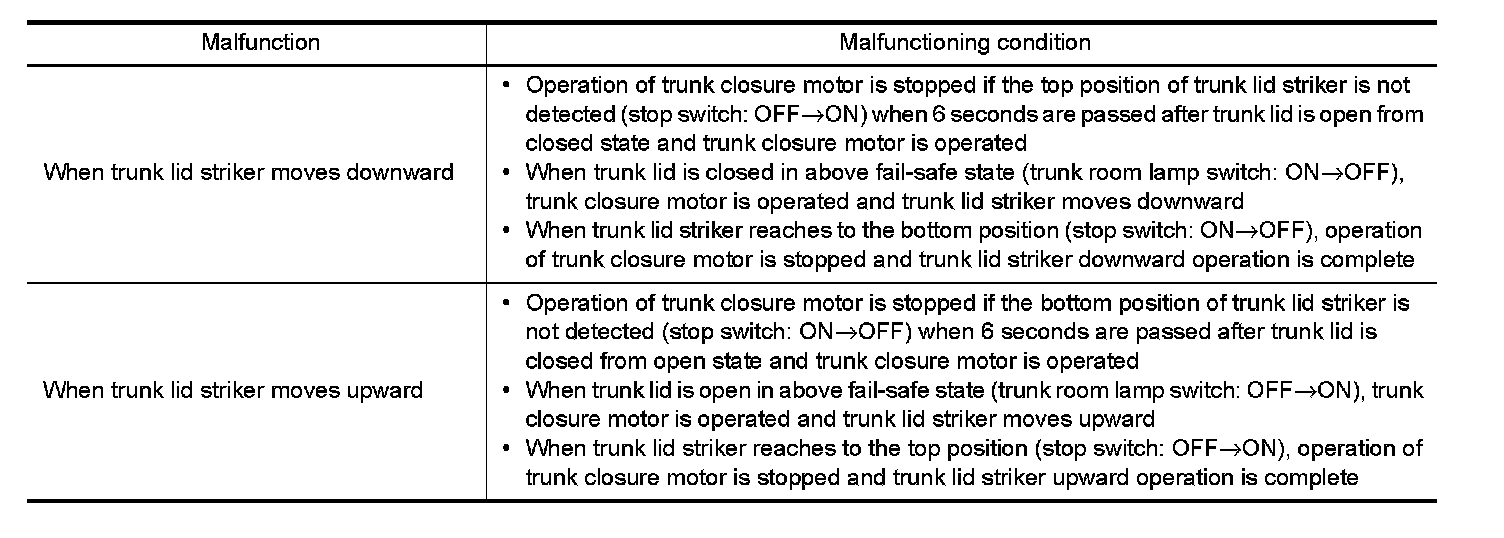

Fail-safe function is adopted to trunk lid auto closure system as per the following table.
