Roof




RETRACTABLE HARD TOP CONTROL UNIT

Fail-safe

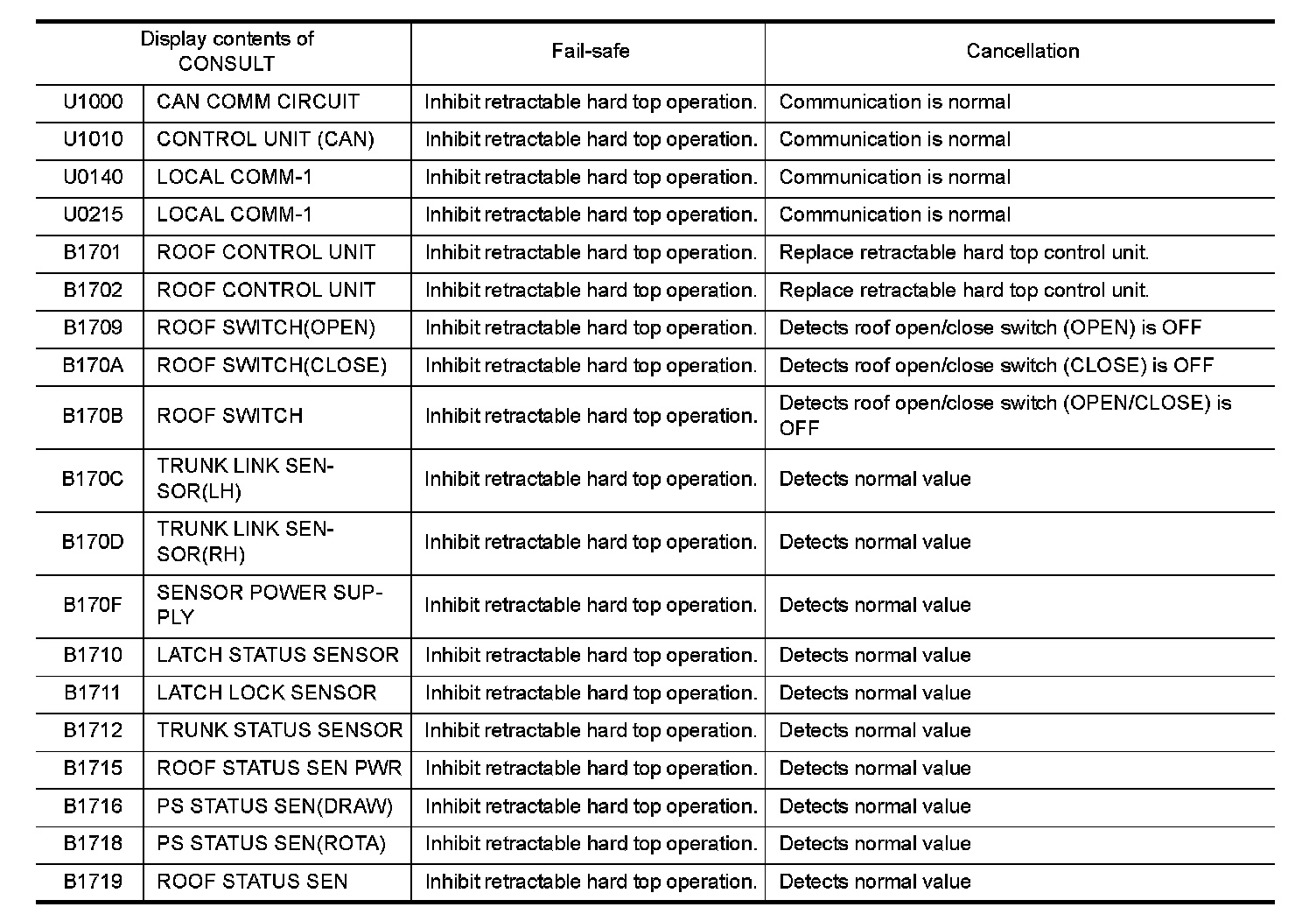

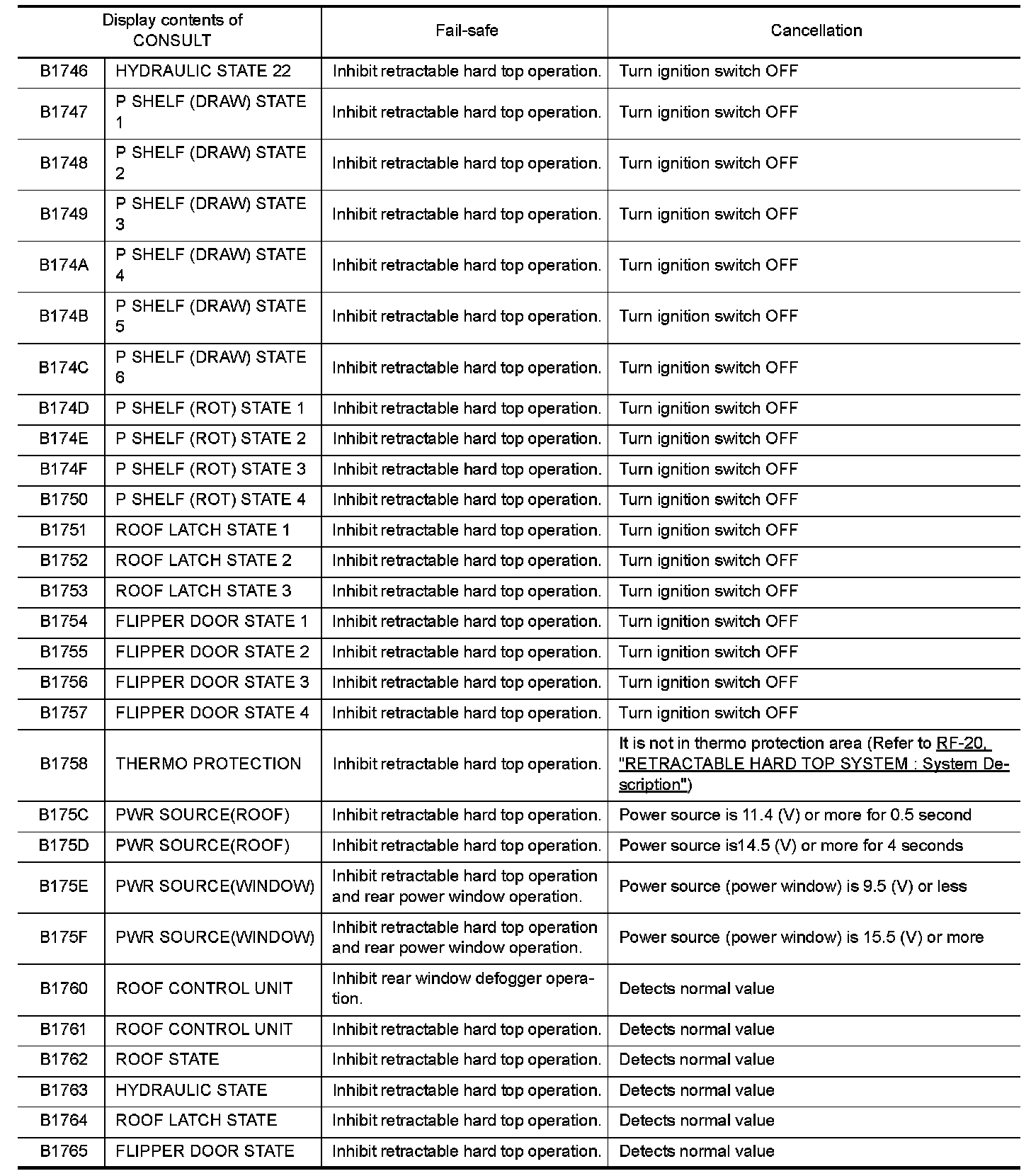

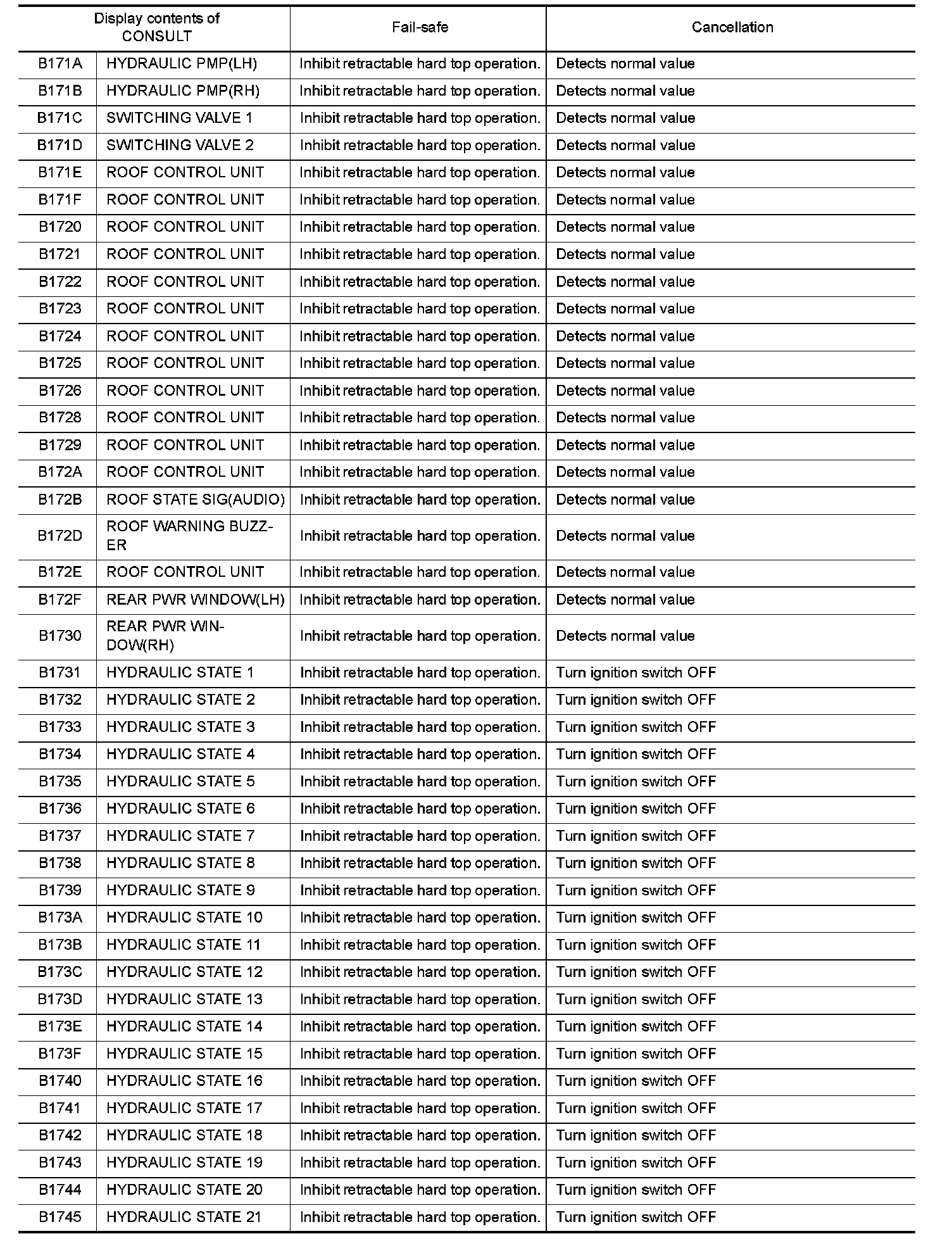

FAIL-SAFE CONTROL BY DTC

Retractable hard top control unit performs fail-safe control when any DTC are detected.
