Rear Roof Panel

REAR ROOF PANEL

Adjustment

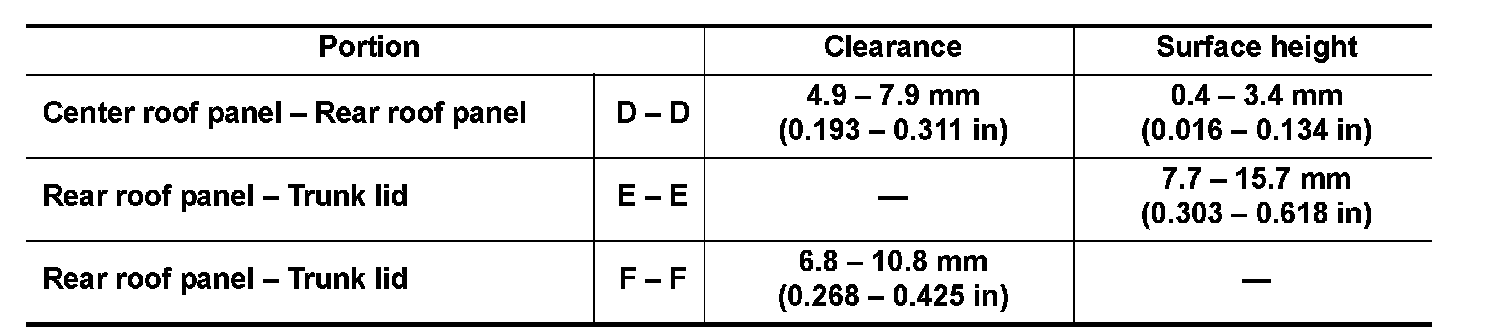

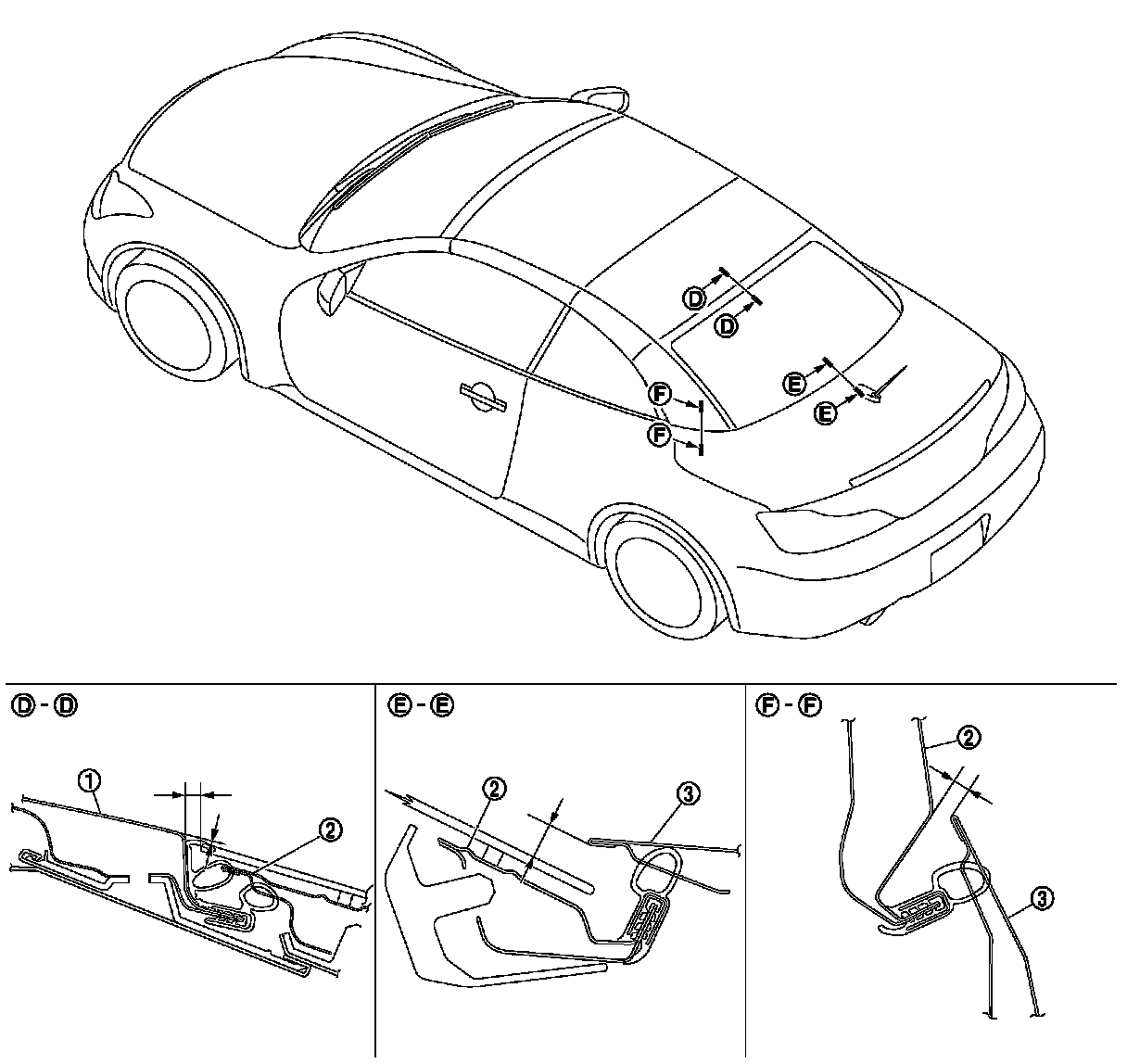

Check the clearance and the surface height between rear roof panel and each part by visually and touching.
If the clearance and the surface height are out of specification, adjust them according to the procedures shown below.

CAUTION:
Fully close roof. Check that front and rear lock is locked.





1.Remove headlining. Refer to "Removal and Installation" Removal and Installation.

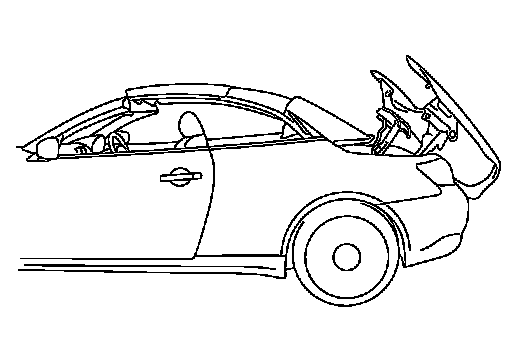

2.Stop roof as shown in the figure (during open operation).
3.Loosen rear roof panel mounting TORX bolt.
4.Adjust rear roof panel.
- If surface height difference is out of the specified value, and then adjust using shims.
- If clearance is out of the specified value, and slide rear roof panel to front or rear direction.
5.Tighten each TORX bolt to the specified torque. Refer to "Exploded View" Exploded View.

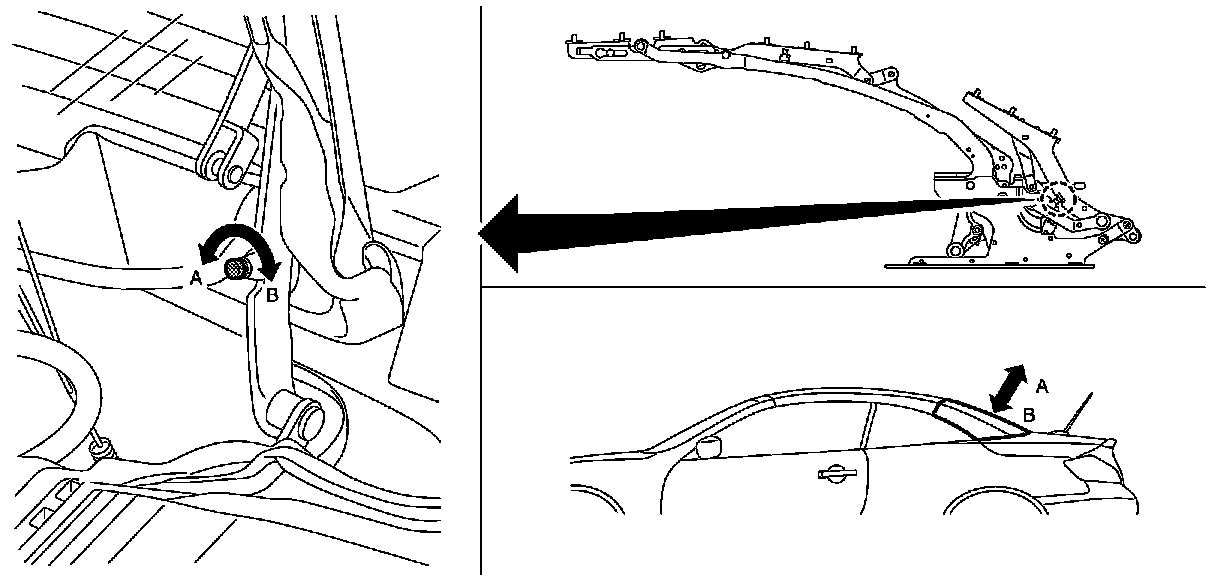

6.If shim adjustment is not completed normally, rotate the adjusting bolt of roof link assembly and adjust rear roof panel height.





7.Open and close roof. Check that lock and unlock operation is normal several times.
8.Perform initialization according to the work after adjusting rear roof panel. Refer to "Description" Description.
9.Adjust door glass and quarter window glass. Refer to "Inspection and Adjustment" Procedures.
10.Perform water leakage test. Refer to "Water Leakage Test" Water Leakage Test.
11.Install headlining. Refer to "Removal and Installation" Removal and Installation.
