Passenger Side Door Mirror Defogger

PASSENGER SIDE DOOR MIRROR DEFOGGER

Description

Heats the heating wire with the power supply from the rear window defogger relay to prevent the door mirror from fogging up.


Component Function Check


1. CHECK PASSENGER SIDE DOOR MIRROR DEFOGGER

1.Perform Active Test ("REAR DEFOGGER") with CONSULT.
2.Touch "ON".
3.Check that the passenger side door mirror glass is getting warmer.
Is the inspection result normal?
YES- Passenger side door mirror defogger is OK.
NO- Refer to "Diagnosis Procedure" .


Diagnosis Procedure


1. CHECK POWER SUPPLY CIRCUIT

1.Turn ignition switch OFF.
2.Disconnect door mirror (passenger side) connector.
3.Turn ignition switch ON.

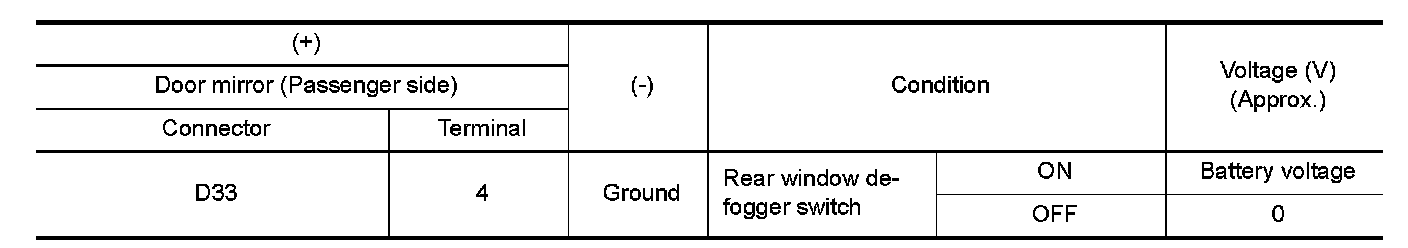

4.Check voltage between door mirror (passenger side) harness connector and ground.





Is the inspection result normal?
YES- GO TO 4.
NO- GO TO 2.

2. CHECK FUSE BLOCK (J/B) OUTPUT SIGNAL

1.Turn ignition switch OFF.
2.Disconnect fuse block (J/B) connector.
3.Turn ignition switch ON.

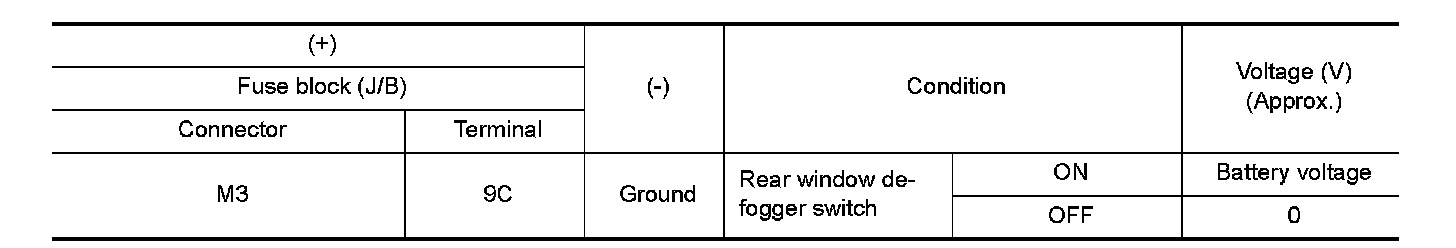

4.Check voltage between fuse block (J/B) harness connector and ground.





Is the inspection result normal?
YES- GO TO 3.
NO- Replace fuse block (J/B).

3. CHECK PASSENGER SIDE DOOR MIRROR DEFOGGER

1.Turn ignition switch OFF.

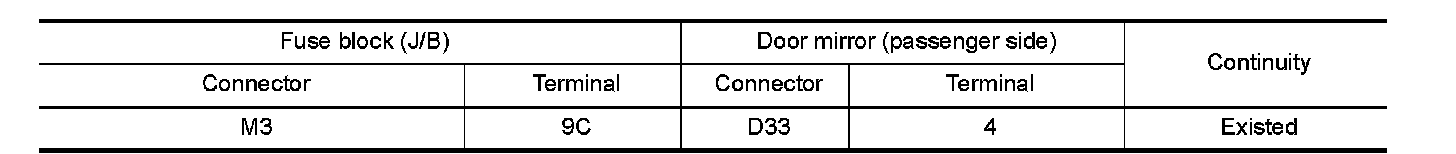

2.Check continuity between fuse block (J/B) harness connector and door mirror (passenger side) harness connector.

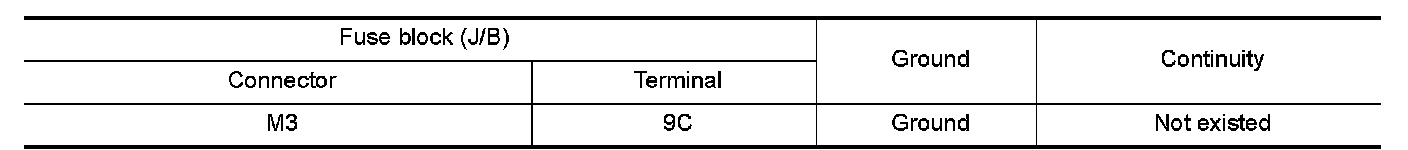

3.Check continuity between fuse block (J/B) harness connector and ground.





Is the inspection result normal?
YES- GO TO 6.
NO- Repair or replace harness.

4. CHECK GROUND CIRCUIT

1.Turn ignition switch OFF.

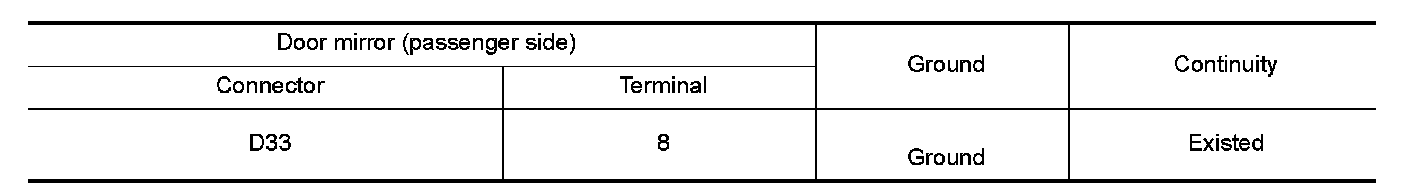

2.Check continuity between door mirror (passenger side) harness connector and ground.





Is the inspection result normal?
YES- GO TO 5.
NO- Repair or replace harness.

5. CHECK PASSENGER SIDE DOOR MIRROR DEFOGGER

Check passenger side door mirror defogger.
Refer to "Component Inspection"
Is the inspection result normal?
YES- GO TO 6.
NO- Replace door mirror (passenger side).Refer to "DOOR MIRROR ASSEMBLY : Removal and Installation" Removal and Installation

6. CHECK INTERMITTENT INCIDENT

Check intermittent incident.
Refer to "Intermittent Incident" Intermittent Incident
- INSPECTION END.


Component Inspection


1. CHECK PASSENGER DOOR MIRROR DEFOGGER

1.Turn ignition switch OFF.
2.Disconnect door mirror (passenger side) connector.

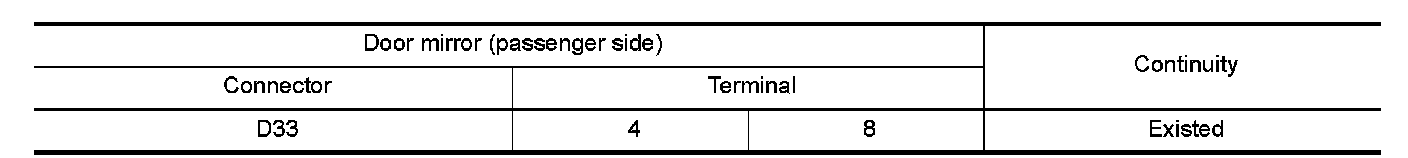

3.Check continuity between door mirror terminals.





Is the inspection result normal?
YES- INSPECTION END.
NO- Replace door mirror (passenger side). Refer to "DOOR MIRROR ASSEMBLY : Removal and Installation" Removal and Installation.
