Component Function Check

MIRROR SENSOR

PASSENGER SIDE : Component Function Check


1. CHECK FUNCTION

1.Turn ignition switch ON.
2.Select "MIR/SEN RH U-D", "MIR/SEN RH R-L" in the "Data monitor" using CONSULT.

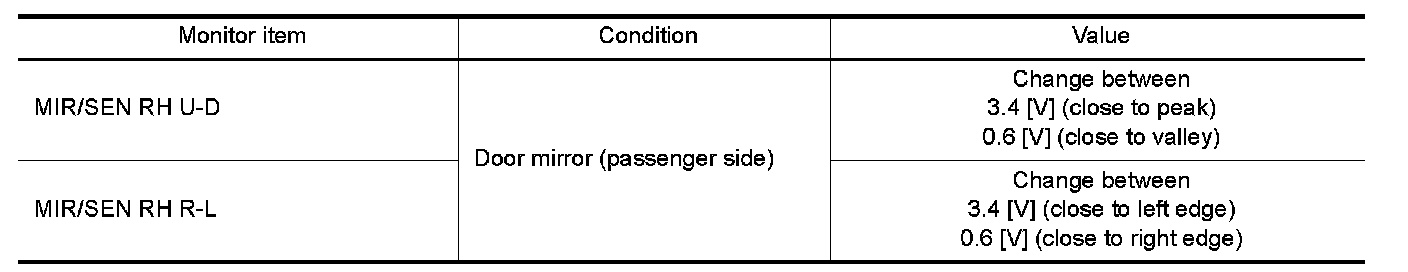

3.Check the mirror sensor (passenger side) signal under the following conditions.





Is the indication normal?
YES- INSPECTION END
NO- Perform diagnosis procedure. Refer to "PASSENGER SIDE : Diagnosis Procedure" Diagnosis Procedure.
