Memory Positioning Switch: Service and Repair

SEAT MEMORY SWITCH

Removal and Installation


REMOVAL


CAUTION:
When removing and installing, use shop cloths to protect parts from damage.





1.Remove front door finisher

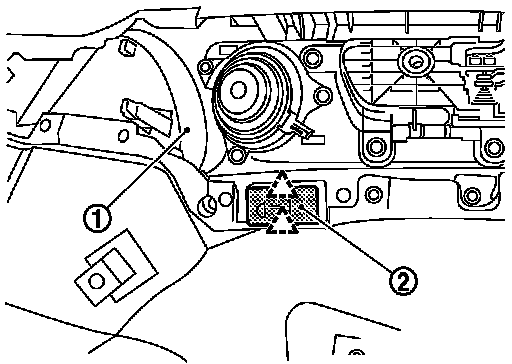

2.Press pawls and remove seat memory switch (2) from front door finisher (1).






INSTALLATION

Install in reverse order of removal.

CAUTION:
Be sure to clump the harness to the right place.
